<p>Make: Hardinge </p>
<p>Model: HLV-H</p>
<p>Serial No: HLV-H-3045</p>

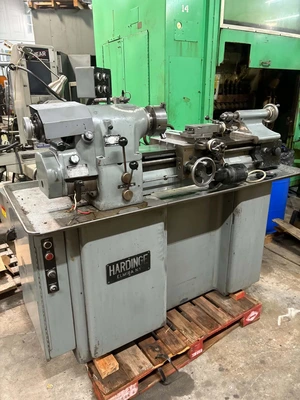

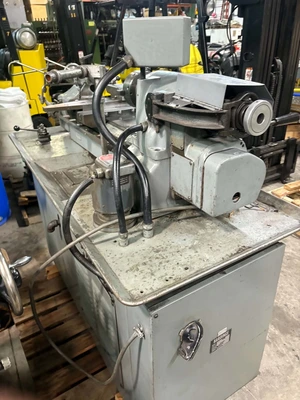

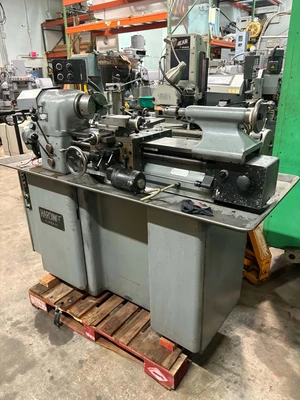

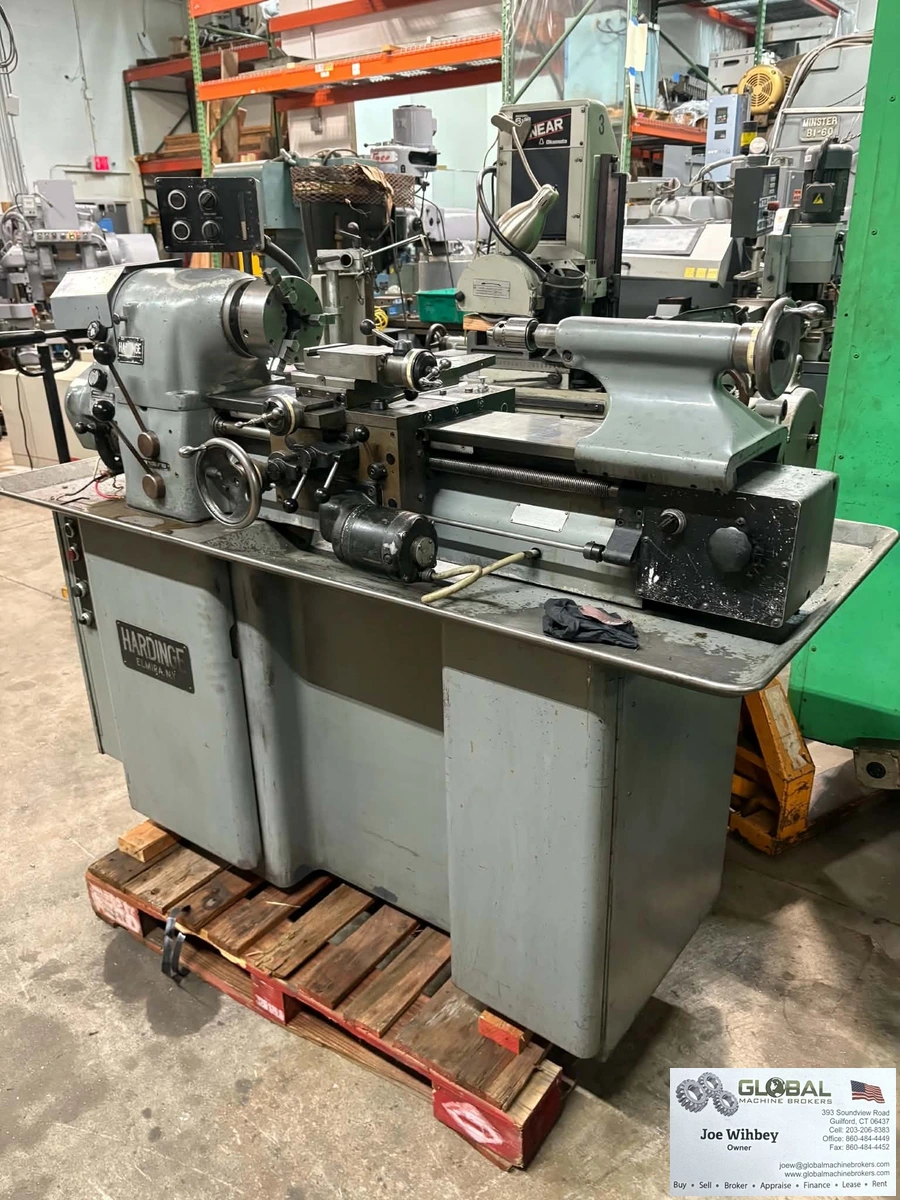

<p>Year New: 1965</p><p>Condition: Used, overall in great shape. Has been tested and Ran. We will be getting video soon. </p><p></p><p><!--StartFragment--><strong><b>1965 Hardinge HLV-H Super-Precision Toolroom Lathe</b></strong><!--EndFragment--></p><!--StartFragment-->Spindle & Headstock<!--TgQPHd|||[[2,[null,null,null,null,null,null,null,null,null,null,null,null,[351768,null,0]],[],null,1]]-->

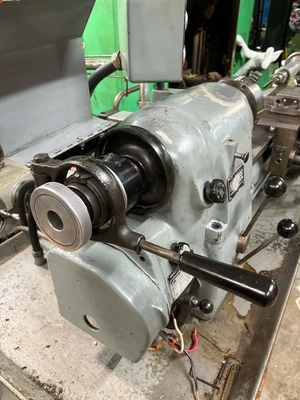

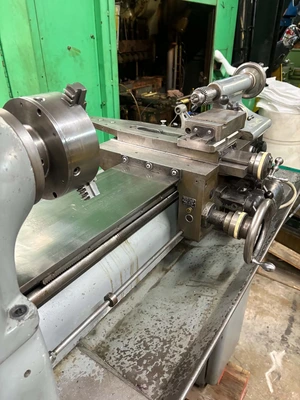

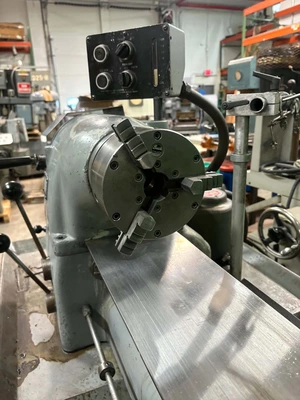

<ul><li><strong>Spindle Nose:<!--TgQPHd|||[]--></strong> Hardinge standard 4° taper nose<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Capacity (With 5C Collets):<!--TgQPHd|||[]--></strong> 1-1/16 in round<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Bore:<!--TgQPHd|||[]--></strong> 1-1/4 in through-hole<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Capacity (With Jaw Chucks):<!--TgQPHd|||[]--></strong> 5 in standard chuck capacity<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Speed (Infinitely Variable):<!--TgQPHd|||[]--></strong> 125 to 3,000 RPM</li></ul><!--StartFragment-->Workpiece Capacity<!--TgQPHd|||[[2,[null,null,null,null,null,null,null,null,null,null,null,null,[351768,null,0]],[],null,1]]-->
<ul><li><strong>Swing Over Bed:<!--TgQPHd|||[]--></strong> 11 in<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Swing Over Carriage:<!--TgQPHd|||[]--></strong> 9 in<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Swing Over Cross Slide:<!--TgQPHd|||[]--></strong> 6 in<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Distance Between Centers:<!--TgQPHd|||[]--></strong> 18 in</li></ul><!--StartFragment-->Threading & Feeds<!--TgQPHd|||[[2,[null,null,null,null,null,null,null,null,null,null,null,null,[351768,null,0]],[],null,1]]-->

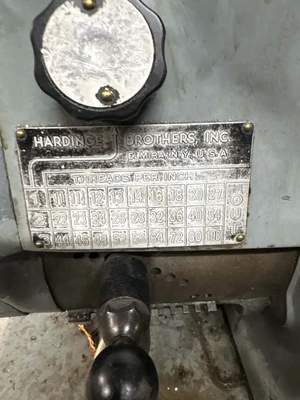

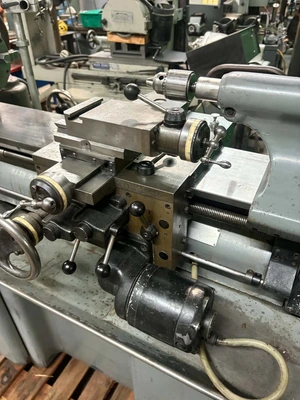

<ul><li><strong>Threading Gearbox:<!--TgQPHd|||[]--></strong> Quick-change, independent engagement (only functions when threading)<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Standard Inch Threading Range:<!--TgQPHd|||[]--></strong> 11 to 108 TPI (via 27 selectable gears)<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Power Feeds:<!--TgQPHd|||[]--></strong> Driven by an independent DC electrical variable speed motor (separates cutting feed from mechanical leadscrew wear)<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Feed Travel Rates:<!--TgQPHd|||[]--></strong> Infinitely variable from 5/16 in to 7 in per minute</li></ul><!--StartFragment-->Tailstock<!--TgQPHd|||[[2,[null,null,null,null,null,null,null,null,null,null,null,null,[351768,null,0]],[],null,1]]-->

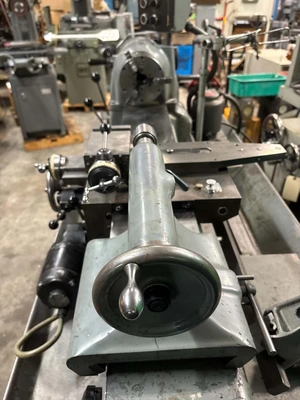

<ul><li><strong>Internal Taper:<!--TgQPHd|||[]--></strong> Morse Taper No. 2 (2MT)<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Diameter:<!--TgQPHd|||[]--></strong> 1-3/8 in<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Travel:<!--TgQPHd|||[]--></strong> 3-3/4 in</li></ul><!--StartFragment-->Mechanical & Physical Footprint<!--TgQPHd|||[[2,[null,null,null,null,null,null,null,null,null,null,null,null,[351768,null,0]],[],null,1]]-->

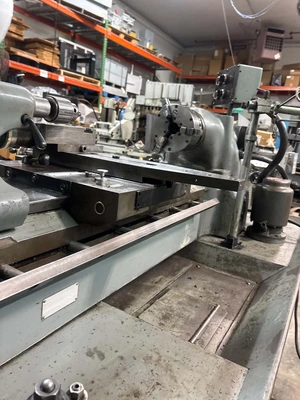

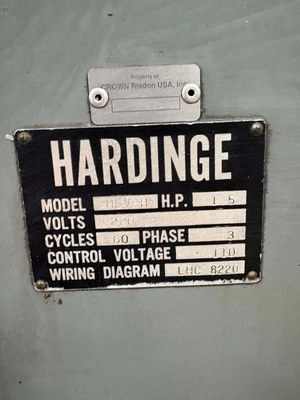

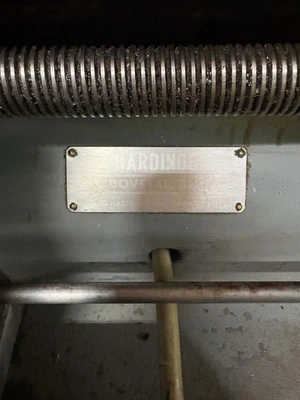

<ul><li><strong>Bed Design:<!--TgQPHd|||[]--></strong> Solid hardened and ground tool steel dovetail ways<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Bed Width:<!--TgQPHd|||[]--></strong> 5 in<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Approximate Weight:<!--TgQPHd|||[]--></strong> ~1,700 to 2,000 lbs<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Cabinet Footprint:<!--TgQPHd|||[]--></strong> Roughly 68 in L x 30 in W x 58 in H</li></ul><p>Electrics:</p><ul><li>1.5HP </li><li>220 Volts</li><li>60hz</li><li>3 phase</li></ul>
