<p>Make: Clausing Colchester </p>
<p>Model: 13" </p>
<p>Condition: Used, overall in fair shape. BROKEN FORWARD FEED GEAR. <!--StartFragment--><!--StartFragment--> Lathe power feed doesn’t work cutting left to right but does work in reverse.<!--EndFragment--><!--EndFragment--></p>
<p>Comes with some tooling:</p>

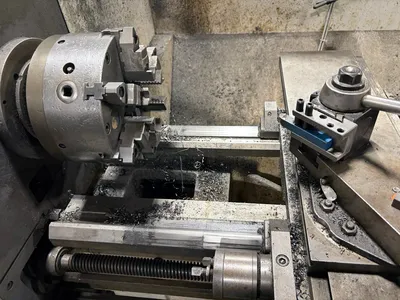

<ul><li>6 Jaw Chuck</li><li>Quick Change Tool Post holder</li></ul>
<p></p>
<!--StartFragment-->Machine Overview<!--TgQPHd|||[]-->
<ul><li><strong>Manufacturer:<!--TgQPHd|||[]--></strong> Clausing Industrial / Colchester Lathe Company<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Type:<!--TgQPHd|||[]--></strong> Precision geared head engine/center lathe<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Key Components:<!--TgQPHd|||[]--></strong> Headstock, quick-change gearbox, saddle with apron handwheel, cross-slide, tool post, and tailstock</li></ul>
<div><br></div>
<p></p>
<p>Specifications (SUBJECT TO VERIFICATION): </p>
<!--StartFragment-->Core Technical Specifications<!--TgQPHd|||[]-->
<ul><li><strong>Swing Over Bed<!--TgQPHd|||[]--></strong>: 13.0 inches (approximately 13.75" maximum clearance)<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Distance Between Centers<!--TgQPHd|||[]--></strong>: Typically offered in 25-inch, 36-inch, or 40-inch configurations<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Bore Diameter<!--TgQPHd|||[]--></strong>: 1.625 to 1.65 inches (clears up to 1-5/8" bar stock)<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Nose Mount<!--TgQPHd|||[]--></strong>: D1-4 Camlock style<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Speed Range<!--TgQPHd|||[]--></strong>: Geared steps varying from 30 RPM up to 2,500 RPM<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Tailstock Taper<!--TgQPHd|||[]--></strong>: No. 4 Morse Taper (4 MT) with roughly 6 inches of travel<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Drive Motor<!--TgQPHd|||[]--></strong>: 10HP</li></ul>

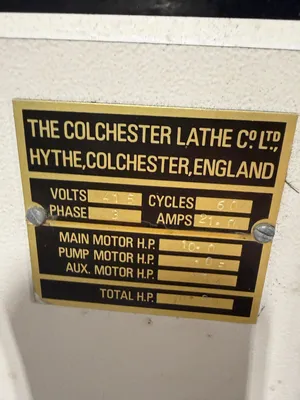

<p>Electrics: 415v 60hz 3ph 21A</p>
