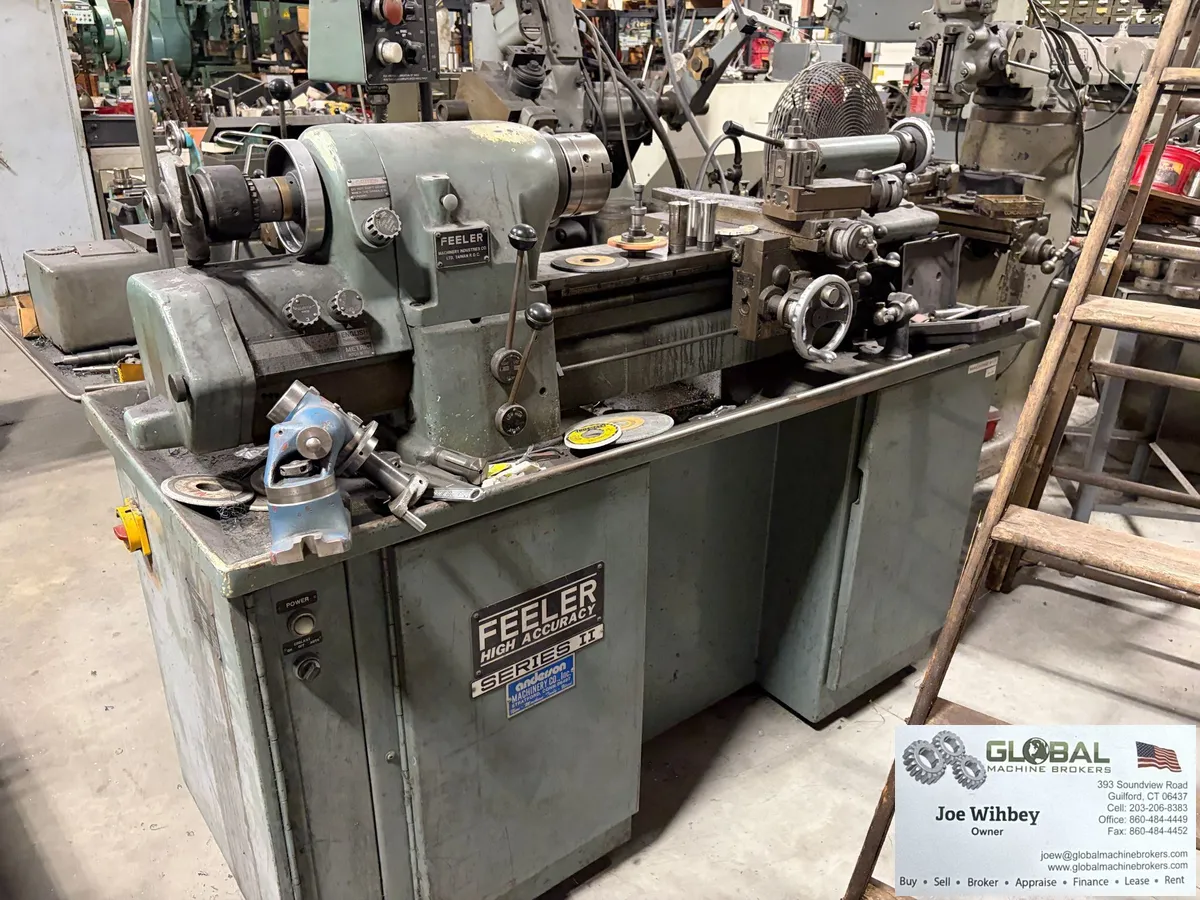

<p>Make: Feeler (Hardinge Clone)</p>
<p>Model: Series II <!--StartFragment-->FTL-618E<!--EndFragment--> Or <!--StartFragment-->FTL-618E<!--EndFragment-->M - Please Verify Before purchase.</p>
<p>Condition: Used, overall in good shape. </p>
<p>Comes with Some tooling: </p>

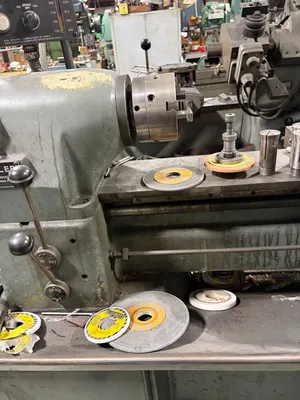

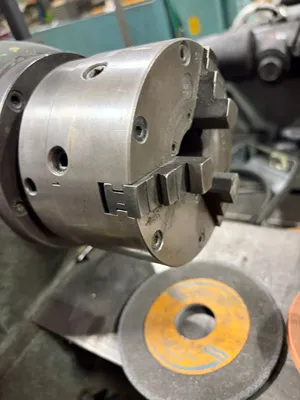

<ul><li>Tool Post Holder</li><li>3 Jaw Chuck</li><li>Tool And Cutter Grinder Fixture and Collets </li></ul>
<p></p>
<p>Features (SUBJECT TO VERIFICATION BEFORE PURCHASE): </p>

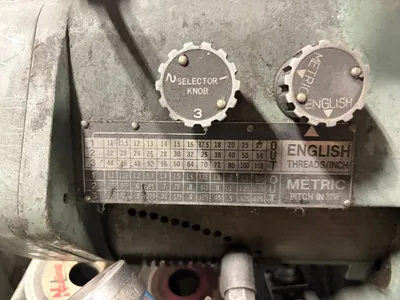

<!--StartFragment--><li><strong>Dual Gearboxes:<!--TgQPHd|||[]--></strong> The left side houses the dual-dial selector for setting thread pitches and feed rates.<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Hardened Bedways:<!--TgQPHd|||[]--></strong> Features the distinctive wide, solid dovetail bedway designed for maximum rigidity and tracking accuracy.<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Variable Speed Controls:<!--TgQPHd|||[]--></strong> The push-button speed controls and RPM indicator dial are located on the main headstock housing.</li><!--StartFragment--><br>Capacity & Dimensions<!--TgQPHd|||[]-->
<ul><li><strong>Swing Over Bed:<!--TgQPHd|||[]--></strong> 11 inches<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Swing Over Cross Slide:<!--TgQPHd|||[]--></strong> 6 inches<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Swing Over Carriage:<!--TgQPHd|||[]--></strong> 9 inches<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Distance Between Centers:<!--TgQPHd|||[]--></strong> 18 inches<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Overall Dimensions:<!--TgQPHd|||[]--></strong> Approx. 70" L x 30" W x 63" H<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Approximate Weight:<!--TgQPHd|||[]--></strong> 1,800 to 2,300 lbs (depending on the specific fluid tank and cast base setup</li></ul>
<!--StartFragment-->Headstock & Spindle<!--TgQPHd|||[]-->
<ul><li><strong>Spindle Capacity:<!--TgQPHd|||[]--></strong> 5C Collet standard + Chuck</li><li><strong>Hole Through Spindle:<!--TgQPHd|||[]--></strong> 1-1/4 inches<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Speed:<!--TgQPHd|||[]--></strong> Infinitely variable from 135 to 2,955 RPM<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Motor:<!--TgQPHd|||[]--></strong> Dual speed, typically 1.5 HP / 1 HP</li></ul>
<!--StartFragment-->Feeds & Threading<!--TgQPHd|||[]-->

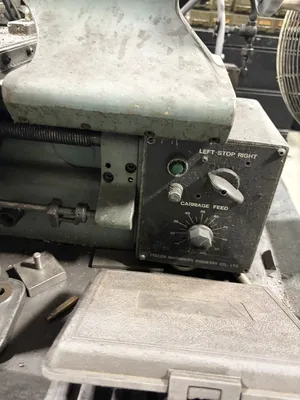

<ul><li><strong>Carriage Power Feed Range:<!--TgQPHd|||[]--></strong> Variable from 5/16 to 7 inches per minute (IPM)<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Cross Slide Power Feed Range:<!--TgQPHd|||[]--></strong> Variable from 3/16 to 4 IPM<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Gearbox Configuration:<!--TgQPHd|||[]--></strong> Combined Dual Metric and English quick-change gearbox<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Thread Pitch Range (Inch):<!--TgQPHd|||[]--></strong> 11 to 108 TPI (27 selections)</li></ul>
<!--StartFragment-->Tailstock<!--TgQPHd|||[]-->
<ul><li><strong>Tailstock Spindle Taper:<!--TgQPHd|||[]--></strong> Morse Taper No. 2 (MT2)<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Tailstock Quill Travel:<!--TgQPHd|||[]--></strong> 3-3/4 inches</li></ul>
