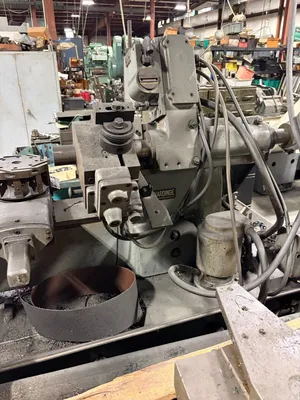

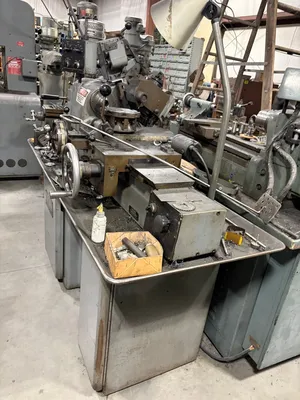

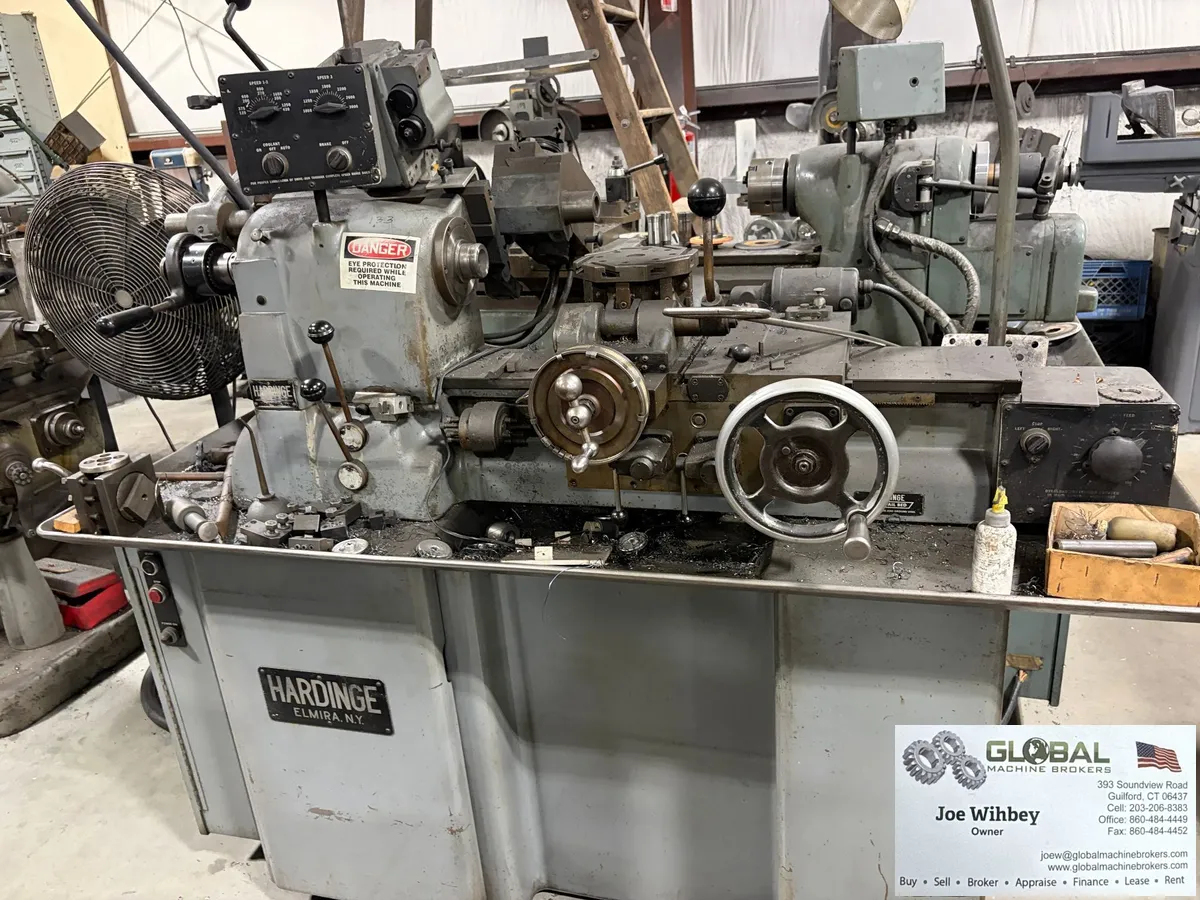

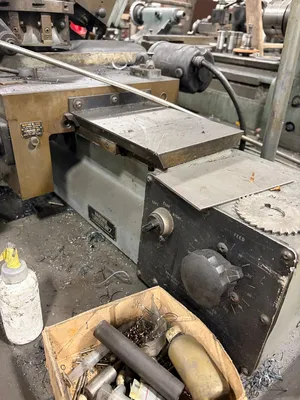

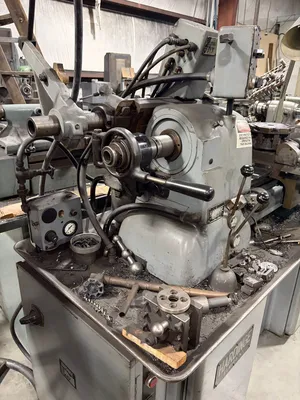

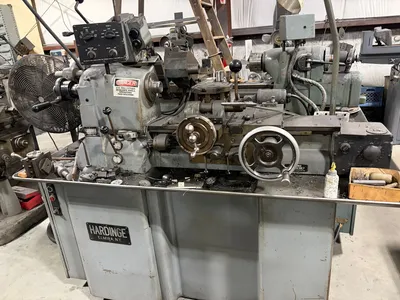

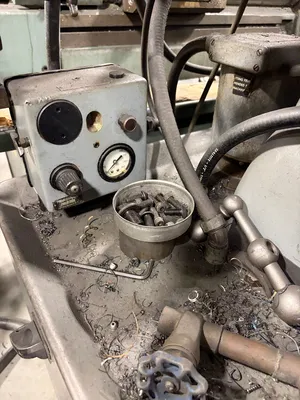

<p>Make: Hardinge</p><p>Model: HC ? We do not have the specific Model number but we will get it for a serious buyer.</p><p>Condition: Used, overall in good shape. Comes with some tooling, See pictures.</p><p></p><p>These specifications are regarding an HC Model. Please reach out and verify. </p><p><!--StartFragment-->Precision chucker and turret lathe designed for high-accuracy second-operation work.<!--EndFragment--></p><p></p><!--StartFragment-->Spindle & Capacity<!--TgQPHd|||[]-->

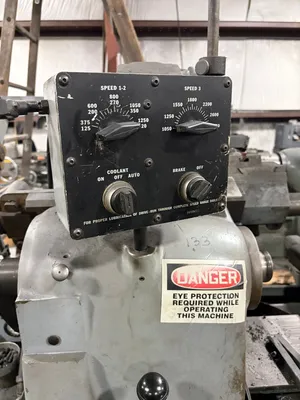

<ul><li><strong>Maximum Fixture Diameter:<!--TgQPHd|||[]--></strong> 9″<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Standard Chuck Capacity:<!--TgQPHd|||[]--></strong> 6″<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>5C Collet Capacity (Round):<!--TgQPHd|||[]--></strong> 1-1/16″<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>5C Collet Capacity (Hexagon):<!--TgQPHd|||[]--></strong> 7/8″<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>5C Collet Capacity (Square):<!--TgQPHd|||[]--></strong> 3/4″<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Step Chuck Capacity:<!--TgQPHd|||[]--></strong> 1-1/16″ to 6″<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Nose Thread:<!--TgQPHd|||[]--></strong> 2-3/16″ – 10 R.H.<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Nose Diameter:<!--TgQPHd|||[]--></strong> 2.189″</li><!--StartFragment--></ul><div><br></div><div>Speeds & Feeds</div><ul><!--TgQPHd|||[]--><ul><li><strong>Spindle Speed Range:<!--TgQPHd|||[]--></strong> Infinitely variable from 125 to 3,000 RPM<!--TgQPHd|||[]--><ul><li><em>Low Range:<!--TgQPHd|||[]--></em> 125 to 1,100 RPM<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><em>High Range:<!--TgQPHd|||[]--></em> 1,100 to 3,000 RPM<!--TgQPHd|||[]--> <!--TgQPHd|||[]--></li></ul><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Carriage Power Feed Range:<!--TgQPHd|||[]--></strong> 1/4″ to 10″ per minute<!--TgQPHd|||[]--> <!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Cross Slide Power Feed Range:<!--TgQPHd|||[]--></strong> 11/32″ to 6-1/4″ per minute</li></ul><!--EndFragment--></ul><!--StartFragment-->Turret & Travel<!--TgQPHd|||[]-->

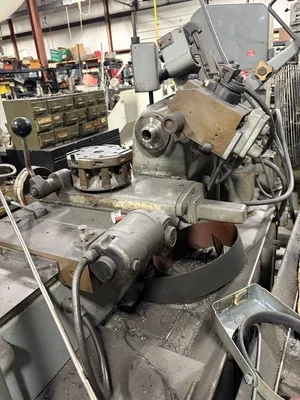

<ul><li><strong>Turret Stations:<!--TgQPHd|||[]--></strong> 8-position cross-feeding turret<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Cross Slide Travel:<!--TgQPHd|||[]--></strong> 4-1/2″<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Maximum Distance (Spindle to Turret Face):<!--TgQPHd|||[]--></strong> 13″</li></ul><!--StartFragment-->Footprint & Power<!--TgQPHd|||[]--><ul><li><strong>Motor:<!--TgQPHd|||[]--></strong> 220V / 230V, 3-Phase, 60 Hz<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Approximate Weight:<!--TgQPHd|||[]--></strong> 1,750 lbs<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Dimensions:<!--TgQPHd|||[]--></strong> 72″ L x 28″ W x 64″ H</li></ul><!--EndFragment-->
