<p>Make: Victor </p>
<p>Model: 1660G </p>

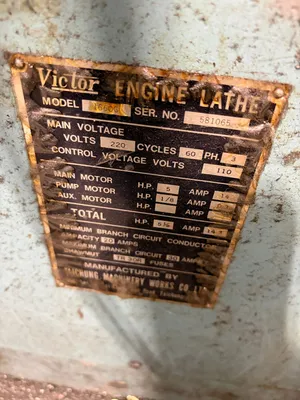

<p>Serial No: 581065</p>
<p>Condition: Used, overall in great shape. </p>
<p>Comes with lots of tooling</p>

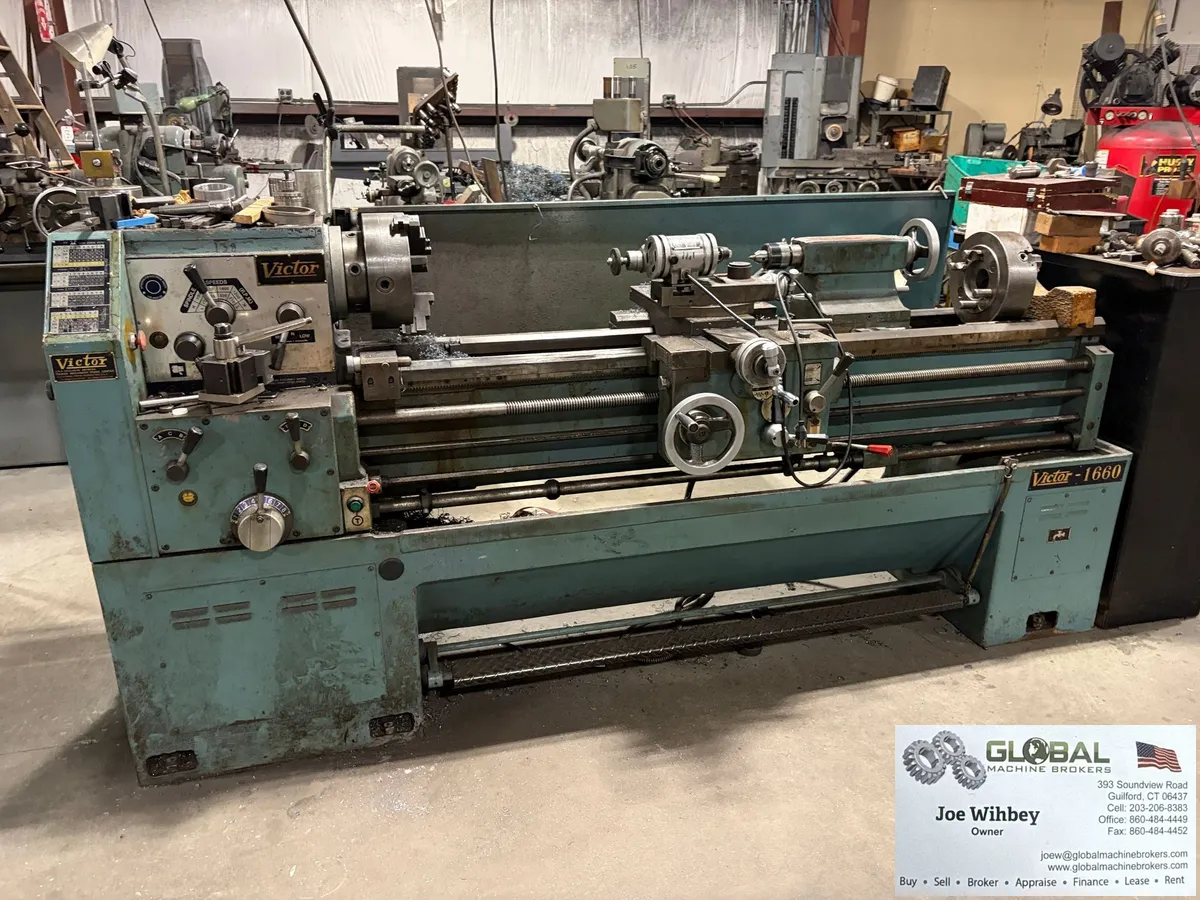

<ul><li>3 Jaw Chuck </li><li>4 jaw Chuck </li><li>Tool post holder</li><li>Tool post grinder</li></ul><div>Heavy Duty Manual Gap Bed Engine Lathe </div><p></p><p>Specifications: </p><ul><li>Swing over Bedways: 16"</li><li>Swing over cross slide: 9.5"</li><li>Swing through removable gap: 23.5"</li><li>Distance Between Centers: 60" </li><li>Width of Bedways: 11.75"</li></ul><p><br></p><p>Headstock And Spindle Assembly: </p><!--StartFragment--><li><strong>Main Drive Motor<!--TgQPHd|||[]--></strong>: Powered by a heavy-duty <strong>7.5 HP<!--TgQPHd|||[]--></strong> (5.6 kW) 3-phase spindle motor.<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Bore<!--TgQPHd|||[]--></strong>: Large <strong>2-1/4 inch clear through-hole<!--TgQPHd|||[]--></strong> for passing oversized bar stock.<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Nose Mounting<!--TgQPHd|||[]--></strong>: Standardized <strong>D1-6 Camlock<!--TgQPHd|||[]--></strong> setup for rigid chuck clamping.<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Speed Range<!--TgQPHd|||[]--></strong>: Geared-head design featuring 12 stepping gear speeds running from <strong>35 to 1,800 RPM<!--TgQPHd|||[]--></strong> (up to 2,000 RPM on newer 'E' variations).<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Internal Taper<!--TgQPHd|||[]--></strong>: Morse Taper No. 6 (MT#6) inside the main spindle.</li><p></p><p>Quick Change Gear Box: </p><!--StartFragment--><li><strong>Inch Threading Range<!--TgQPHd|||[]--></strong>: Cuts 45 distinct pitches ranging from <strong>2 to 72 TPI<!--TgQPHd|||[]--></strong>.<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Metric Threading Range<!--TgQPHd|||[]--></strong>: Cuts 40 distinct pitches ranging from <strong>0.2 to 14 mm<!--TgQPHd|||[]--></strong>.<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Longitudinal Power Feeds<!--TgQPHd|||[]--></strong>: Variable feed rates running from <strong>0.002" to 0.047" per revolution<!--TgQPHd|||[]--></strong>.<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Cross Power Feeds<!--TgQPHd|||[]--></strong>: Variable feed rates running from <strong>0.0006" to 0.017" per revolution<!--TgQPHd|||[]--></strong>.<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Leadscrew Pitch<!--TgQPHd|||[]--></strong>: Precision 4 TPI ground leadscrew</li><!--EndFragment-->
