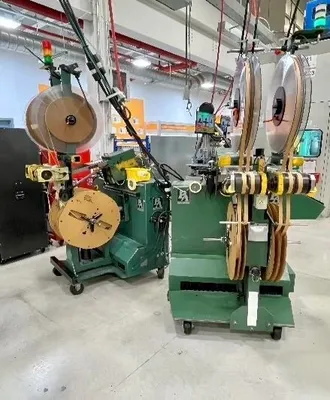

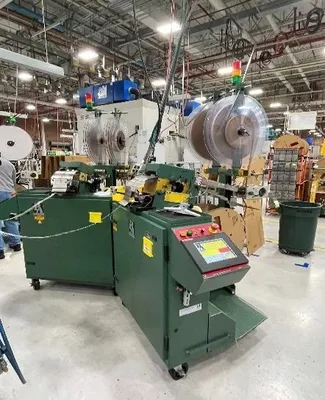

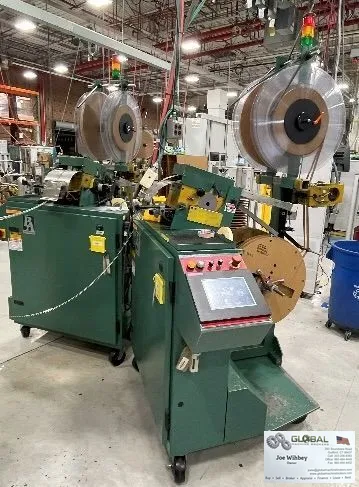

<p>PA Industries WR36-4 Continuous Programmable Take Up Reeles</p>
<p>Info right from PA Site below:<br></p>
<h2>Ideally Suited for Continuous Stamping, Plating, and Molding</h2>
<p><strong>Ideally Suited for Continuous Stamping, Plating, and Molding</strong><br>These compact, high-speed units perform automatic reel changes based upon the programmed number of parts per pancake spool. Paper Interleaf, Non-contact Infrared Loop Control, Sample Part Ejection, and Storage Tray, Job Storage, and High-Speed Parts Counter are just some of the standard features on these units.</p>
<p>Operator interface is minimal. These units automatically thread the material and index from full reel to empty, as well as wrap the full reels with interleaf in preparation for removal. A sample is cut between parts and ejected before the cycle repeats.</p><p>These are used with high speed stamping presses like Bruderer and Minster brands.</p>
<p>* 4 Reels </p>
<p>* Max Strip Width: 3.5"<br></p>
<p>* Max coil paper OD: 24"</p>
<p>* Max spool width: 3.5" </p>
<p>* Max spool OD: 36"</p>
<p>* Max winding speed: 980 ipm</p>
<p>* DC Drive Motor 1/4 hp</p>
<p>* 120 Volt, 60 Hz, single phase</p>
