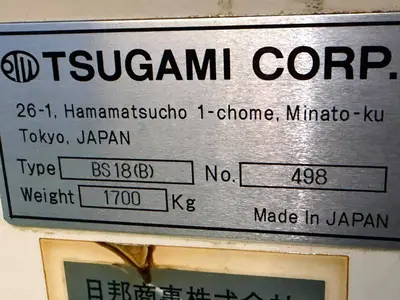

<p><strong>Make:</strong> Tsugami<br>
<strong>Model:</strong> BS-16B<br>
<strong>Serial No.:</strong> 498</p>
<p><strong>Condition:</strong> Used, overall in great shape. Can be seen under power.</p>
<p><strong>Location:</strong> Japan. CAN BE SHIPPED TO OUR HEADQUARTERS IN GUILFORD CT, 06437. REACH OUT </p>
<h3>Complete System Includes</h3>
<ul>
<li>

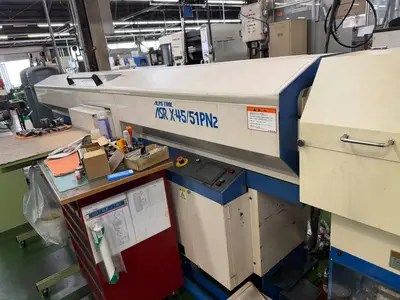

Alps Tool ASR X-45/51PN2 automatic oil-magazine bar feeder
</li>
<li>

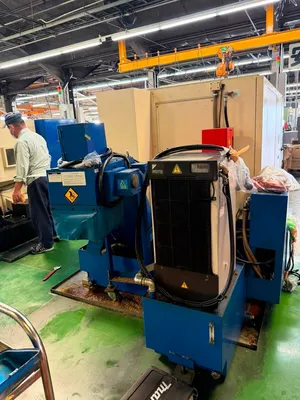

High-pressure coolant system
</li>
<li>
Chip conveyor
</li>
<li>
Part extraction conveyor
</li>
<li>
No tooling included
</li>
</ul>

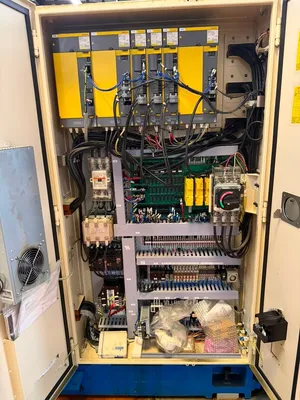

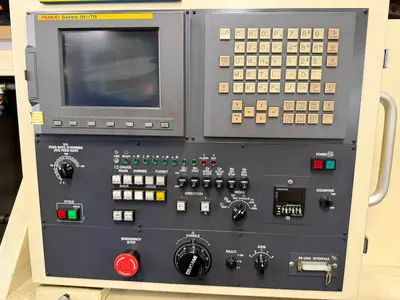

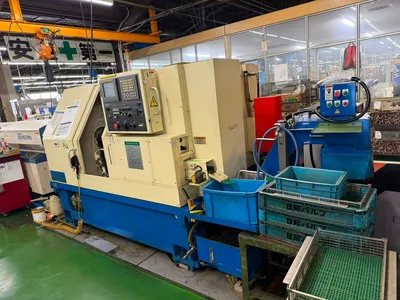

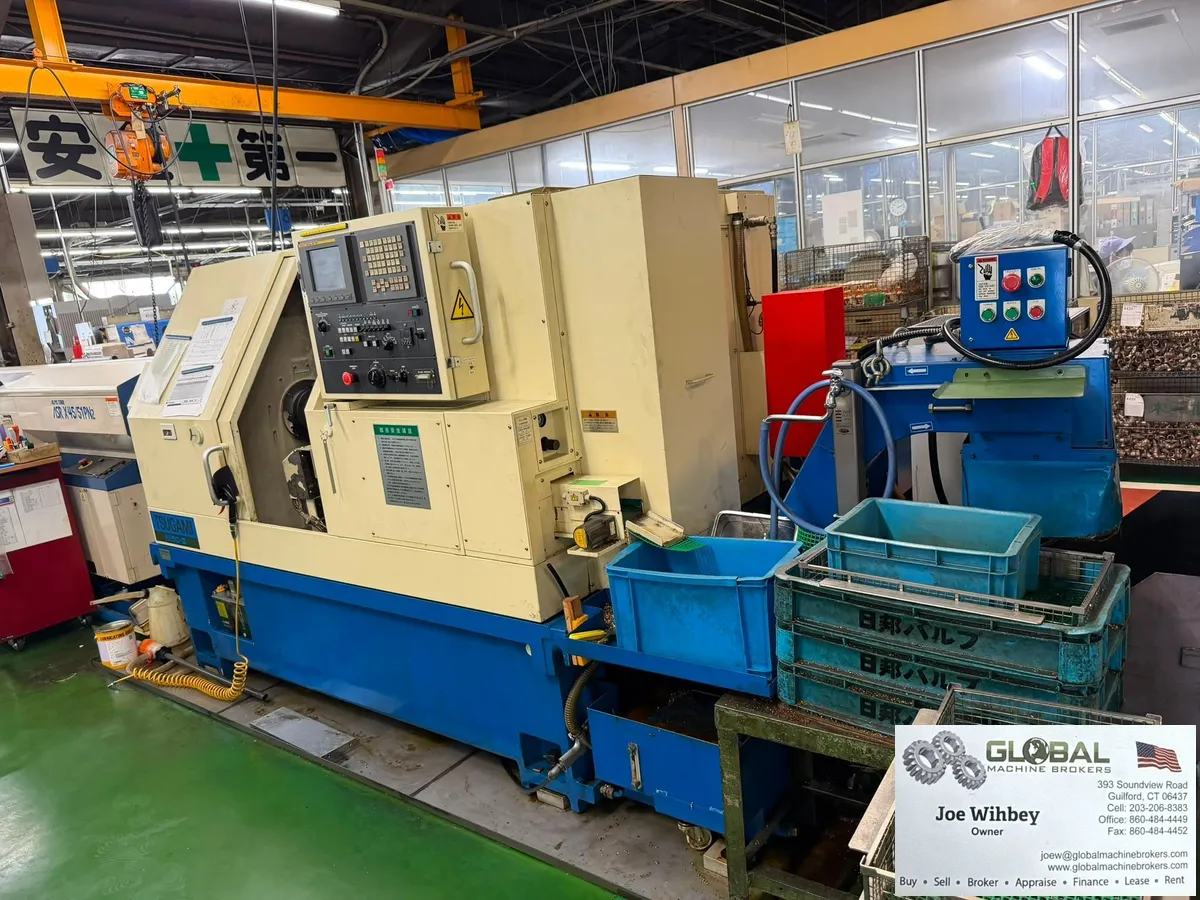

<p>The Tsugami BS-16B is a high-precision 5-axis CNC Swiss-type automatic lathe built for high-volume production of small, complex components. Equipped with a dual-spindle design for simultaneous front and back machining, it helps reduce cycle times while maintaining excellent accuracy. Features reliable Fanuc 18i-TB controls.</p>
<h3>Specifications</h3>
<ul>
<li>
Maximum bar capacity: 18 mm (0.709")
</li>
<li>
Maximum machining length: 210 mm (8.26")
</li>
<li>
Main spindle drilling: 7 mm
</li>
<li>
Main spindle tapping: M6 x 1.0
</li>
<li>
Cross drilling: 6 mm
</li>
<li>
Cross tapping: M5 x 0.8
</li>
</ul>
<h3>Spindles</h3>
<ul>
<li>
Main spindle: 200-10,000 RPM, 5 HP
</li>
<li>
Main spindle indexing: 15° increments
</li>
<li>
Sub-spindle capacity: 18 mm
</li>
<li>
Sub-spindle: 200-8,000 RPM, 0.7 HP (1.1 kW)
</li>
<li>
Back spindle drilling: 6 mm
</li>
<li>
Back spindle tapping: M5 x 0.8
</li>
</ul>
<h3>Axes & Motion</h3>
<ul>
<li>
5 controlled axes: X1, Z1, A, X2, Z2
</li>
<li>
Rapid traverse: 18 m/min (X), 12 m/min (Z)
</li>
</ul>

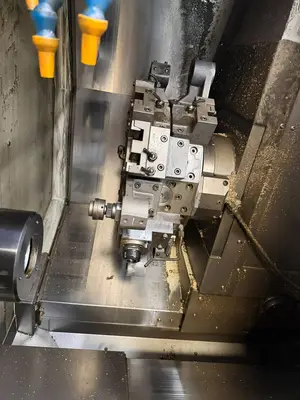

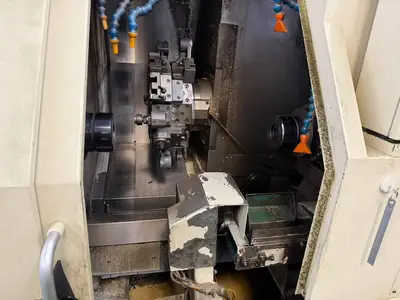

<h3>Tool Capacity</h3>
<ul>
<li>
16 tool positions
</li>
<li>
12 x 12 x 85 mm tool shank
</li>
<li>
7-10 turning tools
</li>
<li>
3 live cross-drilling/milling tools
</li>
<li>
3 front ID tools
</li>
<li>
2-3 back ID tools
</li>
</ul>
<h3>Machine Dimensions</h3>
<ul>
<li>
Footprint: 73" x 45.3" x 67" (1770 x 1150 x 1685 mm)
</li>
<li>
Weight: Approx. 4,850 lbs (2,200 kg)</li></ul><ul></ul>
