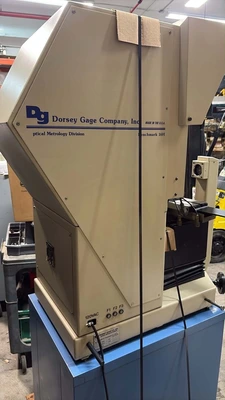

<p>Make: Dorsey Gage Co. Optical Metrology Division</p>
<p>Model: 16H</p>

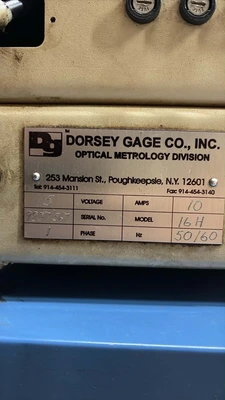

<p>Serial No: 9807/567</p>

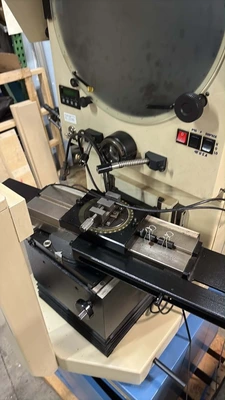

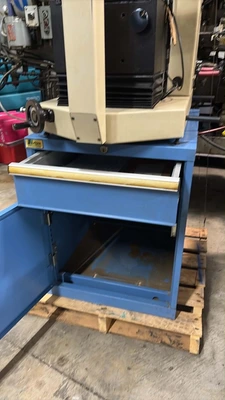

<p>Condition: Used, overall in great shape. Clean and Ready To Work. Made in USA</p><p>Can be Sold with Cabinet or without.</p><p>Comes with Rotatable Vise Fixture </p><p></p>

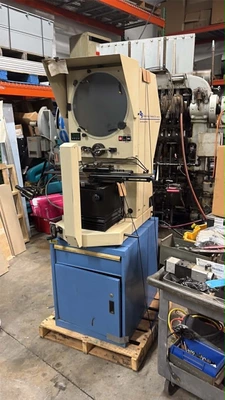

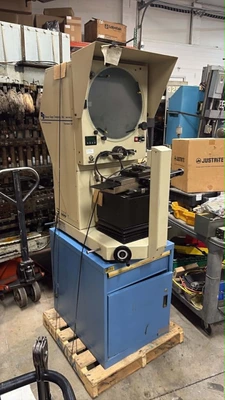

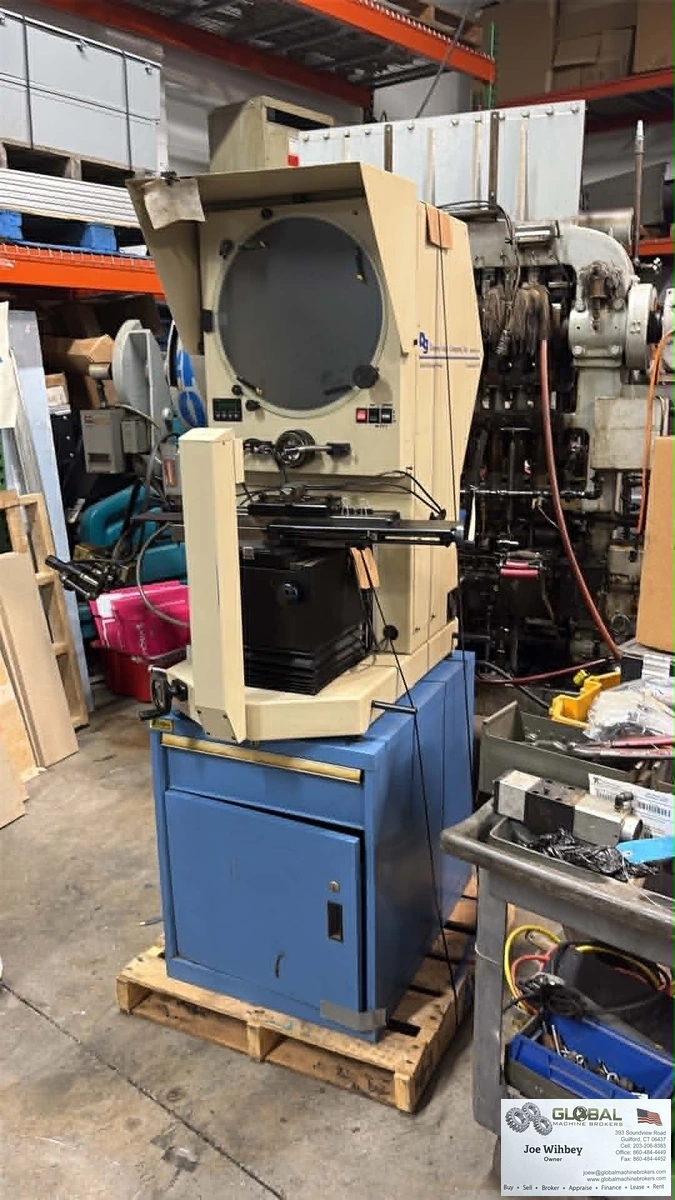

<p>Heavy Duty High Precision<!--StartFragment--> horizontal beam benchtop optical comparator<!--EndFragment--></p>
<p></p>
<p><b><b>Specifications</b>: </b></p>

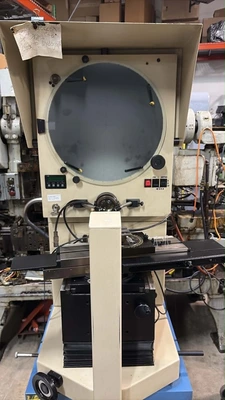

<ul><li><strong>Screen Size<!--TgQPHd|||[]--></strong>: 16-inch (400 mm) vertical ground glass screen with calibration reticle.<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Workstage Size<!--TgQPHd|||[]--></strong>: 18" x 5" cast iron, nickel-plated surface.<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>X-Axis Travel<!--TgQPHd|||[]--></strong>: 10 inches (250 mm) with a quick-release mechanism.<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Y-Axis Travel<!--TgQPHd|||[]--></strong>: 6 inches (150 mm) for vertical rise-and-fall movement.<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Weight Capacity<!--TgQPHd|||[]--></strong>: Holds parts up to 150 lbs.</li><li>Electrics: 115v / 1ph / 10 amps/ 50/60hz</li></ul>
<p></p>
<!--StartFragment-->Key Performance Features<!--TgQPHd|||[]-->
<ul><li><strong>Zero Backlash Scale<!--TgQPHd|||[]--></strong>: Built with a free-state, normalized zero-stress stage to achieve an inherent repeatability value as high as <strong>0.00001 inches<!--TgQPHd|||[]--></strong> without electronic compensation.<!--TgQPHd|||[]--> <!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Helix Adjustment<!--TgQPHd|||[]--></strong>: Features a ±15-degree true parfocal helix table adjustment with a 5-minute vernier.<!--TgQPHd|||[]--> </li><li><strong>Illumination<!--TgQPHd|||[]--></strong>: Equipped with integrated fiber optic surface illumination and a quartz halogen light source</li></ul>
