<p>Make: Okamoto</p>

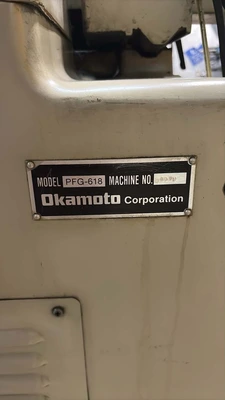

<p>Model: PFG-618</p>

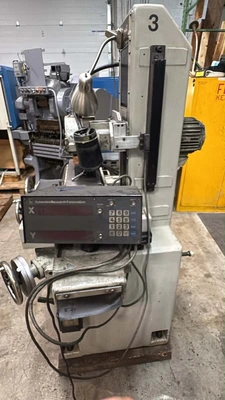

<p>Serial No: 8191U</p><p>Condition: Used, overall in good shape. Missing the lower door.</p><p>Comes with Walker 6x18" Magnetic Chuck with vise and Digital Readout + Light </p><p></p><!--StartFragment-->Technical Specifications<!--TgQPHd|||[]-->
<ul><li><strong>Grinding Capacity<!--TgQPHd|||[]--></strong>: 6" x 18"<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Max Distance (Table to Underside of Wheel)<!--TgQPHd|||[]--></strong>: 14.27"<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Grinding Wheel Size<!--TgQPHd|||[]--></strong>: 8" x 3/4" x 1-1/4" hole (Accepts up to 1" width)<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Motor<!--TgQPHd|||[]--></strong>: 2 HP<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Spindle Speed<!--TgQPHd|||[]--></strong>: 3,180 to 3,450 RPM<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Power Requirement<!--TgQPHd|||[]--></strong>: 3-Phase (typically wired for 220V/230V or 440V/460V)<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Machine Dimensions<!--TgQPHd|||[]--></strong>: 57" L x 45" W x 70" H (Requires approx. 76" x 47" floor space)<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Weight<!--TgQPHd|||[]--></strong>: ~1,800 lbs</li></ul>
<!--EndFragment--><p></p><p></p><!--StartFragment-->Handwheel Travel & Graduations<!--TgQPHd|||[]-->
<ul><li><strong>Longitudinal (Table left/right)<!--TgQPHd|||[]--></strong>: 4" per revolution<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Cross Movement (Saddle in/out)<!--TgQPHd|||[]--></strong>: 0.1" per revolution with 0.001" graduation increments<!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li><strong>Vertical Movement (Wheelhead up/down)<!--TgQPHd|||[]--></strong>: 0.05" per revolution with ultra-fine 0.0002" graduations (High-accuracy models feature micro-dials down to 0.0001")</li></ul><p></p>
<!--EndFragment-->
