<p>Make: Amada </p>
<p>Model: VM-3800</p>

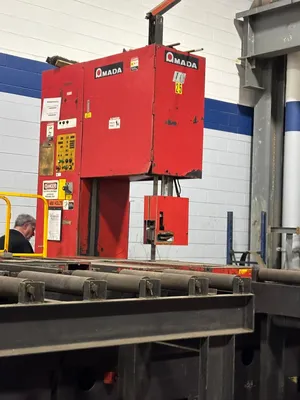

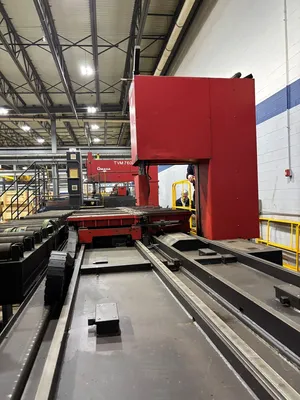

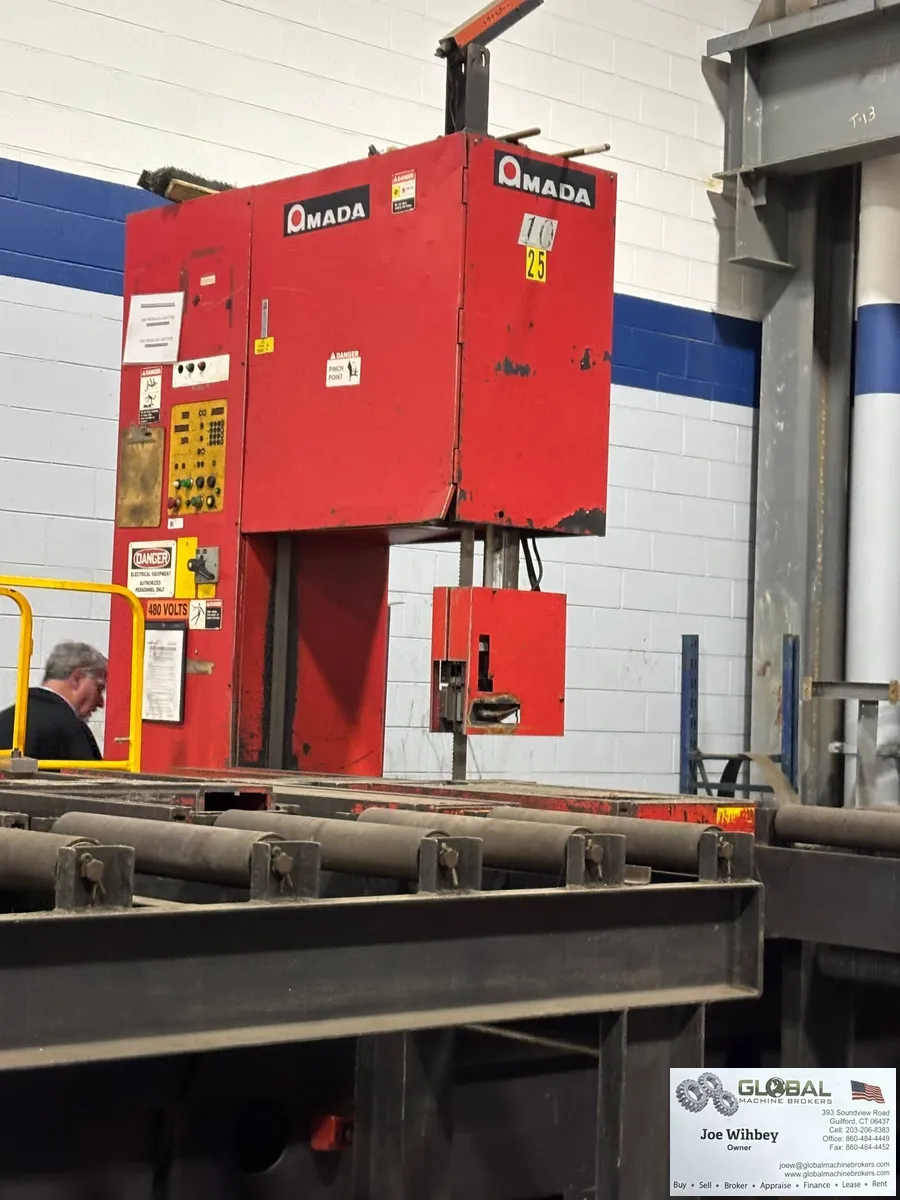

<p>New: 1990</p><p>Condition: Used. overall in great shape. Can be inspected under power. Video available upon request.<br>We Quote Subject to prior sale and conditions of sale (See Attached Terms)</p><p><br><!--EndFragment--></p><p><br><!--StartFragment--><br>Heavy-duty, NC-controlled vertical band block and plate cutting machine<!--EndFragment-->.</p>
<p></p>
<p><b>Specifications</b>: </p>
<!--StartFragment--><li>working length ---------------------------- 150"<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>maximum work height ----------------------- 24"<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>throat depth ( blade to column ) ---------- 31-1/2"<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>table size -------------------------------- 70" x 167"<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>maximum table load ------------------------ 26,460 lbs.<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>blade size -------------------------------- 253" l x 2" w x .063" thick<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>blade speed ------------------------------- 39 to 262 fpm<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>table height ------------------------------ 55.5"<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>main drive motor -------------------------- 10 hp 480/3/60<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>hydraulic drive motor --------------------- 2 hp a.c.<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>power required ---------------------------- 14 kva<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>approximate machine weight ---------------- 22,000 lbs<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>approximate machine dimensions ------------ 324"(lr) x 109"(fb) x 125"(h)<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>equipped with ---<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>optional 3 lifter & pusher units in table ( needs adjustment or work )<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>lifter & pusher control box<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>programmable control<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>hydraulic blade tension<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>coolant system<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>chip auger<!--TgQPHd|||[]--><!--TgQPHd|||[]--></li><li>centralized control panel<!--TgQPHd|||[]--></li><!--EndFragment-->
