<p>Make: <!--StartFragment-->HODEN SEIMITSU(Japanese make)</p>

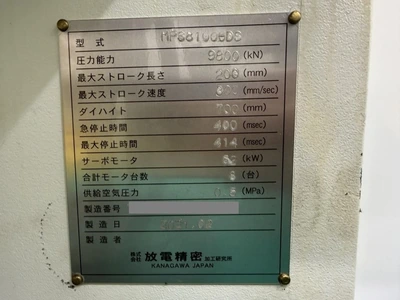

<p>Model: <!--StartFragment--><!--StartFragment-->MPS81000DS<!--EndFragment--><!--EndFragment--></p>
<p>MFG Year: 2021 </p>
<p>Year Decommissioned: 2026</p>
<p>Condition: Used, overall in great shape. Please reach out to schedule a meeting to look at the press.</p>
<p><!--StartFragment-->PRICE includes a press price, dismantling cost, packaging cost, inland transportation cost and the cost of loading a press on a Japanese export port<!--EndFragment-->.</p><p>Note- If you want to convert to American Specifications Please reach out. ALSO, Reach out for Detailed Drawings.</p>
<p></p>

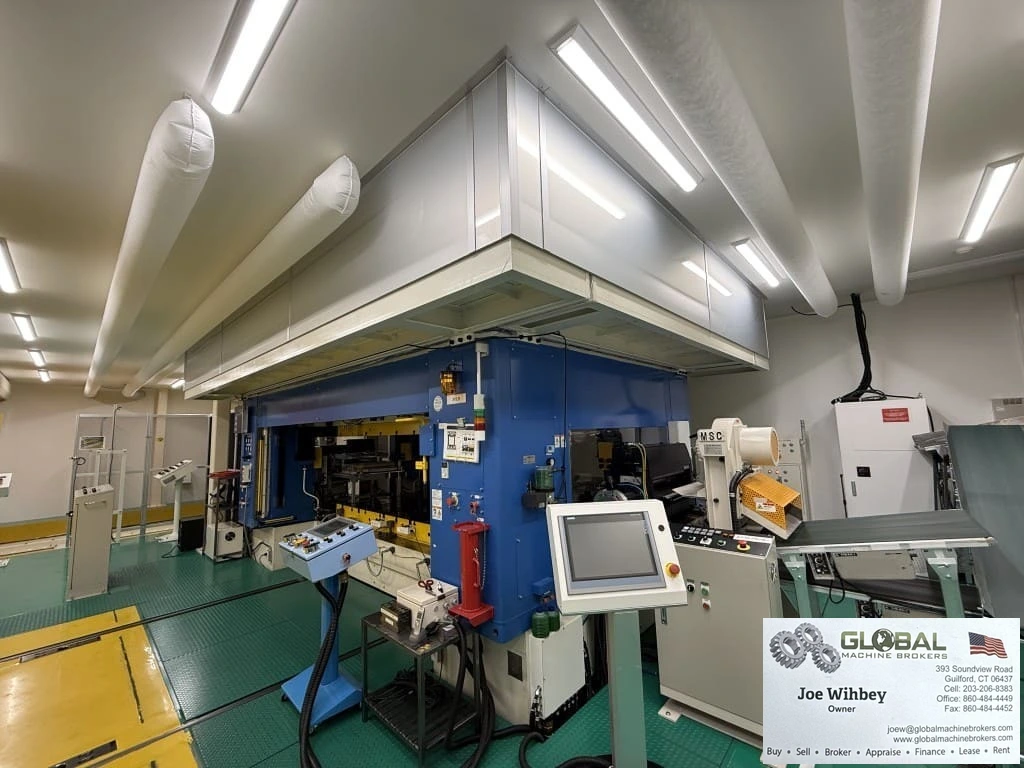

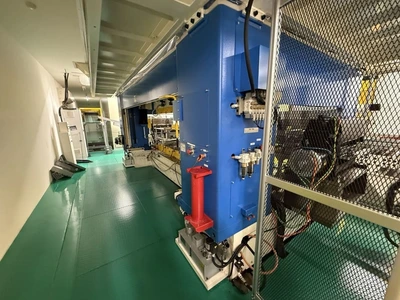

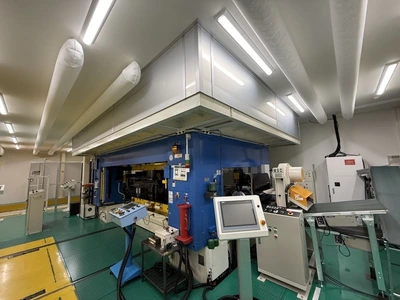

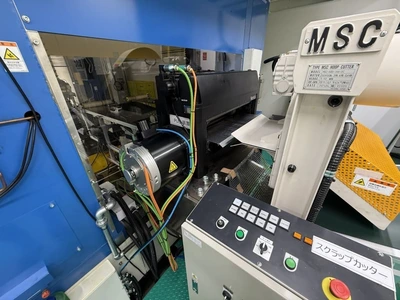

<p><!--StartFragment--><b>U</b><b>sed 1,000 ton Progressive Press in Japan</b></p>

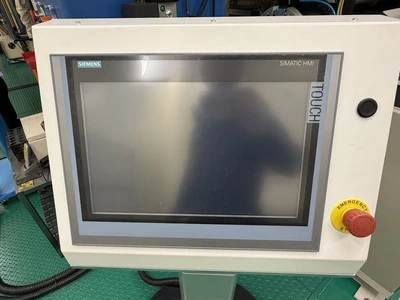

<p><b><!--StartFragment--><!--StartFragment-->System: Siemens Simatic HMI</b></p>
<p><b><br></b></p>
<!--StartFragment-->
<p><strong>Servo Specifications</strong></p>
<p><strong>Press Type:</strong> High-speed press with ball screw drive system<br><strong>Drive System:</strong> AC servo motor powered ball screw drive<br><strong>Frame Construction:</strong> Square column assembled frame</p>
<h3>Main Drive System</h3>

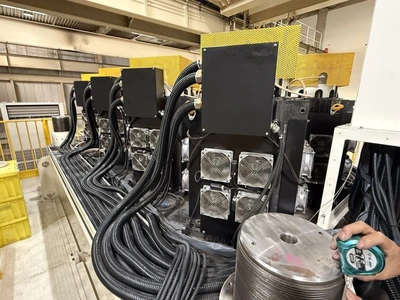

<ul><li><strong>Main AC Servo Motors:</strong><p></p><ul><li>Inner Slide: 550 kW × 4 motors</li><li>Outer Slide: 550 kW × 4 motors</li><li>Manufacturer: Hitachi (Japan)</li><li>Year: 2011</li></ul></li><li><strong>Ball Screws:</strong><p></p><ul><li>Inner Slide: Ø200 mm, 70 mm lead, 4 screws</li><li>Outer Slide: Ø200 mm, 70 mm lead, 4 screws</li></ul></li></ul>
<h3>Press Performance</h3>
<ul><li><strong>Press Capacity:</strong><p></p><ul><li>Inner Slide: 500 tons (4,900 kN)</li><li>Outer Slide: 500 tons (4,900 kN)</li></ul></li><li><strong>Maximum Slide Speed:</strong> 300 mm/sec</li><li><strong>Maximum Stroke:</strong> 200 mm</li><li><strong>Maximum Capacity Available:</strong> At any position during the stroke</li><li><strong>Inner Slide Protrusion:</strong> 50 mm beyond outer slide</li><li><strong>Open Height:</strong> 35.4"</li><li><strong>Die Height:</strong> 27.6"</li><li><strong>BDC Repeatability:</strong> ±0.02 mm</li><li><strong>Parallelism Control:</strong> Independent 4-axis servo control</li></ul>
<h3>Machine Dimensions</h3>

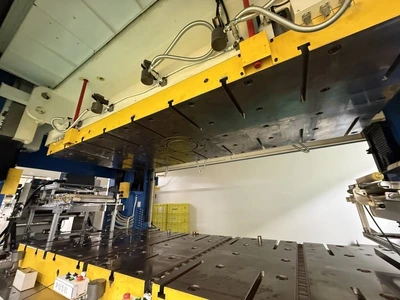

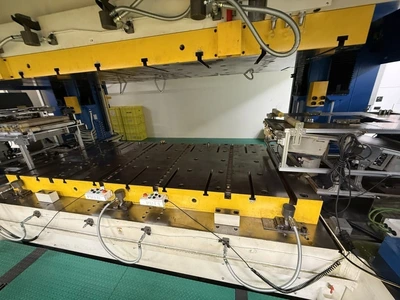

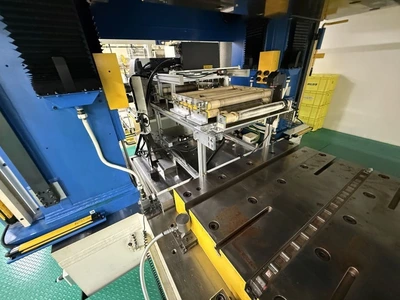

<ul><li><strong>Inner Slide Diameter:</strong> Ø300 mm</li><li><strong>Outer Slide Size:</strong> 118" W × 47" D</li><li><strong>Bolster Size:</strong> 118" W × 47" D</li><li><strong>Overall Machine Dimensions:</strong> 248" W × 204" D × 331" H</li><li><strong>Machine Weight:</strong> Approx. 595,000 lbs</li></ul>
<h3>Control System</h3>

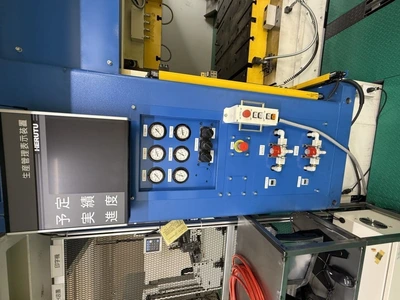

<ul><li>Closed-loop feedback control for each axis</li><li>Freestanding operator panel with color LCD touchscreen</li><li>Adjustable stroke position, speed, and timing</li><li>Position resolution: 0.001 mm</li><li>BDC dwell setting resolution: 0.01 sec</li><li>Storage capacity: Up to 100 processing programs</li><li>Teaching function with automatic parallelism control</li></ul>
<h3>Safety Equipment</h3>
<ul><li>Emergency stop buttons: 5 total (operator panel and all sides of machine)</li><li>Safety plugs/interlocks: 4 total</li><li>Motorized vertical lift safety doors (front and rear)</li><li>Front and rear light curtain safety systems</li></ul>
<h3>Optional Equipment Included</h3>

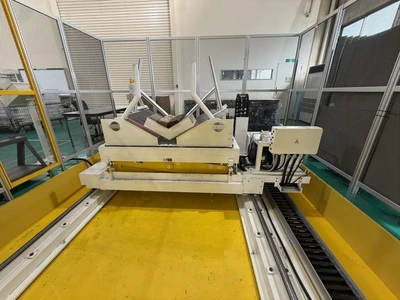

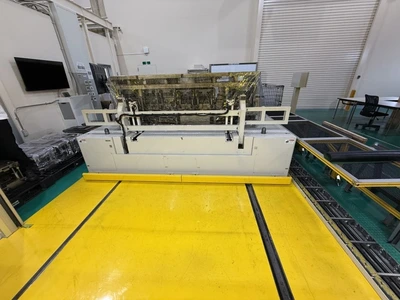

<ul><li><strong>Quick Die Change System (QDC):</strong> Up to 44,000 lb die capacity</li><li>Die Lifters: 4 units</li><li>Pre-Rollers: 4 units</li><li>Upper & Lower Die Clamps:<p></p><ul><li>8 clamps each</li><li>13,200 lb clamping force each system</li><li>50 mm clamp thickness</li></ul></li><li>Hydraulic Control Unit:<p></p><ul><li>3 circuits</li><li>Controls die lifters and die clamps</li></ul></li><li>Automatic Pneumatic Control System:<p></p><ul><li>73–116 PSI operating pressure</li><li>Solenoid valve program control</li></ul></li></ul>
<h3>Additional Features</h3>

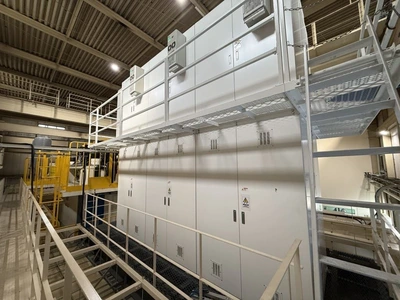

<ul><li>3-color status indicator light</li><li>Deck warning beacon with safety interlock</li><li>Internal LED machine lighting</li><li>Anti-vibration foundation pads</li><li>Front and rear dust covers</li><li>2-level maintenance deck</li></ul>
<h3>Installation Requirements</h3>
<ul><li><strong>Power Supply #1:</strong> 3-phase 400/440V ±10%, 50/60 Hz<ul><li>Recommended capacity: 550 kVA</li></ul></li><li><strong>Power Supply #2:</strong> 3-phase 200/220V ±10%, 50/60 Hz<ul><li>Recommended capacity: 10 kVA</li></ul></li><li><strong>Air Requirement:</strong> 73–116 PSI</li></ul>
