<p>Make: DANLY </p>

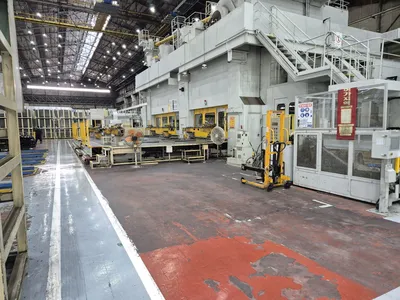

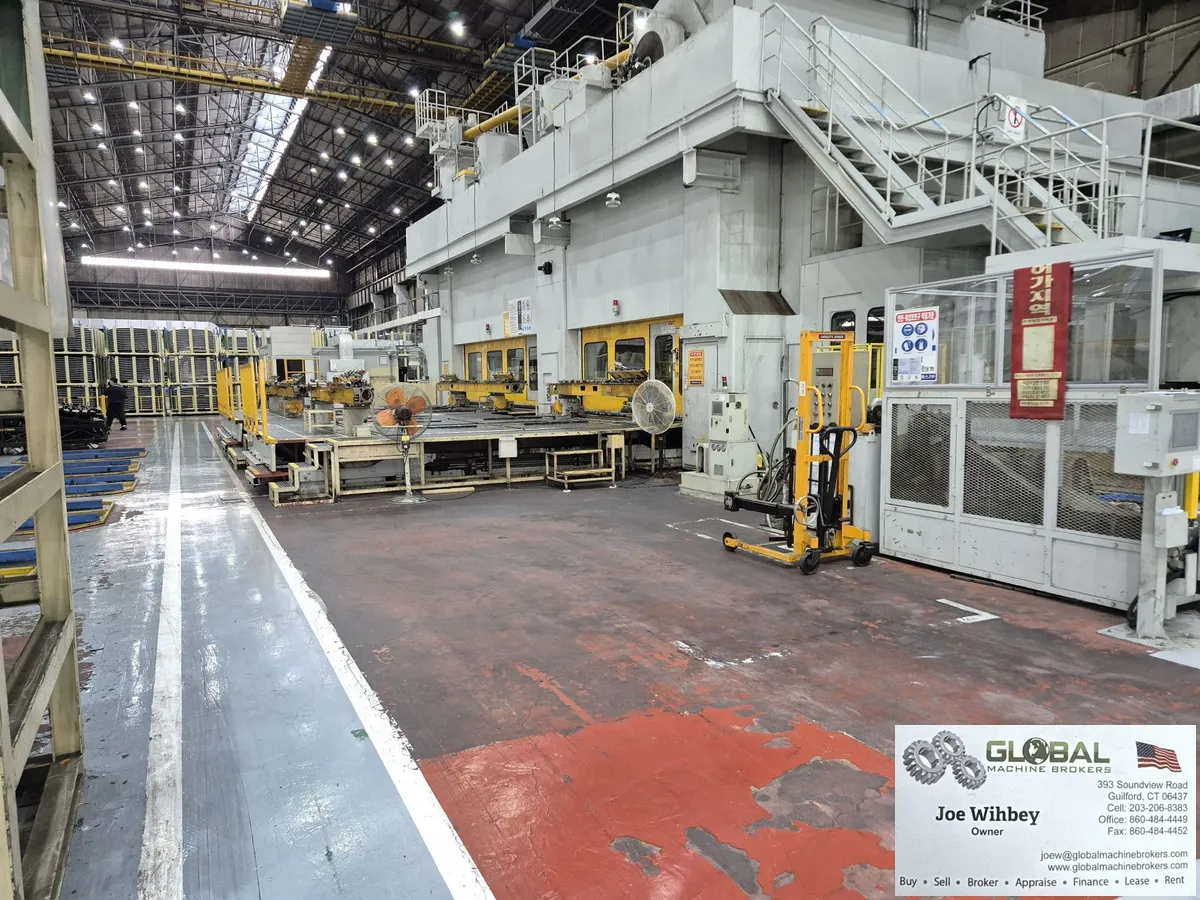

<p>Model: 3500 Ton Transfer Press Line</p>
<p>Made in the USA. Located in Korea. </p>
<p>NOTE- PRICE includes The press price, dismantling cost, packaging cost, inland transportation cost and the cost of loading a press on a Korean export port. </p>
<p>Condition: Used,
Overall in Good shape. Please reach out to schedule a meeting to look
at the press. We recommend sending a team to help dismantle to know how
it will erect.</p>
<p></p>
<p><b>General Information: </b></p>
<!--StartFragment-->
<ul><li><strong>Equipment:</strong> 3,500-Ton Transfer Press Line</li><li><strong>Manufacturer:</strong> DANLY (U.S.A.)</li><li><strong>Country of Origin:</strong> United States</li><li><strong>Installation Year:</strong> 1987</li><li><strong>Press Configuration:</strong> 2,300-ton Link Press + 1,200-ton Eccentric Press</li><li><strong>Total Press Capacity:</strong> 3,500 tons</li><li><strong>Transfer System:</strong> 5-station automated transfer line</li></ul>
<!--EndFragment--><b><br>Press Specifications: </b><br><br><!--StartFragment-->
<h3><strong>2,300-Ton Link Motion Press</strong></h3>
<ul>
<li>
<strong>Capacity:</strong> 2,300 tons
</li>
<li>
<strong>Press Type:</strong> Link Motion
</li>
<li>
<strong>Shut Height:</strong> 53.9 in.
</li>
<li>
<strong>Stroke:</strong> 39.4 in.
</li>
<li>
<strong>Slide Adjustment:</strong> 9.8 in.
</li>
<li>
<strong>Operating Speed:</strong> 6–14 SPM (strokes per minute)
</li>
<li>
<strong>Bolster Size:</strong> 165.4 × 141.7 in.
</li>
<li>
<strong>Bolster Thickness:</strong> 11.8 in.
</li>
<li>
<strong>Die Cushion Stroke:</strong> 11.2 in.
</li>
<li>
<strong>Die Cushion Capacity:</strong> 200 tons
</li>
</ul>
<h3><strong>1,200-Ton Eccentric Press</strong></h3>
<ul>
<li>
<strong>Capacity:</strong> 1,200 tons
</li>
<li>
<strong>Press Type:</strong> Eccentric
</li>
<li>
<strong>Shut Height:</strong> 53.9 in.
</li>
<li>
<strong>Stroke:</strong> 39.4 in.
</li>
<li>
<strong>Slide Adjustment:</strong> 9.8 in.
</li>
<li>
<strong>Operating Speed:</strong> 6–14 SPM (strokes per minute)
</li>
<li>
<strong>Bolster Size:</strong> 165.4 × 141.7 in.
</li>
<li>
<strong>Bolster Thickness:</strong> 11.8 in.
</li><li>
<strong>Die Cushion:</strong> None</li></ul>
<!--EndFragment--><!--StartFragment-->
<h3><strong>3-Dimensional Transfer Feeder</strong></h3>
<ul>
<li>
<strong>Type:</strong> 3-Dimensional Transfer Feeder
</li>
<li>
<strong>Maximum Operating Speed:</strong> 15 SPM (strokes per minute)
</li>
<li>
<strong>Transfer Capacity:</strong> 88 lbs (40 kg)
</li>
<li>
<strong>Feed Stroke:</strong> 82.7 in.
</li>
<li>
<strong>Lift Stroke:</strong> 13.8 in.
</li>
<li>
<strong>Clamp Stroke:</strong> 23.6 in.</li></ul>
<!--EndFragment--><br><!--StartFragment-->
<h3><strong>Destacker</strong></h3>
<ul>
<li>
<strong>Feeding Method:</strong> Vacuum & Magnetic Belt Feed
</li>
<li>
<strong>Maximum Operating Speed:</strong> 11 SPM (strokes per minute)
</li>
<li>
<strong>Blank Size Capacity:</strong> 35.4 × 27.6 in. to 126.0 × 82.7 in.
</li>
<li>
<strong>Material Thickness:</strong> 0.024–0.091 in.
</li>
<li>
<strong>Maximum Blank Weight:</strong> 88 lbs
</li><li>
<strong>Washing System:</strong> Wet-Type Sheet Washing System</li></ul>
<p></p>
<!--StartFragment-->
<h1>Standard Accessories</h1>
<p>- Automatic Die Change (ADC)</p>
<p>- Automatic Upper Die Clamper</p>
<p>- Soundproof Enclosure</p>
