<p>Make: Ram Optics Instrumental </p>
<p>Model: Sprint CNC 250 Plus</p>

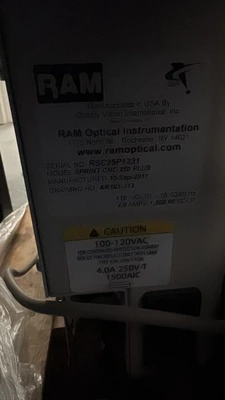

<p>Serial no: RSC25P1231</p>
<p>Year New: 2011</p>
<p>Condition: Used, overall in great shape. Has out of service which means it needs to be calibrated. </p>
<p>We will test upon request. </p>
<p></p>

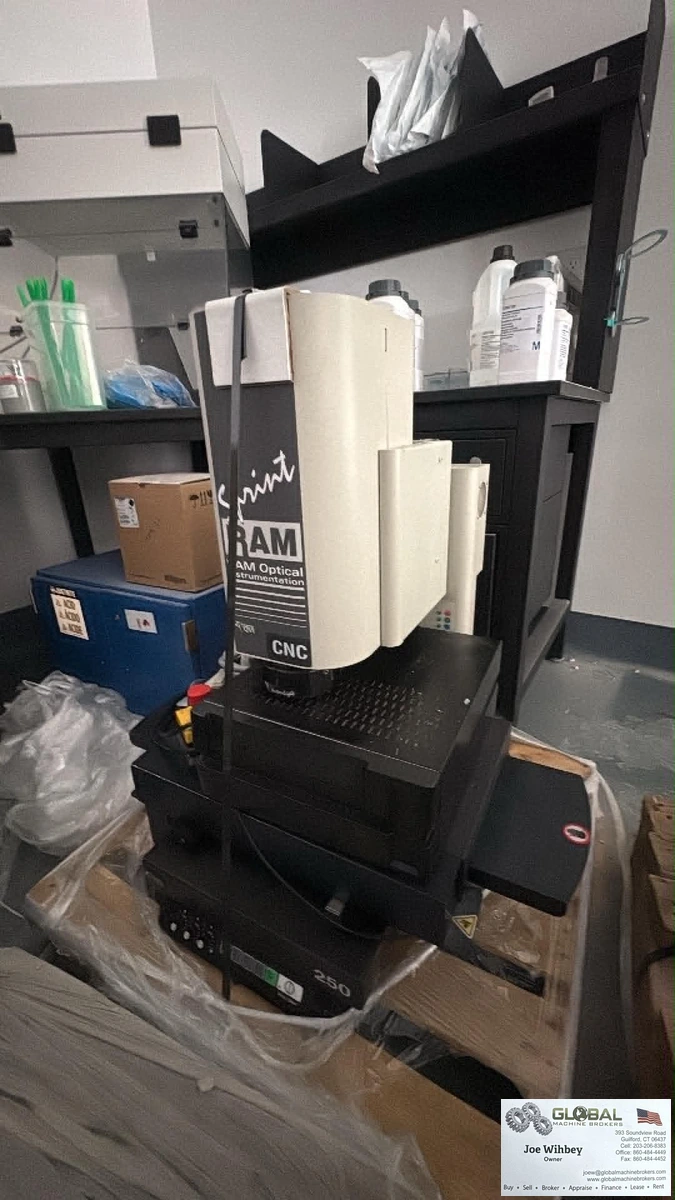

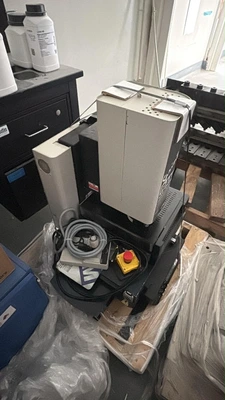

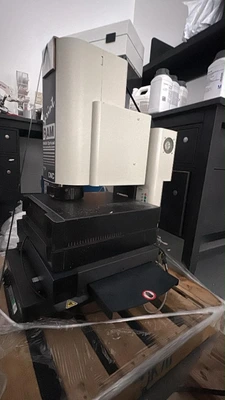

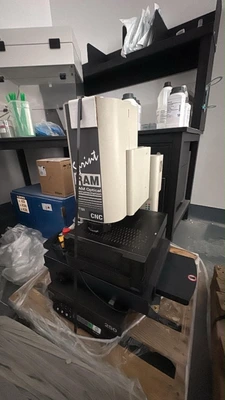

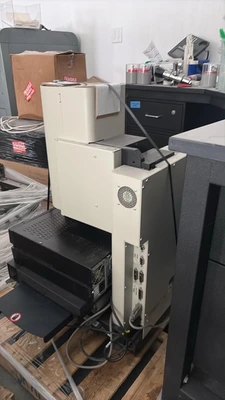

<p>Very nice Fully Automatic High Performance Bench top Non contact video measuring system. <!--StartFragment-->Widely used in precision manufacturing industries like medical molding, aerospace, and electronics to perform automated geometric inspections and dimensional quality control.<!--EndFragment--> This Unit came out of a trusted and clean facility.</p>
<p><!--StartFragment-->The "Plus" variant upgraded the accuracy and digital imaging components over standard manual or base-level Sprint models<!--EndFragment--></p>
<p></p>
<p><b>Specifications: </b></p>

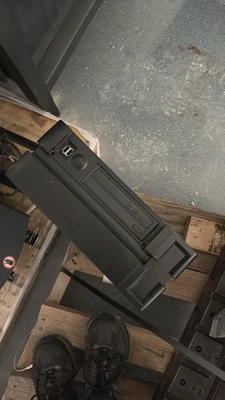

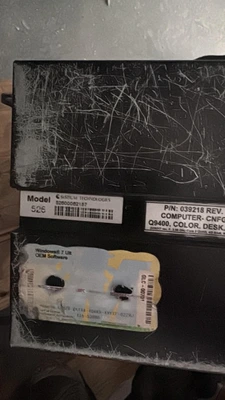

<ul><li>Measuring Range: (XYZ) 300mm x 150mm x 150mm 12"x6"x6"</li><li>Scale Resolution: 0.5 <!--StartFragment-->µm<!--EndFragment--> / 0.00002” across all 3 axis </li><li>Optical Scale Resolution: 0.000004”</li><li>Working Distance: 2.75"</li><li>Field of view: 0.070" to 0.35"</li><li>XY Area accuracy: = 2.5 + 5L/1000 <!--StartFragment-->µm<!--EndFragment--> (where L is the measurement length in mm)</li><li>Z Axis linear accuracy: = 3.5 + 4L/1000 <!--StartFragment-->µm<!--EndFragment--></li><li>Maximum Stage Load: ~50lb</li><li>Weight: 250lb</li><li>Platform Dimensions: 28" x 21.75" x 31.5"</li><li>Magnification on 20" LCD Monitor: 35X to 175X and up to 600 with<br>auxiliary lens and tubes</li><li>Machine Base: <!--StartFragment-->Solid granite base and column structure to ensure thermal and mechanical stability during CNC automation</li><li>Controller: Minimum: Intel processor <br>-1 GB RAM<br>-80 GB hard drive<br>-1.44 MB floppy drive<br>-CD-ROM<br>-Parallel, serial and USB ports<br>-On board 10/100 LAN</li></ul>
<p><br>Features: <!--StartFragment--></p>

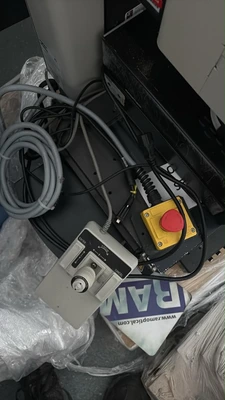

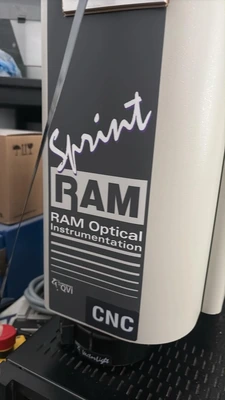

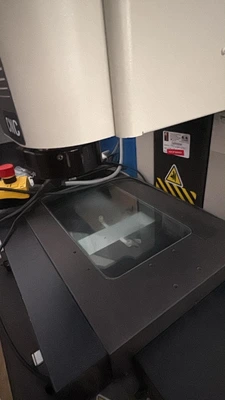

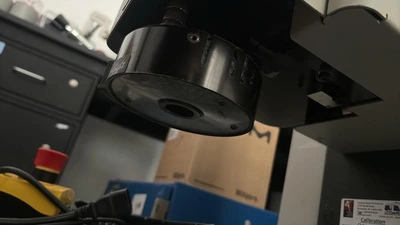

<li><strong>Automated CNC Motion:<!--TgQPHd|[]--></strong> Utilizes a motorized compound XY stage and linear Z stage. Operators can control movements manually using a <strong>3-axis joystick<!--TgQPHd|[]--></strong> or program full routines for continuous, hands-free part inspection.<!--TgQPHd|[]--> </li><li><strong>Advanced Optics & Camera:<!--TgQPHd|[]--></strong> Features a high-resolution <strong>megapixel color metrology camera<!--TgQPHd|[]--></strong> combined with a motorized 6.5:1 zoom lens, delivering digital magnification ranges from 24x up to 370x on a standard monitor.<!--TgQPHd|[]--> </li><li><strong>Programmable Lighting:<!--TgQPHd|[]--></strong> Equipped with an <strong>LED VectorLight ring light<!--TgQPHd|[]--></strong> featuring multiple rings and sectors, alongside LED backlight capabilities to effortlessly highlight complex edges and blind holes.<!--TgQPHd|[]--> </li><li><strong>Metrology Software:<!--TgQPHd|[]--></strong> Typically powered by <strong>Measure-X software<!--TgQPHd|[]--></strong>, an intuitive point-and-click environment allowing operators to create CAD-like routines, calculate part datums, and check tolerances seamlessly.</li><a href="https://nubilight.nubicom.co.kr/upload/datasheet/cnc%20200.pdf">https://nubilight.nubicom.co.k...</a> <p></p>
