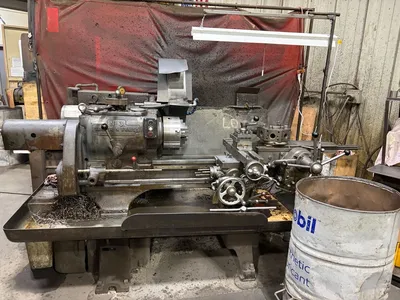

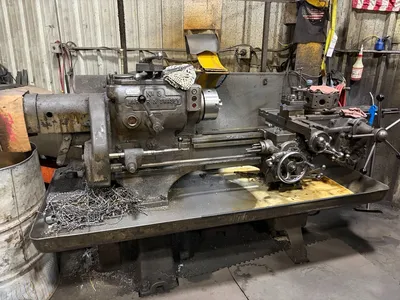

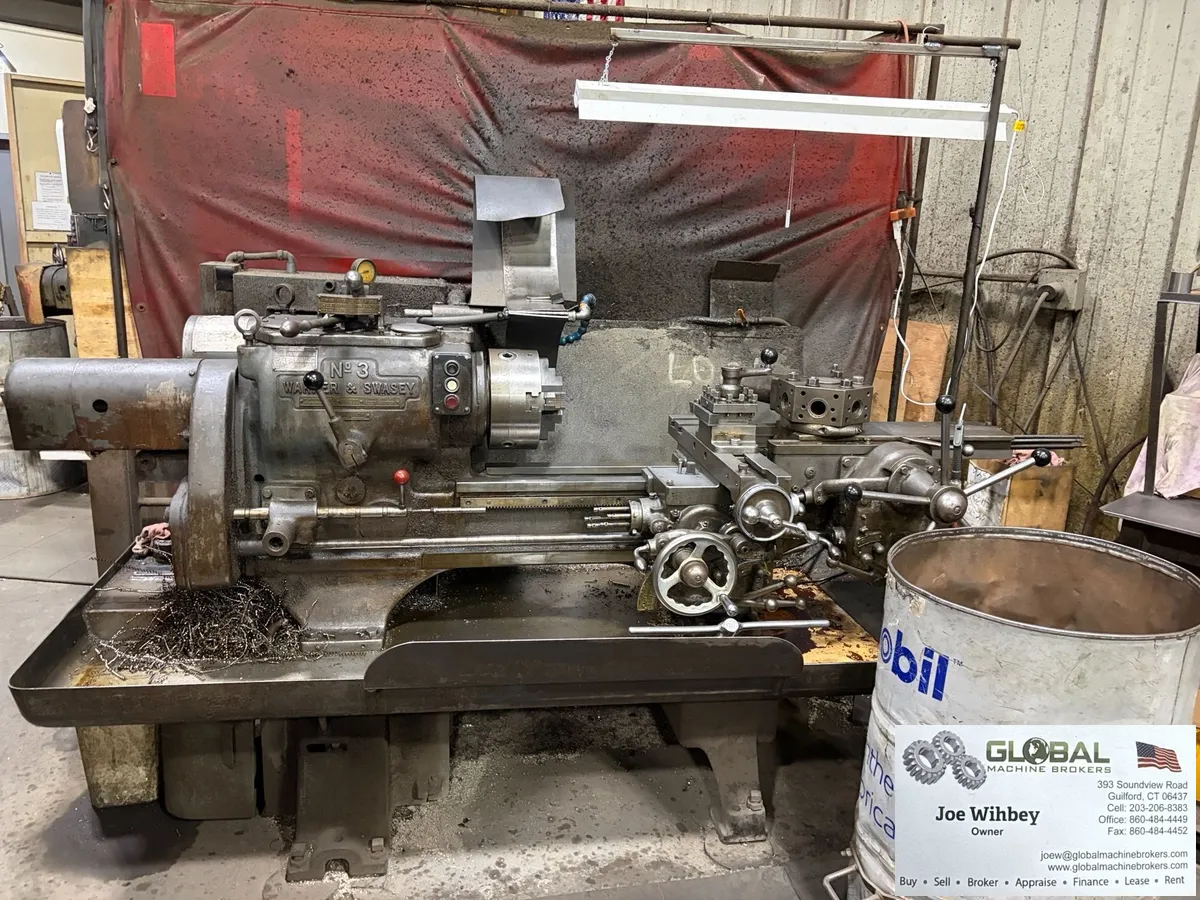

<p>Warner & Swasey No. 3 M-1200 Lathe</p>

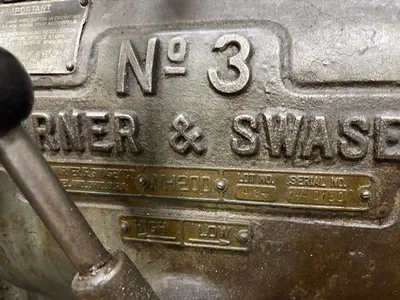

<p>Serial # 1440150. Lot # 414</p>
<p>Lots of tooling but that will cost a little extra. Tell us what you want / need. </p>
<p>Machine is in shop on floor under power and cutting parts. <br>* Two Good machines available.</p>
<p>Key Technical Specifications<!--TgQPHd|[]-->The standard specifications for the widely used Warner & Swasey #3 Universal Ram Type (such as the M-1200 or M-2200 series) typically include:</p>
<ul><li><strong>Swing Over Bed<!--TgQPHd|[]--></strong>: 15-3/8 inches<!--TgQPHd|[]--><!--TgQPHd|[]--></li><li><strong>Bar Capacity<!--TgQPHd|[]--></strong>: 1-1/2 inches to 1-3/4 inches (depending on the exact collet configuration)<!--TgQPHd|[]--><!--TgQPHd|[]--></li><li><strong>Spindle Bore<!--TgQPHd|[]--></strong>: 1-27/32 inches<!--TgQPHd|[]--><!--TgQPHd|[]--></li><li><strong>Spindle Speeds<!--TgQPHd|[]--></strong>: 12 speeds, typically ranging from 67 to 1,480 RPM<!--TgQPHd|[]--><!--TgQPHd|[]--></li><li><strong>Turret Stations<!--TgQPHd|[]--></strong>: 6-position indexing hexagon turret mounted on a ram slide<!--TgQPHd|[]--><!--TgQPHd|[]--></li><li><strong>Main Motor<!--TgQPHd|[]--></strong>: Two-speed industrial motor, typically rated at 10/5 HP<!--TgQPHd|[]--><!--TgQPHd|[]--></li><li><strong>Approximate Weight<!--TgQPHd|[]--></strong>: Around 3,250 lbs<!--TgQPHd|[]--> </li></ul>

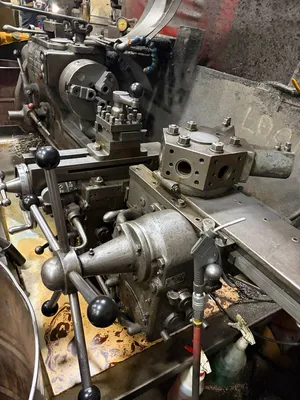

<ul><li><strong>Ram Type (#3)<!--TgQPHd|[]--></strong>: The No. 3 is natively a "ram type" lathe. The main saddle clamps directly onto the bedways, and the 6-station hexagon turret moves forward and backward on a separate dovetailed ram slide. This makes it ideal for fast, shorter-stroke production work on smaller to mid-sized parts.</li><!--TgQPHd|[]--></ul>
<!--TgQPHd|[]-->Core Features & Advantages<!--TgQPHd|[]-->

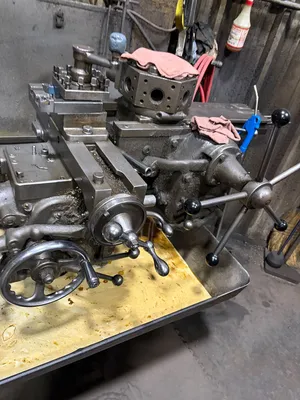

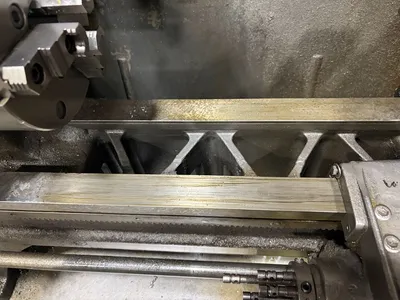

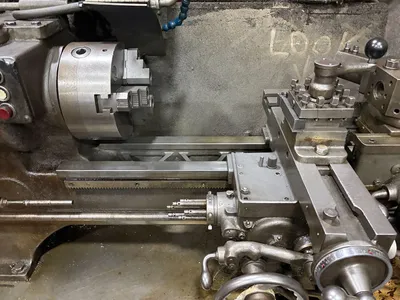

<ul><li><strong>Pre-Set Mechanical Stops<!--TgQPHd|[]--></strong>: Features longitudinal and cross-feed stop rods that allow an operator to lock in exact dimensions for multiple tools, maximizing repeatability.<!--TgQPHd|[]--><!--TgQPHd|[]--></li><li><strong>Dual Turret Setup<!--TgQPHd|[]--></strong>: Equipped with a front square turret on the cross-slide for facing/parting and a rear indexing hex turret for drilling, boring, and turning.<!--TgQPHd|[]--><!--TgQPHd|[]--></li><li><strong>Rigid Bedways<!--TgQPHd|[]--></strong>: Built with hardened and ground steel bedways that resist wear extraordinarily well if properly lubricated with cutting oil.</li></ul>
