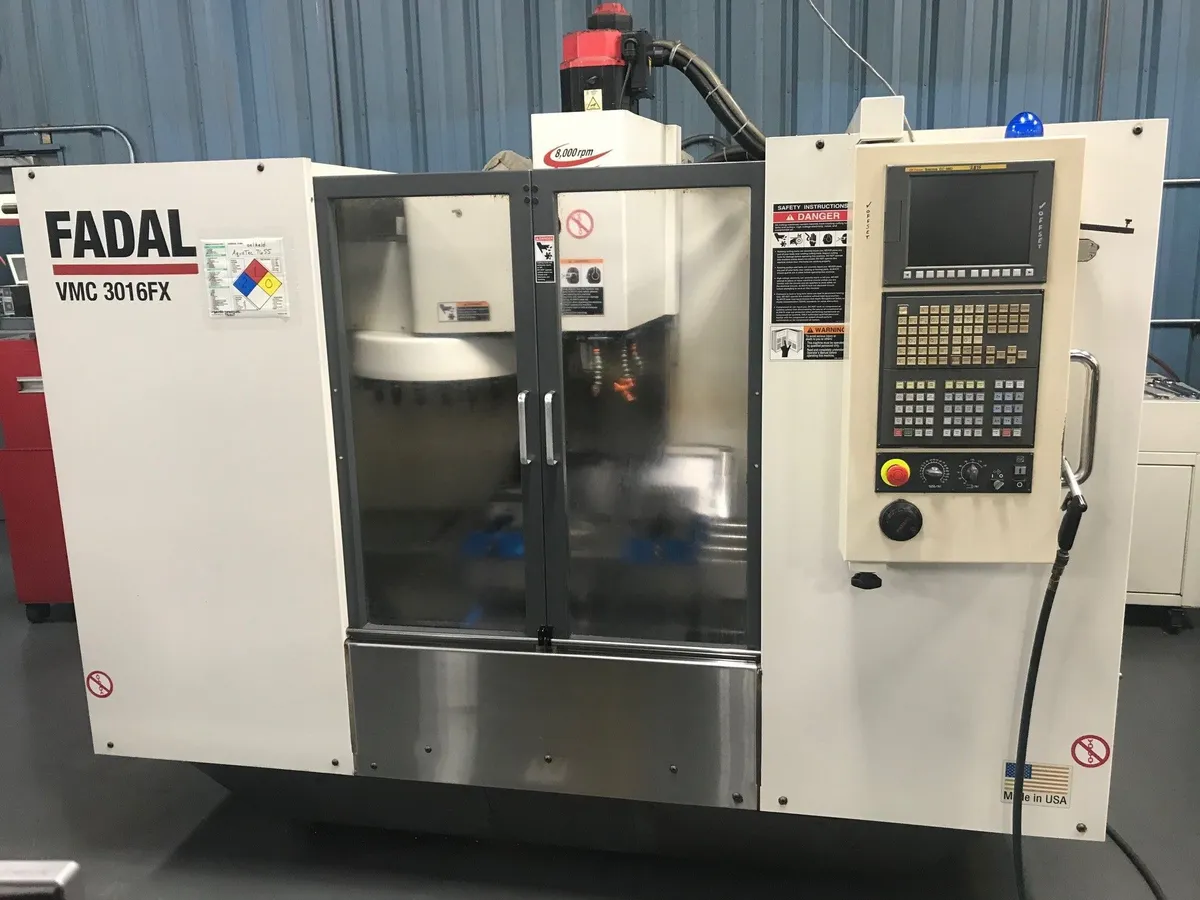

<!--StartFragment--><!--StartFragment--> FADAL VMC 3016FX VERTICAL MACHINING CENTER<p></p>

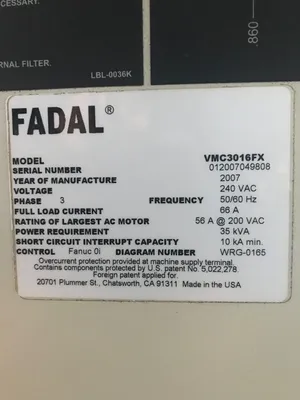

<p> S/N 012007049808 NEW 2007</p>
<p> TRAVEL --- ( X AXIS ) --------------------- 30"</p>
<p> TRAVEL --- ( Y AXIS ) --------------------- 16"</p>
<p> TRAVEL --- ( Z AXIS ) --------------------- 20"</p>
<p> TABLE SIZE -------------------------------- 39" X 16" WITH 3 T-SLOTS</p>
<p> MAX. WEIGHT ON TABLE (EVENLY DISTRIBUTED) 2,700 LBS.</p>

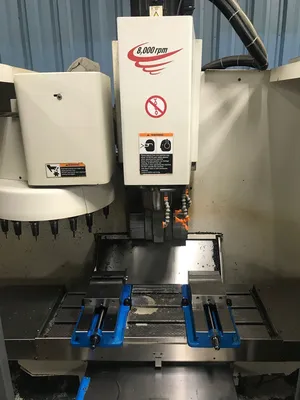

<p> SPINDLE SPEED ----------------------------- 8,000 RPM</p>
<p> SPINDLE TAPER ----------------------------- #40</p>
<p> TOOL CHANGER ------------------------------ 21</p>
<p> SPINDLE MOTOR ----------------------------- 20 HP 3/60/240 VOLTS</p>
<p> APPROXIMATE MACHINE WEIGHT ---------------- 8,700 LBS</p>
<p> APPROXIMATE MACHINE DIMENSIONS ------------ 99"(LR) X 84"(FB) X 97"(H)</p>
<p> EQUIPPED WITH ---</p>
<p> FANUC 0i CNC CONTROL </p>
<p> COOLANT TANK AND PUMP </p>
<p> SIDE MOUNT ATC </p>
<p> RIGID TAPPING </p>
<p> PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION AND CHANGE. </p>
<p> NOTE: VISES AND TOOLING SHOWING IN PICTURES AND VIDEOS ARE NOT INCLUDED. </p>
<p> VIDEO AVAILABLE UPON REQUEST. <!--EndFragment--><!--EndFragment--></p>
