<!--StartFragment--><!--StartFragment--> S/N 495896 NEW 1996<p></p>
<p> CAPACITY --- ( ROUND ) -------------------- 18" DIAMETER</p>
<p> CAPACITY --- ( RECTANGULAR ) -------------- 18" X 27"</p>
<p> VISE SHUTTLE STROKE ----------------------- 0 TO 72"</p>
<p> BLADE SIZE -------------------------------- 1.5" X .050" THICK X 22'2" LONG</p>
<p> BLADE SPEEDS ------------------------------ 80 TO 400 FPM</p>
<p> MAIN DRIVE MOTOR -------------------------- 10 HP AC</p>
<p> HYDRAULIC MOTOR 2 HP A.C. </p>
<p> APPROXIMATE MACHINE WEIGHT ---------------- 8,500 LBS</p>
<p> EQUIPPED WITH ---</p>
<p> 2 HYDRAULIC VISES POWERED MOVEABLE GUIDE ARM </p>
<p> OPTIONAL 3RD HYDRAULIC VISE ON FEED TABLE POWERED LENGTH POSITIONER </p>
<p> COMPUTER CONTROLLED FEED SYSTEM POWERED BLADE TENSION </p>
<p> DOUBLE COLUMN (2) HYDRAULIC BUNDLING VISES </p>
<p> CUT WATCHER BLADE MONITOR SYSTEM VARIABLE BLADE SPEED </p>
<p> TOP CLAMP FOR BUNDLING DISCHARGE TABLE </p>
<p> MULTIPLE INDEX COOLANT SYSTEM </p>
<p> OPTIONAL 72" BAR FEED STROKE FULL STROKE VISES </p>
<p> HYDRAULIC UNIT CHIP AUGER </p>
<p> CANTED HEAD, 2 DEGREE TILT </p>
<p> ¯ </p>

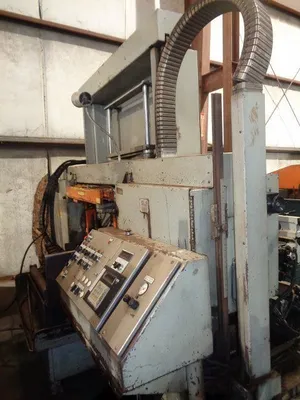

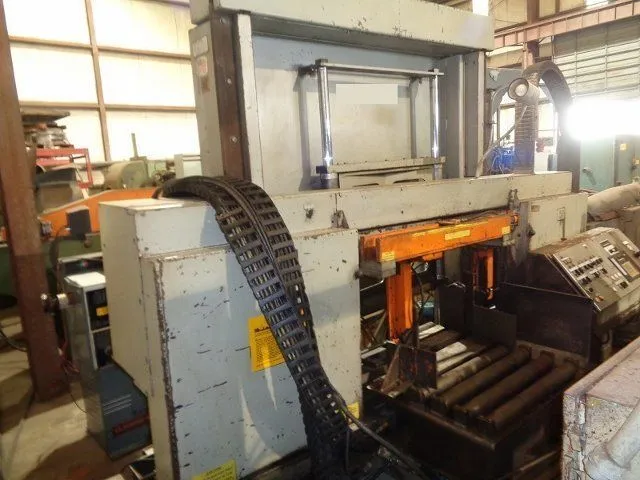

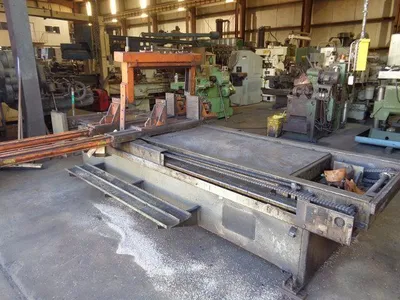

<p> HEM 18" X 27" F130HA-DC HORIZ. </p>
