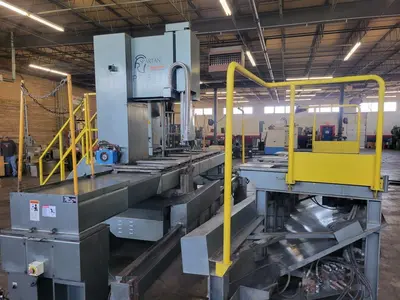

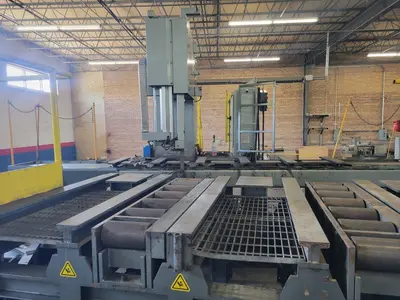

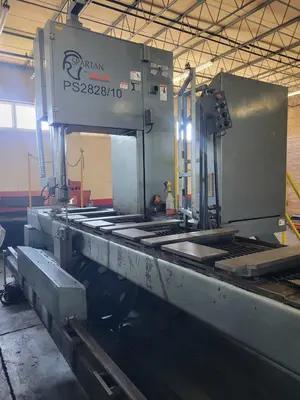

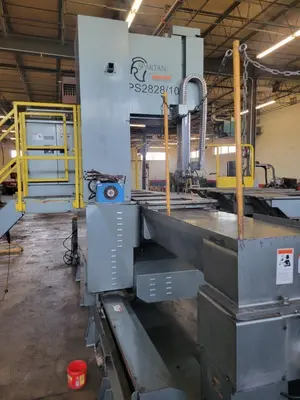

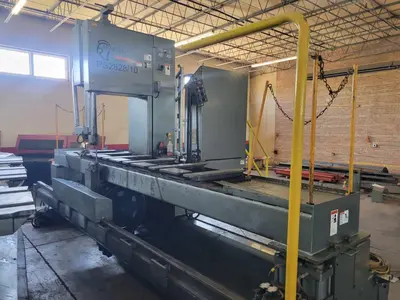

MARVEL SPARTAN PS2828/10 PLATE SAW

<!--StartFragment--><!--StartFragment--> CUTTING DEPTH ----------------------------- 27.5"<p></p> <p> CUTTING HEIGHT ---------------------------- 27.5"</p> <p> CUT-WIDTH --------------------------------- 118.1"</p> <p> BLADE SIZE -------------------------------- 2" X .063" X 22' 3.75"</p> <p> TABLE SIZE: 124" LONG </p> <p> 63" WIDE TO THE BLADE </p> <p> 28" WIDE BLADE TOWARD THE COLUMN </p> <p> SPEED ------------------------------------- 50-250 FPM ( 15-75 M/MIN. )</p> <p> RATE -------------------------------------- .080 - 20"/MIN ( 2-500 MM/MIN )</p> <p> BLADE DRIVE MOTOR ------------------------- 7.5 HP ( 5.5 KW )/460 VOLT/3/60</p> <p> HYDRAULIC PUMP MOTOR ---------------------- 2 HP ( 1.5 KW )</p> <p> COOLANT PUMP MOTOR ------------------------ 1 HP ( 0.7 KW )</p> <p> EQUIPPED WITH ---</p> <p> MOVEMENT VIA HYDRAULIC CYLINDER ON GROUND SQUARE WAYS </p> <p> HYDRAULICALLY CLAMPED CARBIDE BLADE GUIDES WITH HYDRAULIC </p> <p> CONTROLLED UPPER BLADE GUIDE ARM </p> <p> SPACE SAVING MOVEABLE SAW HEAD </p> <p> SAW HEAD TRAVELS ON GROUND SQUARE WAYS </p> <p> BUILT IN POSITIONING SCALES ON INNER TABLE </p> <p> 2 SETS OF INFEED AND OUTFEED HYDRAULIC ROLLERS AND MANUAL </p> <p> CLAMPING DEVICE FOR TABLE WORK POSITIONING </p> <p> HYDRAULICALLY POSITIONED GUIDE ARM </p> <p> HYDRAULIC BLADE TENSION </p> <p> HYDRAULIC MOVEMENT OF SAW HEAD </p> <p> RAPID APPROACH AND RETURN OF SAW HEAD </p> <p> MOTION DETECTOR FOR BLADE BREAKAGE OR STALLING </p> <p> HYDRAULIC BLADE FEED WITH COMPENSATION VALVE </p> <p> WORK LIGHT </p> <p> LASER BEAM </p> <p> HYDRAULICALLY CLAMPED TUNGSTEN CARBIDE BLADE GUIDES </p> <p> POWERED CHIP BRUSH </p> <p> INDEPENDENT CONTROL PANEL </p> <p> INVERTER CONTROLLED BLADE SPEEDS </p> <p> FLUSHING HOSE </p> <p> CHIP CONVEYOR<!--EndFragment--><!--EndFragment--></p>
