<p>Make: Stonepak / Premier Tech </p><p>Model: 90I</p><p>Serial No; 06901003</p>
<p>MFG: 2006</p>
<p>Condition: Used Overall in Great shape.</p>
<p></p>

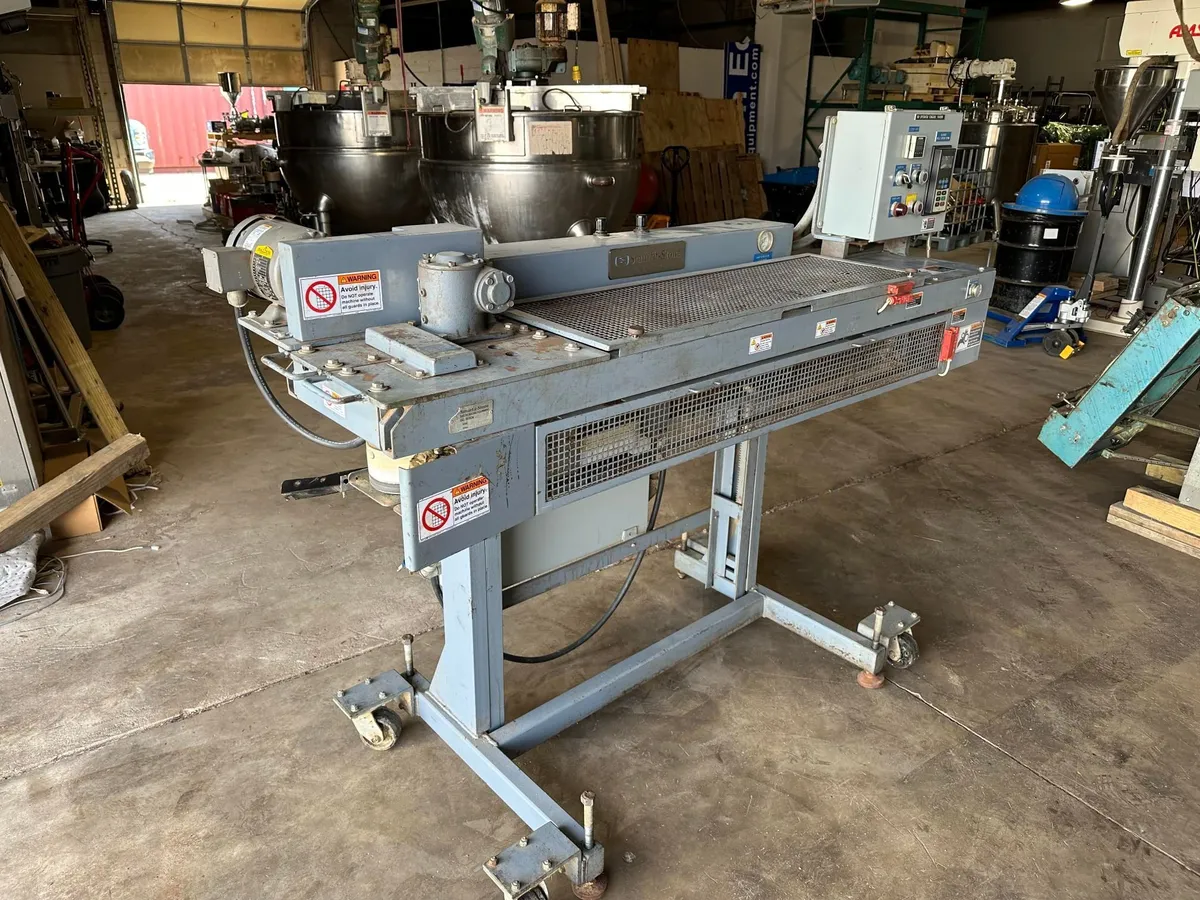

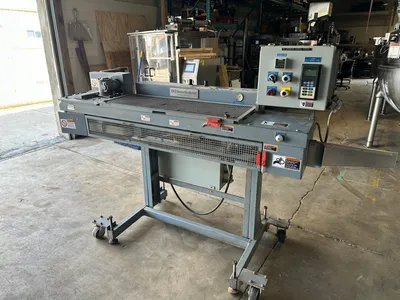

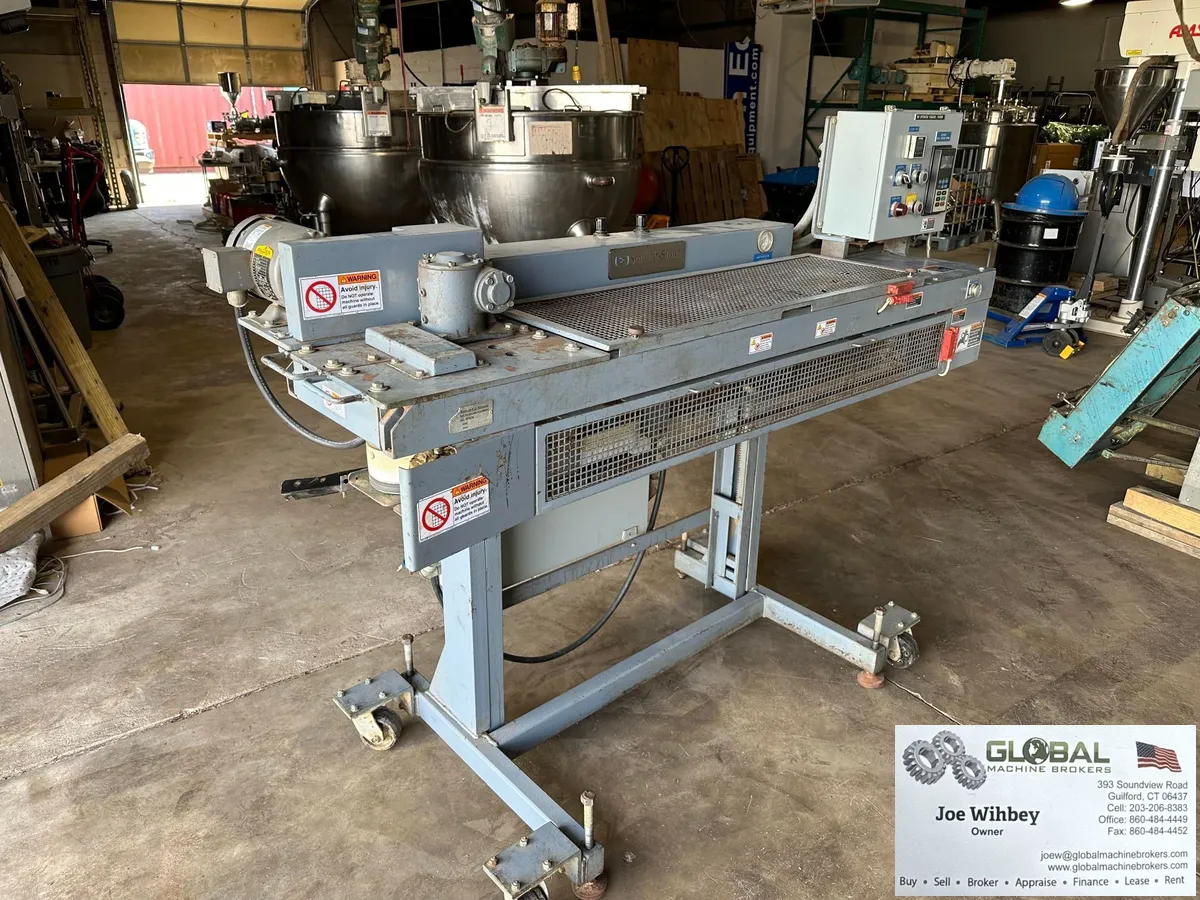

<p>90 Series High speed pinch top bag closer designed to provide a sift proof and airtight seal for open mouth multi wall paper bags</p>
<p></p>
<!--StartFragment--><b>Key Functional Specifications</b><p></p>
<p></p>
<p></p>
<ul><li><strong>Sealing Method:</strong> It activates <strong>pre-applied hot melt adhesive</strong> on the bag flap using a hot-air plenum.</li><li><strong>Closure Process:</strong> The machine folds the top flap against the face of the bag and compresses it between belts to set the permanent closure.</li><li><strong>Bag Compatibility:</strong> Specifically engineered for <strong>Pinch Bottom Open Mouth (PBOM)</strong> bags, typically made of multiwall paper or paper with a polyethylene inner liner.</li><li><strong>Operational Speed:</strong> Capable of processing up to <strong>20 bags per minute</strong> depending on the specific integration and bag size.</li></ul>
<div><br></div>
<p></p>
<!--StartFragment--><strong>Technical Data</strong><p></p>
<p></p>
<p></p>
<ul><li><strong>Dimensions:</strong> Approximately <strong>90" L x 34" W x 76" H</strong> (2286 mm x 864 mm x 1944 mm).</li><li><strong>Shipping Weight:</strong> Roughly <strong>1,300 lbs</strong> (590 kg).</li><li><strong>Production Rate:</strong><ul><li><strong>Standard:</strong> Up to <strong>30 bags per minute</strong> (BPM).</li><li><strong>High-Speed Version:</strong> Capable of <strong>45+ BPM</strong> with belt speeds up to <strong>150 fpm</strong>.</li></ul></li><li><strong>Air Requirements:</strong> <strong>7 scfm @ 80 psig</strong> (standard filtered, cooled, and dry air).</li><li><strong>Electrical Requirements:</strong> Typically <strong>230v / 3 Ph / 60 Hz</strong> (30/15 Amps).</li></ul>
