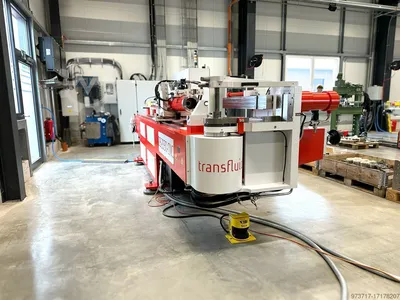

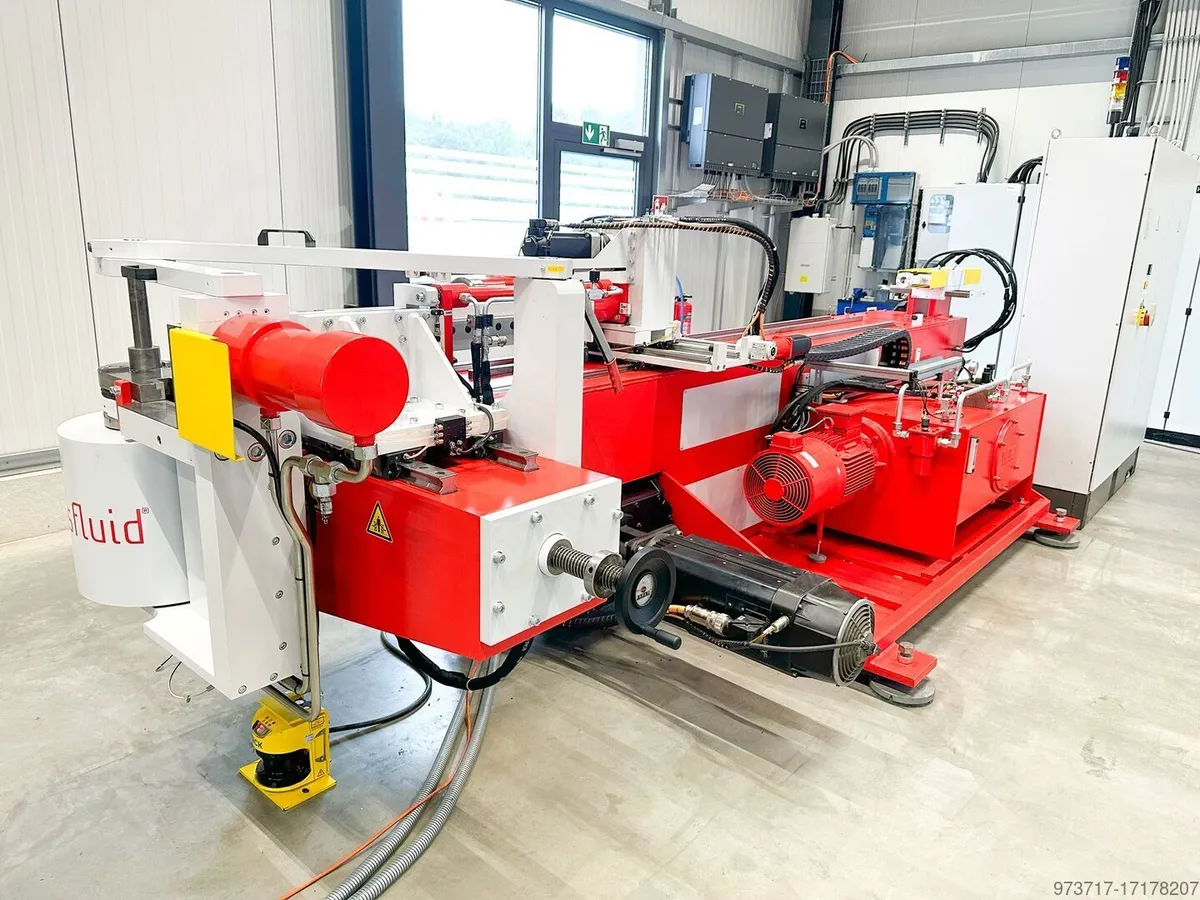

2013 Transfluid DB2090CNC CNC Tube Bending Machine 480 V - 60 Hz - 3P

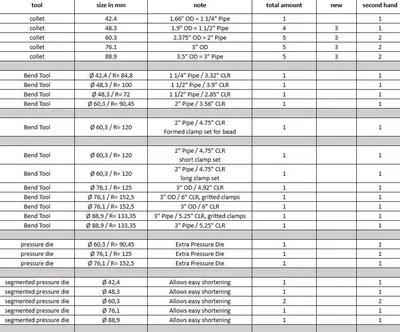

<p>Make: Transfluid&nbsp;</p> <p>Model: DB-2090</p> <p>Year MFG: 2013</p> <p>Condition: Used, overall in Excellent Shape. Controls have been updated and the machine has been refurbished.&nbsp;</p> <p>Comes with Tooling! See last 2 pictures for the tool list.&nbsp;</p> <p></p><p>This is a great CNC Tube Bender. Its Like new and ready to be picked up. Located in South Carolina&nbsp;</p> <p></p> <p><b>Features And Options:&nbsp;</b><br></p> <ul><li>Flange Positioning Unit</li><li>Capacity Enhancement&nbsp;</li><li>Controlled mandrel withdrawal&nbsp;</li><li>Carriage for wiper die&nbsp;</li><li>Central lubrication&nbsp;</li><li>Air condition</li><li>Remote Diagnostics Systems&nbsp;</li><li>Guarding system&nbsp;</li></ul> <p></p> <p><b>Technical Specifications:&nbsp;</b></p> <ul><!--StartFragment--><li>Round tubing, mild steel: 3.5" × 0.200" (88.9 mm OD × 5.0 mm wall thickness) <br> </li><li> Round tubing, stainless steel: 88.9 mm OD × 3.2 mm wall thickness <br> </li><li> Square tubing, mild steel: 50 mm × 50 mm × 2.5 mm wall thickness <br> </li><li> Maximum moment of resistance: 26.2 cm³ (mild steel) <br> </li><li> Maximum bending angle: 180° + 10° springback <br> </li><li> Maximum bending speed: 50°/sec (front feed) <br> </li><li> Maximum front feed speed: 1000 mm/sec <br> </li><li> Maximum rotation speed: 75°/sec <br> </li><li> Bending axis accuracy: ±0.1° <br> </li><li> Length accuracy: ±0.1 mm <br> </li><li> Rotation accuracy: ±0.1° <br> </li><li> Arbor (usable length): 3048 mm <br> </li><li> Maximum bend radius: 225 mm <br> </li><li> Bending height: 1150 mm <br> </li><li> Bending axis: servo-electric <br> </li><li> Rotation and length positioning: servo-electric <br> </li><li> Other axes (clamping, mandrel position): servo-hydraulic</li></ul> <p><b>Machine Equipment:&nbsp;</b></p> <p>-Clockwise bending<br>- Hollow shaft allows tooling for small radii<br>- Automatic, programmable mandrel withdrawal<br>- Automatic, programmable mandrel lubrication (for tubes 13.5 mm ID and larger)<br>- Manual central lubrication of all moving parts<br>- Tubes with short final straights can be positioned and bent<br>- Separate collet needed for each tube OD<br>- In manual mode, all functions can be operated by keyboard and mouse<br>- The emergency area in front of the machine is controlled via laser scanner<br>- The machine conforms to the electric and mechanical security guidelines and the CE norm<br>- Color RAL 7047 grey, RAL 3020 red<br><b><br>Machine Data:</b>&nbsp;<br><br>-Including connection for pressured air supply, 6 bar<br>- Nominal pressure 250 bar, Operating pressure 200 bar<br>- Operating voltage 480 V - 60 Hz - 3P – 35 kW<br>- Control voltage 24 V D.C.<br>- Length 5500 mm<br>- Width 1800 mm<br>- Height 1500 mm<br>- Weight approx. 7200 kg<br>- Control desk approx. 200 kg<br><br><b>Control Description:&nbsp;<br><br></b><b></b>- Control via Simatic PC IPC 427 E, Core i5<br>- Storage capacity: 250 GB (SATA)<br>- Data volume: 8 GB<br>- Operating system: Windows 10 IoT Enterprise 2019 (64 Bit)<br>- Equipped with 22" Widescreen monitor<br>- The bending program is automatically generated after input of the bending data and can be manually optimized, if necessary<br>- Includes Ethernet and USB interface for data import and export<b></b></p>
