<p>Make: Techno </p>
<p>Model: LC Series </p><p>Available Sizes: <!--StartFragment--><!--StartFragment-->4x4, 4x8, and 5x10 size Price stays the same for all model. </p>
<!--StartFragment-->
<p> There is a special 5x12 LC model available for $59,500.00.<br><!--EndFragment--></p>
<p>NEW</p>
<p><!--StartFragment--><!--StartFragment--> Techno handles all the service, support, and training.<!--EndFragment--><!--EndFragment--> </p>
<p></p>
<!--StartFragment-->

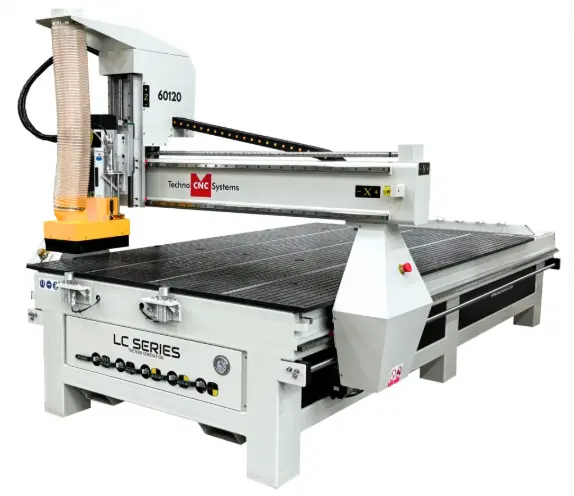

<p>Since 2001, the Techno LC Series CNC router has been a leader in the market, known for delivering high-quality, reliable performance at a low cost, backed by strong customer support. Thousands are still running daily across the U.S., and we continue to support them for free over two decades later.</p>

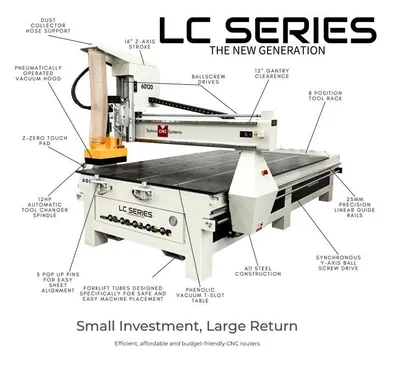

<p>Due to popular demand, the LC Series is back—now redesigned with modern technology. The new generation features all-steel construction, ball screw technology, and comes in 4′×4′, 4′×8′, and 5′×10′ sizes with 12″ gantry clearance. Standard features include a 12HP automatic tool changer, 8-position tool rack, pneumatic vacuum hood, 4-zone vacuum T-slot table, digital AC servo drives, precision linear rails, and an easy-to-use handheld controller.</p>
<p></p>
<p>Features:</p>
<!--EndFragment--><!--StartFragment--><li>All Steel Construction</li><li>Available in 3 Sizes: 4’x4′, 4’x8′, 5’x10</li><li>12 HP High Frequency Automatic Tool Changer Spindle</li><li>4-Zone Vacuum T-slot Table</li><li>Digital AC Servo Motors and Drives with Ballscrew Technology on all 3-Axes</li><li>8 Position Tool Rack</li><li>5 Pop-up Pins for Easy Sheet Alignment</li><li>Pneumatically Operated Vacuum Hood</li><li>Easy to use Handheld Controller</li><li>Open architecture works with all industry standard CAD/CAM software</li>Specifications:<p></p>
<p></p>
<ul><li><strong>Process Area:</strong><br>X: 60" | Y: 120" | Z: 14.25" | Gantry Clearance: 12"<br>Footprint: 85"W × 154"L × 81"H</li></ul>
<ul><li><strong>Construction & Performance:</strong><br>All-steel frame (FEA-designed), stress-relieved and precision machined.<br>Ball screw drive system on all axes.<br>Repeatability: ±0.003" | Rapid speed: 800 IPM<br>Weight: ~5,000 lbs (7,500 lb forklift recommended)</li></ul>
<ul><li><strong>Control System:</strong><br>750W brushless AC servo motors with easy-to-use handheld controller.</li></ul>
<ul><li><strong>Spindle:</strong><br>12HP automatic tool changer (6,000–24,000 RPM)<br>Includes ISO30 holders, ER32 collets, pneumatic dust hood, and tool calibration pads<br>Quiet operation (~65 dB)</li></ul>
<ul><li><strong>Table & Vacuum:</strong><br>Multi-zone phenolic vacuum T-slot table<br>10HP rotary vane vacuum pump (173 CFM, 22Hg, 81 dB)</li></ul>
<ul><li><strong>Additional Features:</strong><br>Pneumatic pop-up pins for material alignment</li></ul>
<ul><li><strong>Power Requirements:</strong></li></ul>
<ul><li>Vacuum pump: 208–230V, 3-phase, 40A (dedicated)</li><li>Machine & spindle: 220V, 3-phase, 50A</li><li>Air: 90 PSI, 5 CFM (clean, dry)</li></ul>
