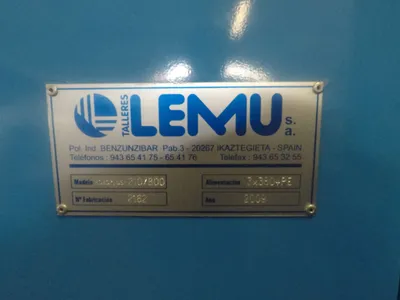

<p>Make: Talleres LEMU</p>
<p>Model: ROBOPLUS -210/800 </p>
<p>Serial No: 2203</p>
<p>Condition: Used, Overall in Excellent shape. The machine is available for inspection at the facility in Milan Italy </p>
<p></p>

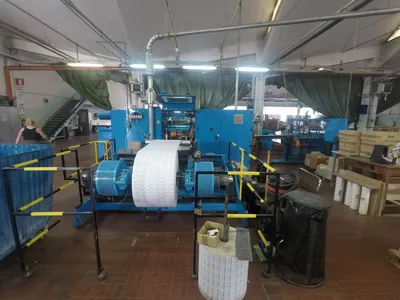

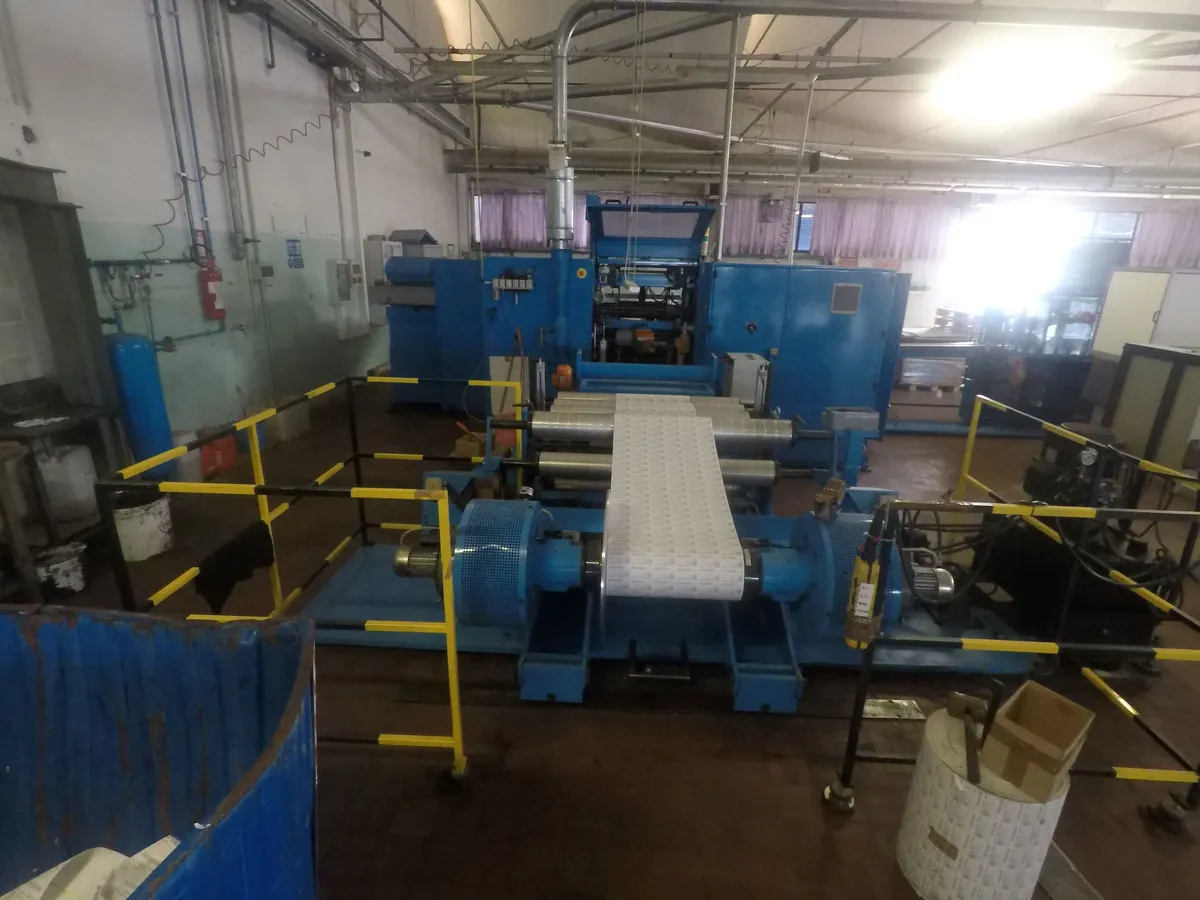

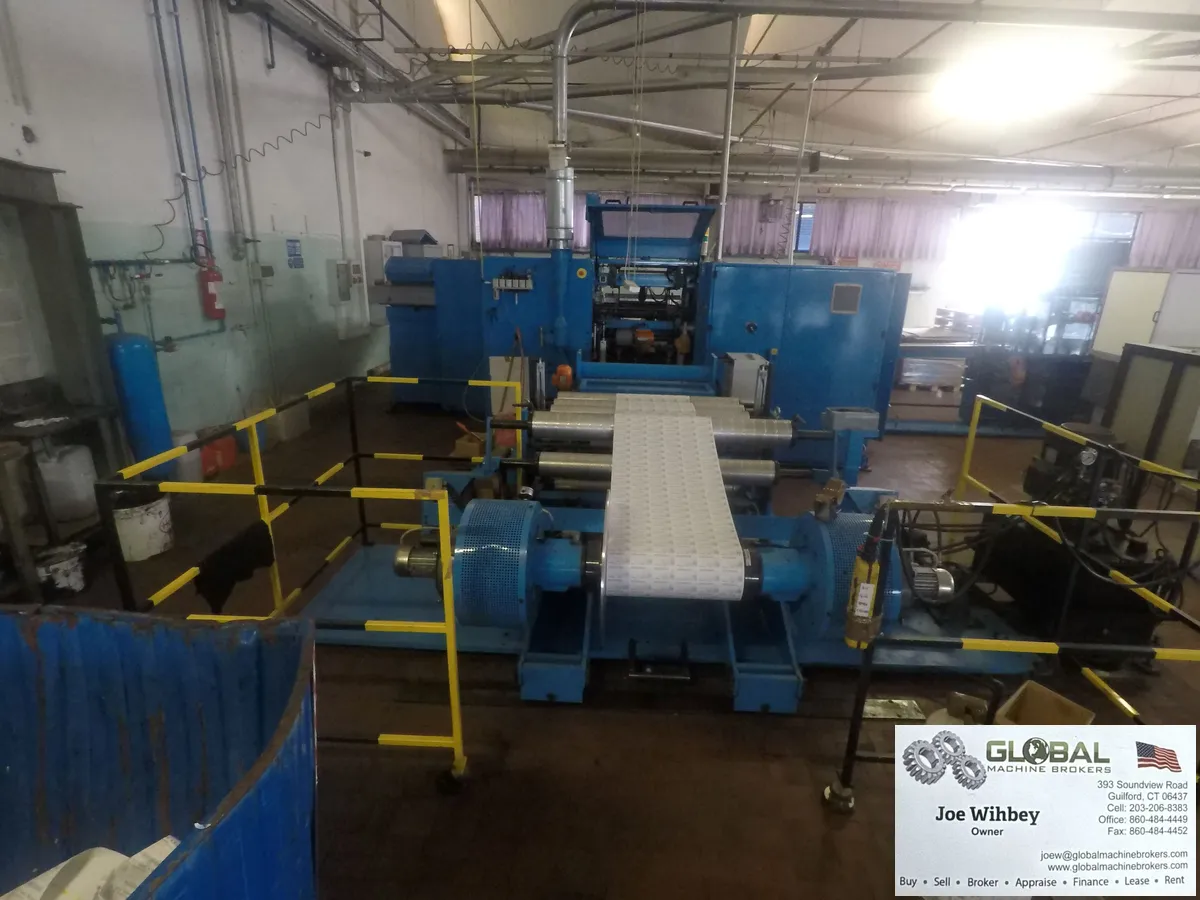

<p>Fully Automatic Slitter Re winder.This is one complete Machine line that consists of :</p><p>Lemu Roll Wrapper with Flexographic Unit:</p><p>Unwinder with integrated disc brake and pad grippers.<br>Electronic tape guide to maintain paper alignment.<br>Integrated flexographic printing unit with water-based, air-dried ink, allowing control of the <br>length, position, and placement of the printed strip.<br>Integrated barcode reader for reading printed codes (if present) in conjunction with a Windows <br>computer and specific software.<br>The machine is equipped with an automatic core changer, allowing it to work with different <br>formats by adjusting the blade position, pressure, roll length in meters, and roll length by counting <br>notches or measuring the final roll diameter. Once the wrapping cycle is complete, a cross-cut is <br>performed, followed by gluing the end of the roll and automatic ejection. Maximum wrapping <br>speed of 700 m/min with optional automatic cycles: continuous loading, winding, cutting, and <br>ejection. Once ejected, the rolls are transported by conveyor belts, first to the beater, which <br>corrects any imperfections, and then to the outfeed table for packaging and possible pallet <br>storage.<br>The machine is equipped with all safety devices and sensors that continue to function at full <br>capacity.<br>It also features a scrap dust extraction system</p><p></p>Lemu Roll Wrapping Machine with Die:<br>The machine consists of:<br><br>Unwinder with integrated disc brake with pad grippers.<br>Electronic ribbon guide to keep the paper aligned.<br>Hydraulic die that cuts the paper to mark the start of rewinding.<br>Hydraulic shaft with marker holders, with the option to manage the signature using the machine<br>software.<br>Integrated barcode reader to read printed codes (if present) in conjunction with a Windows<br>computer and dedicated software.<br>The machine is equipped with an automatic core loader, allowing for different formats by<br>adjusting the blade position, pressure, roll length in meters, and roll length by counting size<br>notches or by measuring the final roll diameter. Once the winding cycle is complete, a cross-cut is<br>performed, gluing the end of the roll, and automatic ejection.<br>Maximum packaging speed of 700 m/min with the option of automatic cycles, continuous loading,<br>rolling, cutting, and ejection.<br>Once the rolls are ejected, they are accompanied by conveyor belts, first to the beater, which will<br>correct any imperfections, and then to the outfeed table for packaging and possible storage on<br>pallets.<br>The machine is equipped with all safety devices and sensors, still fully functional.<br>It is equipped with a waste extraction system.<b><br><br>Specifications</b>(Find More in Pictures or attached PDF): <li><strong>Production Speed:</strong> Reaches up to <strong>700 m/min</strong> (approx. 2,296 fpm).</li><li><strong>Cycle Rate:</strong> Capable of up to <strong>200 cycles per hour</strong> (at 40m/131ft lengths).</li><li><strong>Material Compatibility:</strong> Standard paper weights from <strong>40 to 120 gsm</strong>.</li><li><strong>Mother Roll Capacity:</strong> Handles mother rolls up to <strong>1,250 mm in diameter</strong> and <strong>1,200 kg in weight</strong>.</li><li><strong>Finished Roll Range:</strong> Produces rolls with diameters from <strong>30 mm to 265 mm</strong>.</li><li><strong>Core Sizes:</strong> Compatible with external core diameters from <strong>14.5 mm to 58 mm</strong>.</li><p></p>
