<p>Make: Hyundai Precision Co LTD </p>
<p>Model: Tig Welding Type DC600A</p>
<p>Year: 1994</p><p>Condition: Used, Overall in Excellent shape, Major Maintenance done in 2020: All Revamped for Roll Stand, reducer (change for bearing), New Welder, New Heat treatment system for #1 Mill only, New conveyor and packing system, new bead grinder (wheel type) for #1 Mill only, new electric panel</p><!--StartFragment-->
<p>SOLD AS IS, WHERE IS WITHOUT ANY WARRANTY EXPRESSED OR IMPLIED </p>
<p>STILL IN OPERATION </p>
<p>LOCATED IN SOUTH KOREA</p>
<p></p>

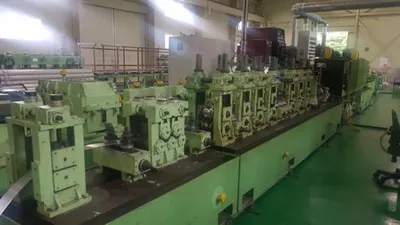

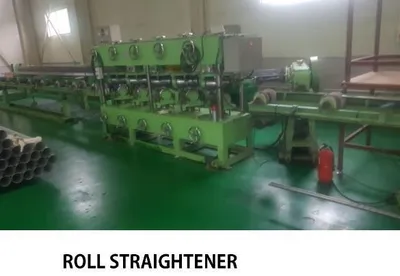

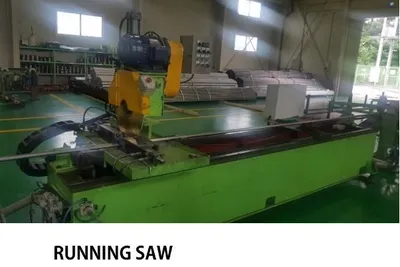

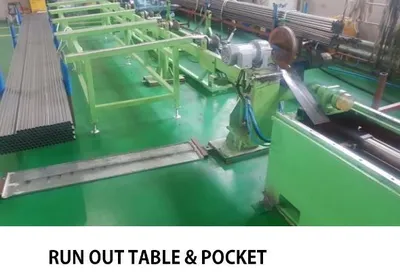

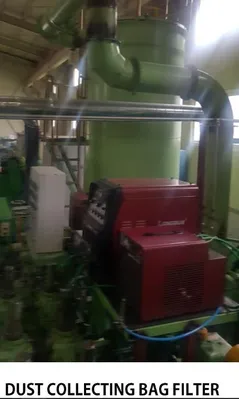

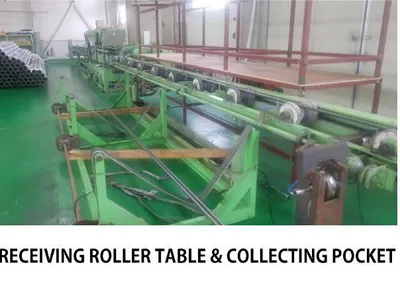

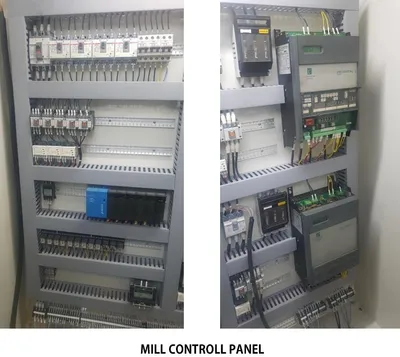

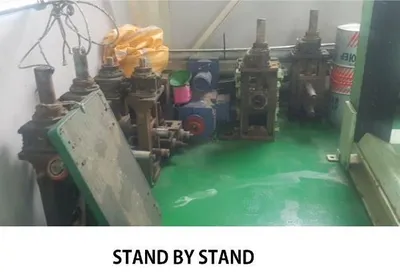

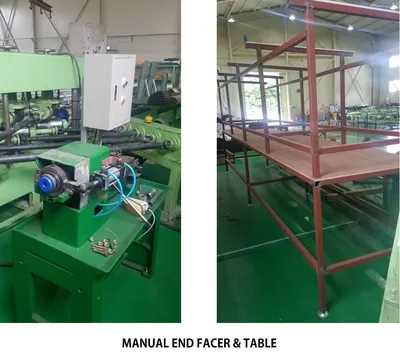

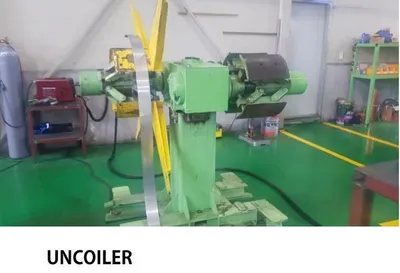

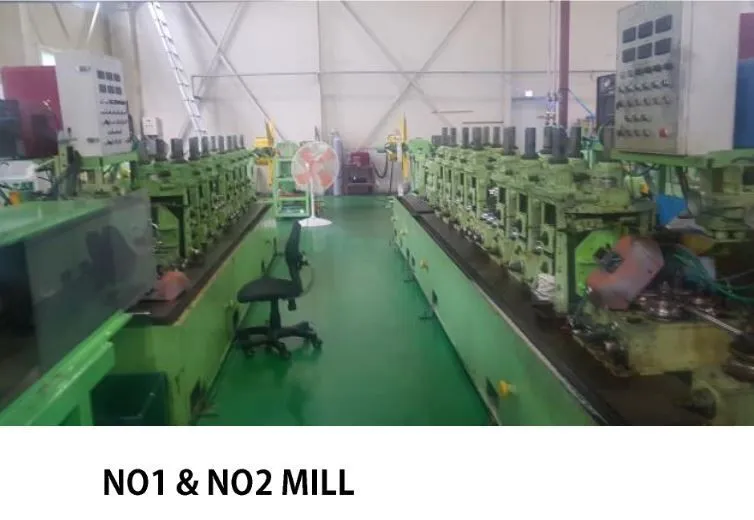

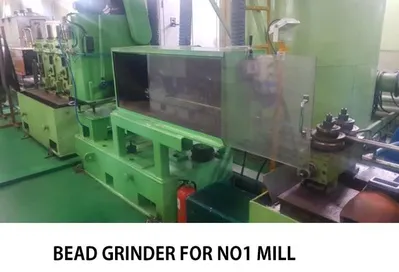

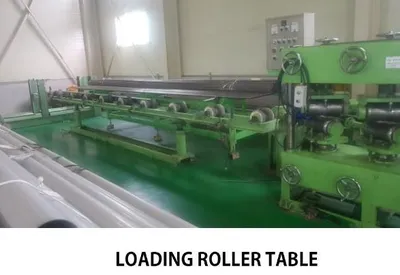

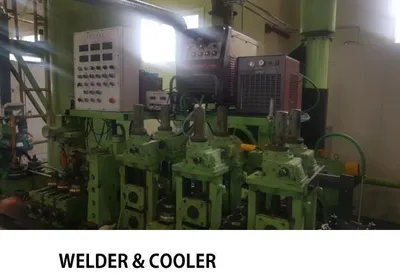

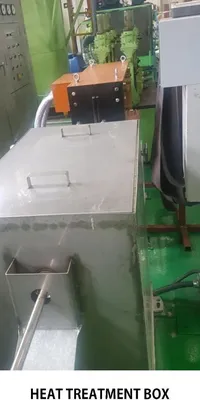

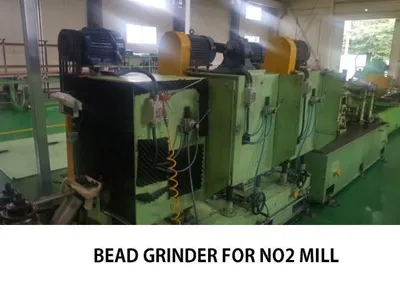

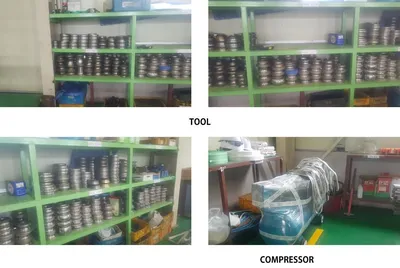

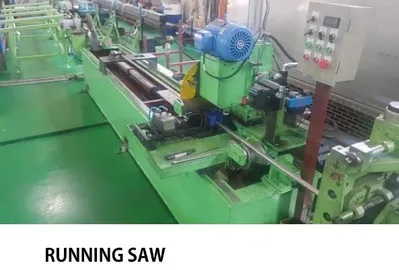

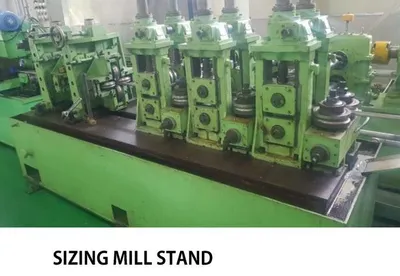

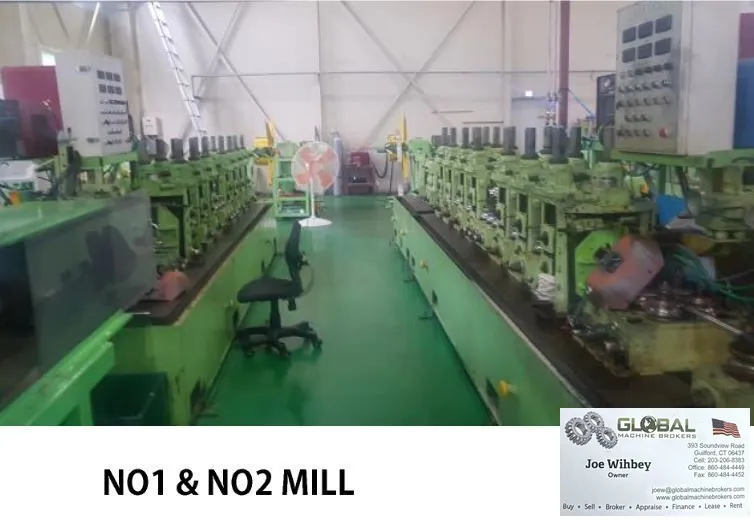

<!--EndFragment--><p>See PDF For all information.</p><p><b>COMPLETE SYSTEM! See below:</b></p><ul><li>(2) Mills</li><li>Forming mill stand and mill drive</li><li>Uncoiler </li><li>Welder and Cooler </li><li>Bead Grinder for each mill</li><li>Sizing mill stand </li><li>Dust Collecting Bag Filter </li><li>Heat Treatment Box </li><li>Mill Control Panel </li><li>Running saw</li><li>Run out table and pocket </li><li>Loading roller table </li><li>Roll straightener</li><li>Recieving Roller Table and collecting pocket </li><li>stand by stand </li><li>Manual End Facer and table </li><li>Compressor </li><li>Tools</li></ul><p><b><br></b></p><p><b>Specifications and information:</b></p><ul><li>Mill Speed: Average 3.5~4m per Minute</li><li>Product Pipe: Stainless steel structure pipe (ASTMA312, JISG 3459, KS D3576 (20S/Pressure Pipe)</li><li>Thickness: max 3mm</li><li>Width: 152.6mm Maximum 170mm</li><li>Pipe Product: 12.7mm Diameter ~48.6mm Diameter </li><li>Length: 6,000mm </li><li>Tool Sets: (8) 12.7mm 15.8mm 21.7mm 22.2mm 28.6mm 34mm 42.7mm 48.6mm </li><li>Heat Treatment: 450kw HF Heater Only equipped to #1 Mill</li><li>Mill Shaft Diameter: 60mm</li><li>Mill Forming Motor: DC 15KW</li><li>Mill Sizing Motor: 11kw</li><li>Roll Straightener 5 step roll straightener (180mm x 300mm) 7.5kw motor</li><li>Direction: Right to left </li><li>Factory Size: 18m x 35m</li><li>Accessories: (6) Spare mill stand Sets, (2) Guide Guide Stand sets, Air compressor, Manual end facer with table</li></ul><p><b><br></b></p><p><b>#1 Mill Line Description: </b></p><ol><li>Uncoiler (twin drum Type)</li><li>Pinch Roll For strip </li><li>Size guide roller</li><li>Forming stand (H=7Set, V=8set) with drive reducer motor</li><li>Squeeze roller stand </li><li>Welding Roller (3 Stand)</li><li>Welder 600A and welding torch</li><li>Bead Grinder ( 3 stand /2=wheel type, 1 belt type)</li><li>Fin pass stand (H=3, V=4)</li><li>Heat Treatment unit (heater, cooler, evapcon, electric controller)</li><li>Sizing stand and truck head stand with drive box</li><li>length cutting machine: 380mm Diameter Blade</li><li>Run out roller table with kicker </li><li>unloading table with kicker and receiving pocket </li><li>operation panel </li></ol><p></p><p><b>#2 Mill Line Description(excluding Heat Treatment unit): </b></p><!--StartFragment-->
<!--StartFragment-->

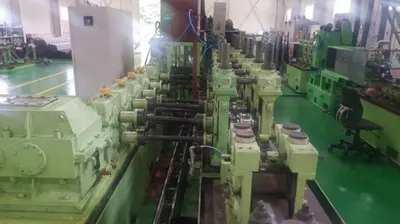

<ol><li>Uncoiler (twin drum Type)</li><li>Pinch Roll For strip</li><li>Size Guide roller (2 sets)</li><li>Strip Leveller </li><li><!--StartFragment-->Forming stand (H=7Set, V=8set) with drive reducer motor<!--EndFragment--></li><li>Squeeze roller stand </li><li>Welding Roller (3 Stand)</li><li>Welder 600A and welding torch</li><li>Bead Grinder </li><li>Sizing stand and truck head stand with drive box<br></li><li>Mill Coolant Tank </li><li>length cutting machine: 480mm diameter</li><li>run out roller table with kicker </li><li>Unloading table with kicker and receiving pocket</li><li>Operation Panel </li></ol><p>Please Reach out for more information.</p><br>
