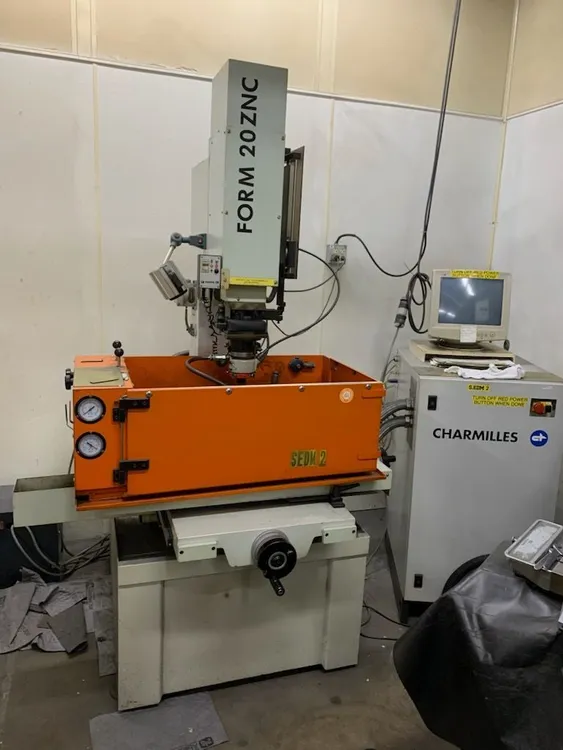

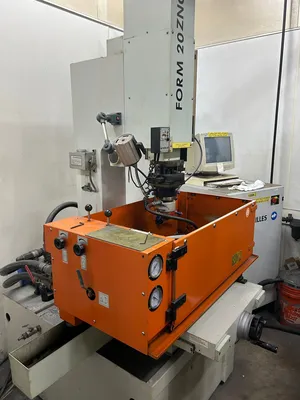

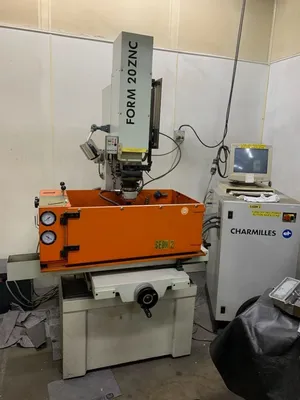

Charmilles Form 20ZNC Precision Sinker EDM Machine w/ System 3R

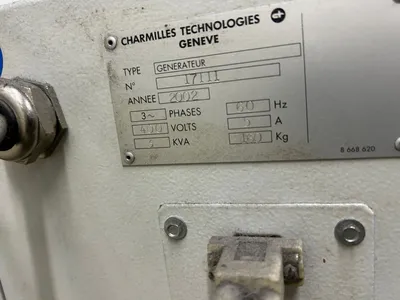

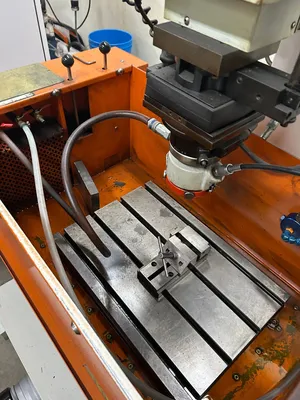

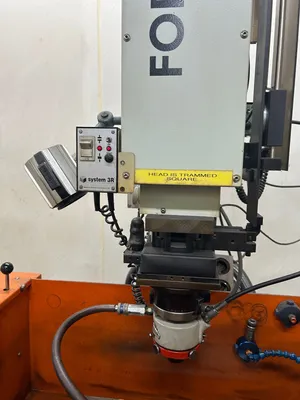

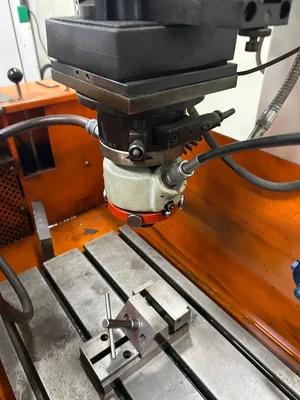

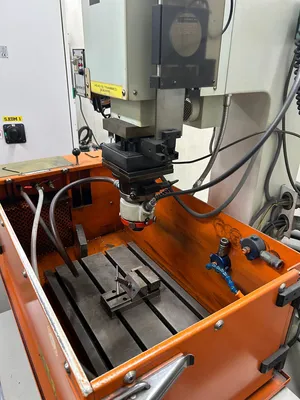

<p>Make: Charmilles </p> <p>Model: Form 20ZNC </p><p>Serial No: 17111</p><p>Year: 2002</p> <p>Condition: Used, Overall in Great shape - On Shop Floor and Under Power</p> <p></p> <p>VICE IN PHOTO IS NOT INCLUDED&nbsp;</p> <p>Precision EDM Machine&nbsp;</p> <p>Rotobore Drive Included </p> <p>System 3R Head and Controls Included&nbsp;</p> <p>400 Volts 3 Phase 3 KVA</p> <p>Rotobore Drive Included&nbsp;</p> <p></p> <p>Specifications:&nbsp;</p> <p>Machine dimensions 2460 × 1340 × 2130mm (<!--StartFragment-->96.9 × 52.8 × 83.9 in<!--EndFragment-->)<br>Machine weight 1100 kg (<!--StartFragment-->2,425 lbs<!--EndFragment-->)<br>XYZ axis travels 300 × 200 × 300 (<!--StartFragment-->11.8 × 7.9 × 11.8 in<!--EndFragment-->)<br>Measuring devices by linear scales on all axes<br>Ririsolution un of the measurement one micron&nbsp;<!--StartFragment-->0.000039 in<!--EndFragment--><br>Motorized axis Z<br>Manual axes X Y<br>Maximum electrode weight kilograms 60 (<!--StartFragment-->132 lbs<!--EndFragment-->)<br>Minimum/maximum distance between spindle and table 250 to 550 mm (<!--StartFragment-->9.8 to 21.7 in<!--EndFragment-->)<br>Maximum workpiece weight 500 kg (<!--StartFragment-->1,102 lb<!--EndFragment-->)<br>Table dimensions width by depth 500 × 350 mm (<!--StartFragment-->19.7 × 13.8 in<!--EndFragment-->)<br>Number of grooves three<br>Size of grooves 12 mm (<!--StartFragment-->0.47 in<!--EndFragment-->)<br>Distance between grooves 100 mm (<!--StartFragment-->3.94 in)<!--EndFragment--><br>Minimum level of dielectric 120 mm (<!--StartFragment-->4.7 in)<!--EndFragment--><br>Maximum dielectric level 320 mm (<!--StartFragment-->12.6 in<!--EndFragment-->)<br>Internal tank dimensions 815 × 500 × 300 mm (<!--StartFragment-->32.1 × 19.7 × 11.8 in<!--EndFragment-->)<br>Front door width 800 mm (<!--StartFragment-->31.5 in<!--EndFragment-->)<br>Dielectric plant with paper filters<br>Dielectric volume 280 liters (74 Gallons)</p> <ul></ul>
