<p>Make: Schiess</p><p>Model: <!--StartFragment--><!--StartFragment-->SCHIESS 25DSC 200 P<!--EndFragment--><!--EndFragment--></p><p><!--StartFragment--><!--StartFragment-->Serial No 9301202<!--EndFragment--><!--EndFragment--></p>
<p>Year New: 1992</p>
<p>Condition: Used, overall in Excellent Shape </p>
<p>Rigging not included </p>
<p></p>

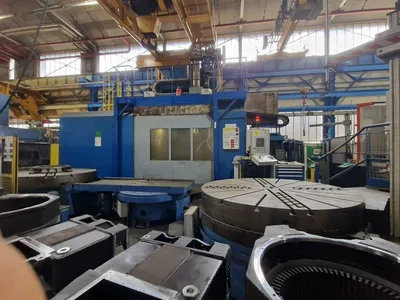

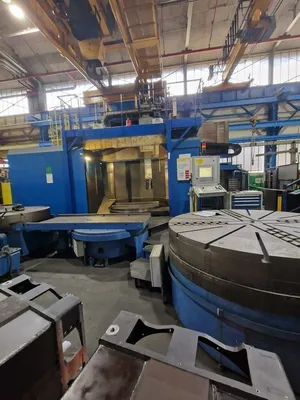

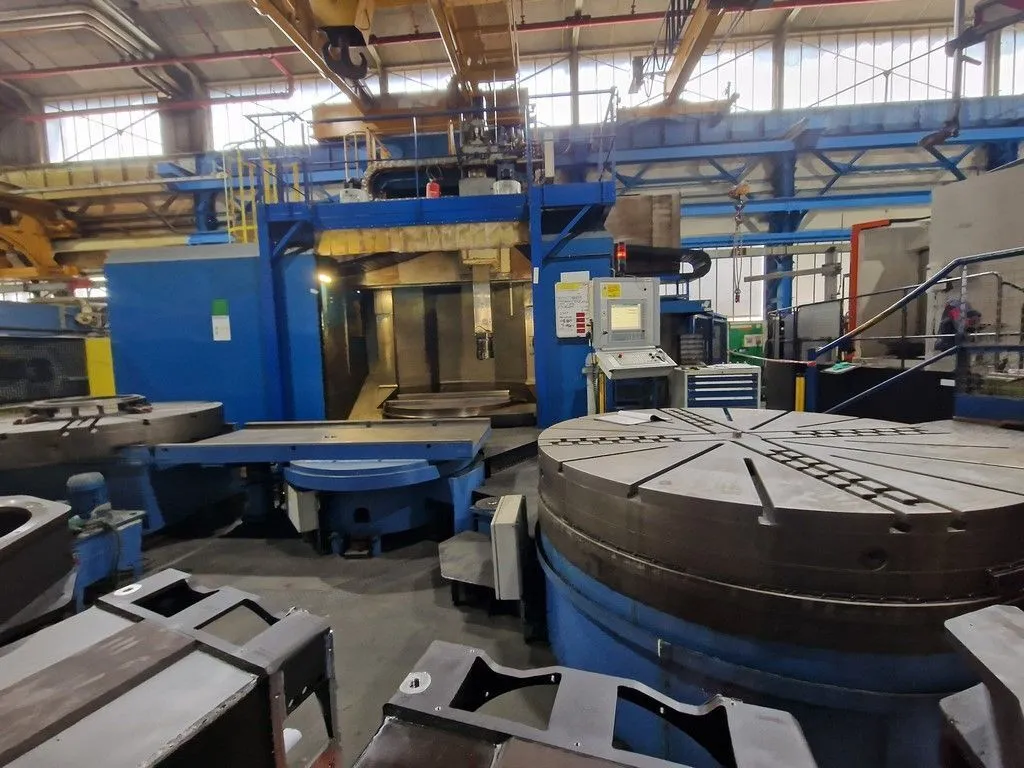

<p>Vertical CNC Lathe Turning Center with Milling Spindle And Pallet Changer</p>
<ul><li>1 Milling Head WidaFlex </li><li>1 Milling Head ISO 50 </li><li>Renishaw Touch Probe (For parts) MP60</li><li>Tool Presetter </li><li>Tansmit Function: G20/G21</li><li>No Ridget Tapping </li><li>Chip Conveyor</li><li>Front Door: Partial Opening M0 / Full Opening</li></ul>
<div><br></div>
<p>Specifications: </p>
<p><!--StartFragment-->
</p>

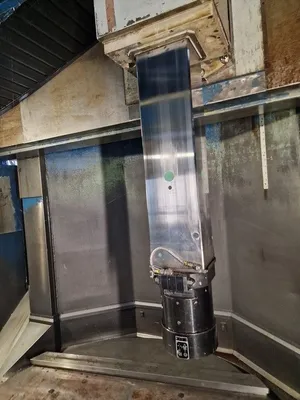

<p><strong>Ram Z stroke:</strong> 1000 mm → <strong>39.37 in</strong> (≈ <strong>3 ft 3.37 in</strong>)</p>
<p><strong>Max turning diameter:</strong> 2500 mm → <strong>98.43 in</strong> (≈ <strong>8 ft 2.43 in</strong>)</p>
<p><strong>Max table speed:</strong> 201 rpm → <strong>201 rpm</strong> (no unit change)</p>
<p><strong>Table power:</strong> 56 kW → <strong>75.10 hp</strong> (mechanical horsepower, rounded)</p>
<p><strong>Number of gears (turning):</strong> 2 → <strong>2</strong></p>
<p><strong>Movable crossrail — 12 positions</strong><strong><br></strong><br></p>
<p><strong>- Pitch:</strong> 50 mm → <strong>1.97 in</strong> (≈ <strong>0 ft 1.97 in</strong>)</p>
<p></p>
<ul>
</ul>
<p><strong>Space available under the spindle nose</strong></p>
<p>
</p>
<p>- Min (crossrail pos. 1): 795 mm → <strong>31.30 in</strong> (≈ <strong>2 ft 7.30 in</strong>)</p>
<p></p>
<p>
</p>
<p>- Max (crossrail pos. 12): 1345 mm → <strong>52.95 in</strong> (≈ <strong>4 ft 4.95 in</strong>)</p>
<p></p>
<ul>
</ul>

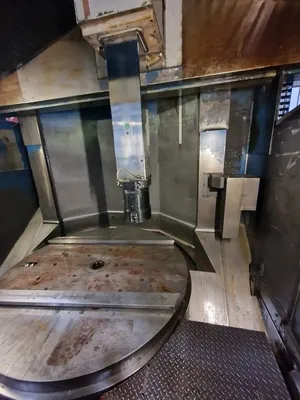

<p><strong>Table diameter:</strong> 2000 mm → <strong>78.74 in</strong> (≈ <strong>6 ft 6.74 in</strong>)</p>
<p><strong>Number of tables:</strong> 2 → <strong>2</strong></p>
<p><strong>Load (table included):</strong> 16,000 kg → <strong>35,273.96 lb</strong></p>
<p><strong>X / Z max feedrate:</strong> 2000 mm/min → <strong>78.74 in/min</strong> (≈ <strong>6.56 ft/min</strong>)</p>
<p><strong>C axis:</strong> 360,000 positions → <strong>360,000 positions</strong></p>
<p><strong></strong></p>
<!--StartFragment-->
<p><strong>Milling spindle</strong></p>
<p>
</p>
<p>-Max speed: 1600 rpm → <strong>1600 rpm</strong></p>
<p></p>
<p>
</p>
<p>-Power: 22.55 kW → <strong>30.24 hp</strong> (rounded)</p>
<p></p>
<p>
</p>
<p>-Number of gears (milling): 2 → <strong>2</strong></p>
<p></p>
<ul>
</ul>
<p><strong>Tool magazine</strong></p>
<p>
</p>
<p>-Turning tools: 20 positions → <strong>20</strong></p>
<p></p>
<p>
</p>
<p>-Milling tools: 35 positions → <strong>35</strong></p>
<p></p>
<ul>
</ul>
<p><strong>Max tool length:</strong> 400 mm → <strong>15.75 in</strong> (≈ <strong>1 ft 3.75 in</strong>)</p>
<p><strong>Max tool weight:</strong> 40 kg → <strong>88.18 lb</strong></p>
<!--EndFragment-->
