<p>Make: Wavetek</p>
<p>Model: 186</p>

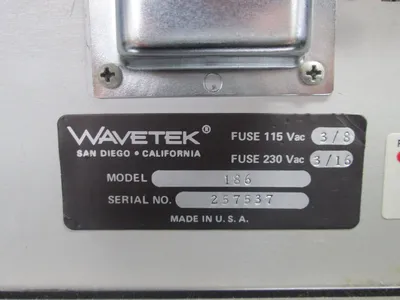

<p>Serial No: 257537</p>

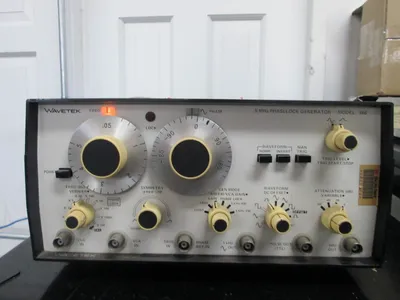

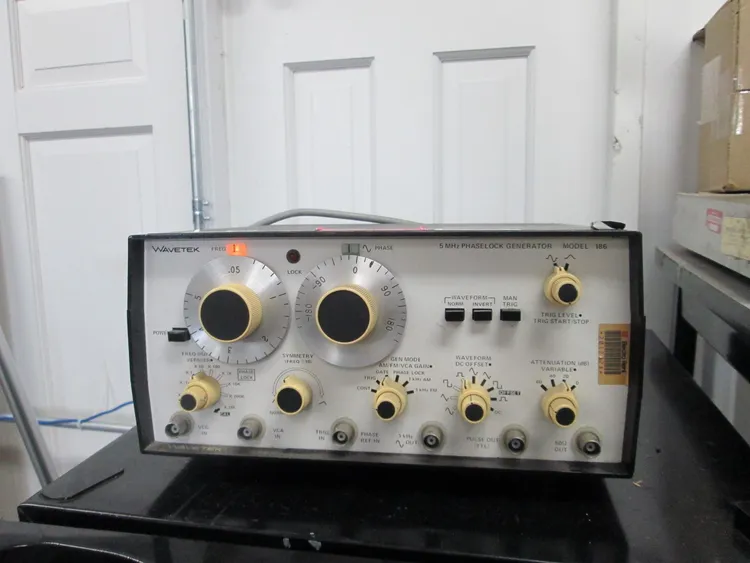

<p>Condition: used, Overall in Great Shape. </p><p>Made in the USA</p><p></p><p>5MHz Phase lock function Generator </p><p><b>Key Features:</b></p><ul><li><!--StartFragment--><strong>Wide frequency range:</strong> Capable of producing signals from 0.001 Hz to 5 MHz.<!--EndFragment--></li><!--StartFragment--><li><strong>Multiple waveforms:</strong> Can generate several waveforms, including sine, square, triangle, ramp, pulse, and DC.</li><li><strong>Phaselock and frequency control:</strong> Features a phaselock mode and flexible frequency control via manual dial, external voltage (VCG), or an internal ramp voltage.</li><li><strong>Versatile modulation:</strong> Includes modes for Amplitude Modulation (AM) and Frequency Modulation (FM).</li><li><strong>Adjustable symmetry:</strong> Offers continuous adjustment of waveform symmetry, allowing for variable duty cycle pulses and asymmetrical waveforms.</li><li><strong>Outputs:</strong> Provides a main 50-ohm output and a separate sync output.</li></ul><p><b>Specifications: </b></p><!--StartFragment--><li><strong>Frequency range:</strong> 0.001 Hz to 5 MHz</li><li><strong>Amplitude range:</strong> 10 mVpp to 30 Vpp (peak-to-peak)</li><li><strong>Waveforms:</strong> Sine, Square, Triangle, Ramp, Pulse</li><li><strong>Output impedance:</strong> 50 ohms</li><li><strong>Modulation:</strong> AM, FM</li><!--EndFragment--><p></p><p></p>
