Minster P2H-160 Press w MS Willett 6 Lane Transfer- VERY NICE!

Description

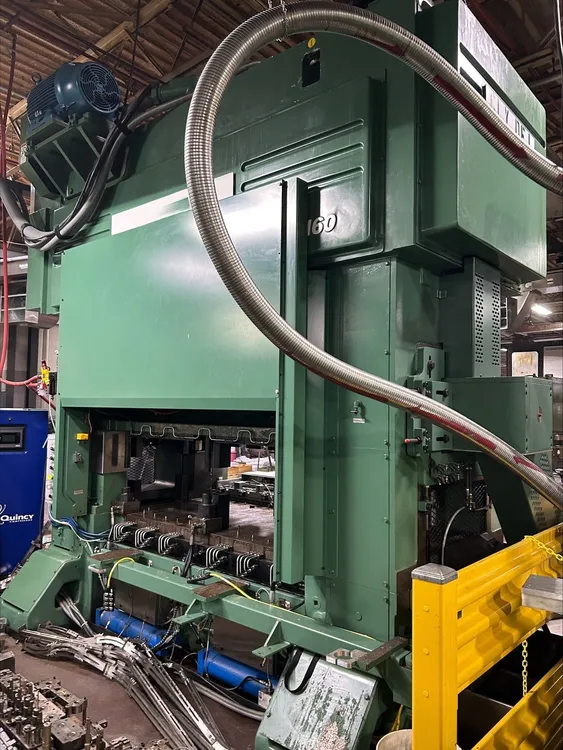

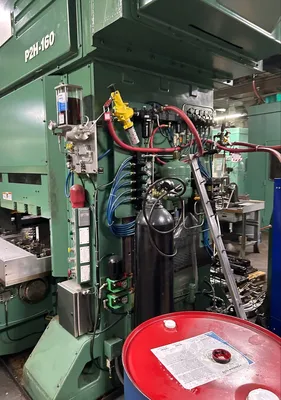

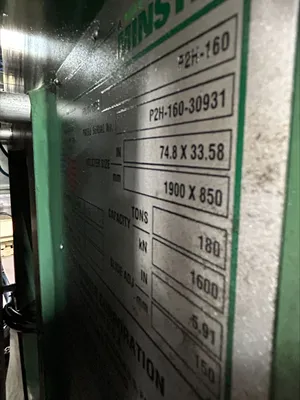

Minster P2H-160!!! New 2015
* 150 MM Stroke (5.91")
* 150 MM Adjustment

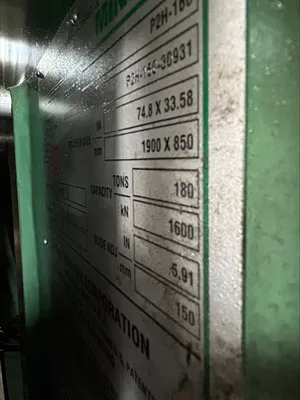

* Bed Size - 1900 x 850 MM (74.8 x 33.58)
* Tonnage: 180 Tons / 1600 kN

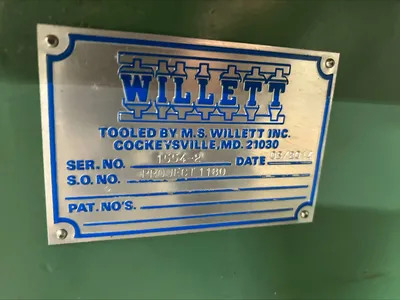

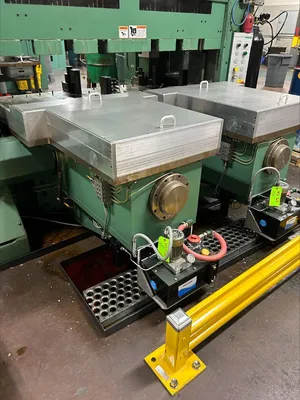

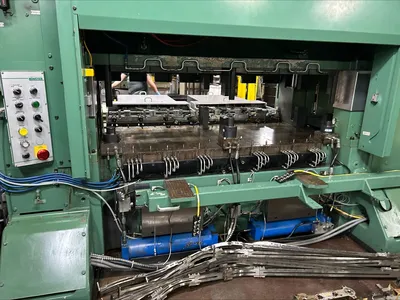

* MS Willett High Speed Transfer System and Tooling
* Air Dynamics Vacuum Scrap Removal System

** This is a very special press. We are not just selling a P2H-160. **

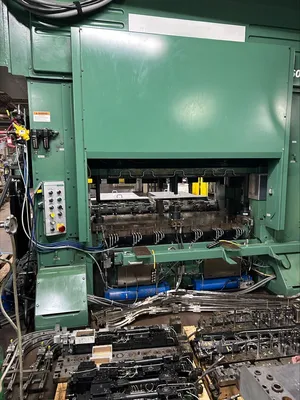

This is an MS Willett Minster Super Duper 6 lane Transfer Press!
* The press can be run in any configuration of 6 transfers at once.
* The tooling / die set up is for 9 operations.

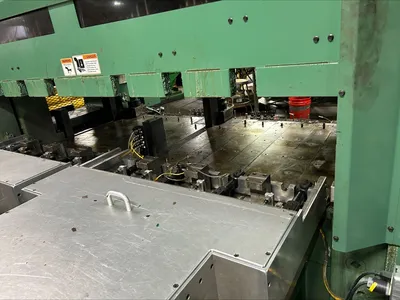

* The transfer is from rear to front of the bed in the narrow direction of the bed. The bed is 34" front to back and the transfer is 34".
* Tooling Center Distance is 3.5"
* Cup Fed from rear and includes the 10th Operation to accept and feed in the cups.
* Accepts 6 rows of cups at the same time. Feeds in the cups and draws the cups to shape.

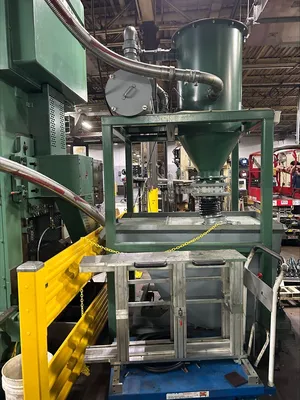

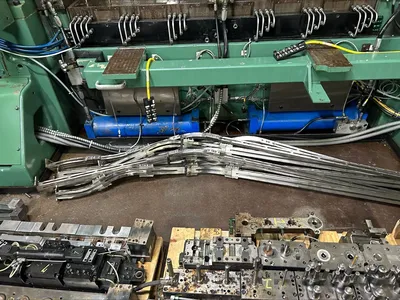

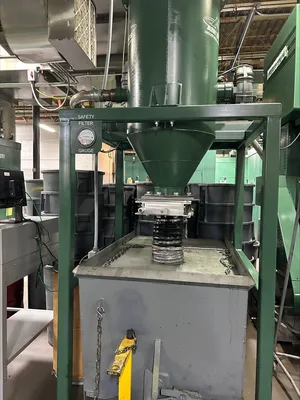

* Vacuum Dynamics Scrap Removal System - sucks scrap rings out for 6 stations and deposits it in a scrap bin. Rotron Blower / Cyclone separation compact system.

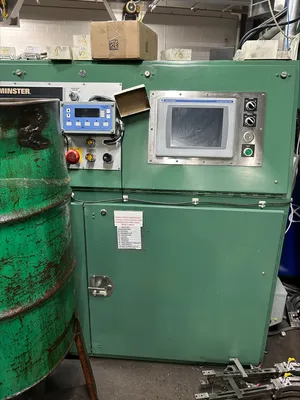

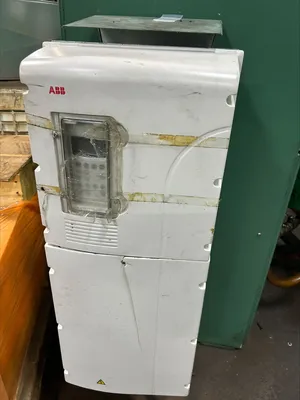

* ABB Inverter Speed Controller Drive System.
* Press was set up to run AAA Battery cans and runs 150 parts / minute x 6 lanes = 900/Min.
* Entire project has minimal run time on it. Seller says maybe a month of run time.

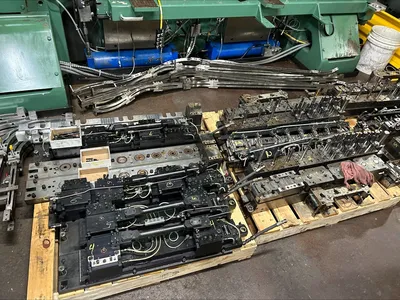

* Sale includes everything you see in photos but battery specific tooling - no punches, dies or fingers. They are for sale but at a price of $150,000.

* Sale includes all drawings of machine (books and prints from Minster), Punch / Die / Transfer tooling holder drawings - not tooling drawings.

* Presses can be inspected under power in OH.
