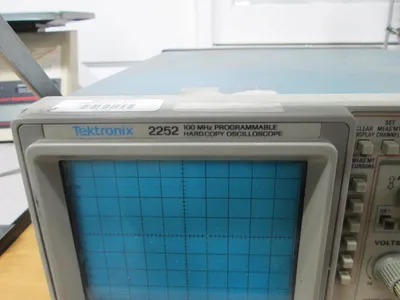

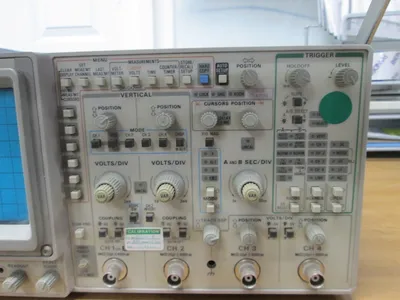

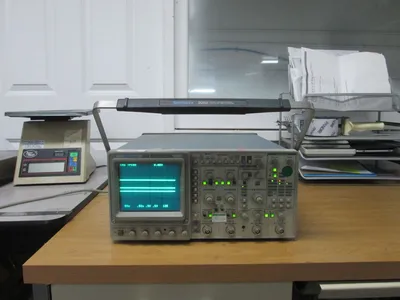

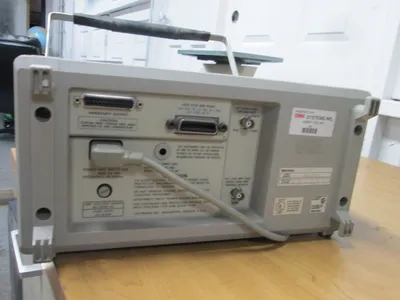

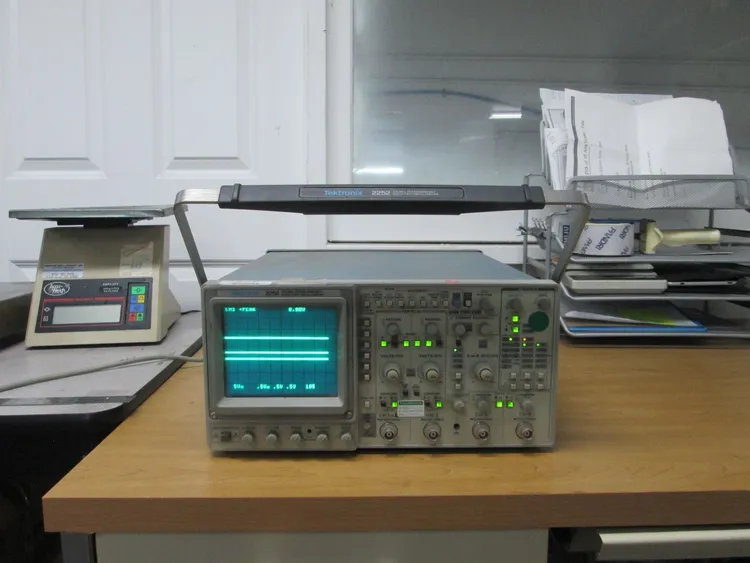

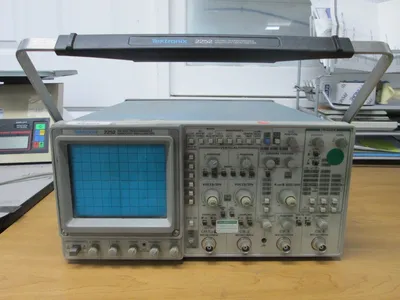

Tektronix 2252 Four Channel 100MHz Portable Analog Oscilloscope

<p><b>Specifications:&nbsp;</b></p><ul><li>Vertical Operating Modes:&nbsp;<!--StartFragment-->CH1, CH2, CH3, CH4, CH2 Invert, Add, Alt, Chop (625 kHz)</li><li>Input Impedance:&nbsp;<!--StartFragment-->1 MΩ ±1.0% // 20 pF ±1 pF<!--EndFragment--></li><li>Maximum Input Voltage:&nbsp;<!--StartFragment-->400 V (DC + peak AC) or 800 V (p-p ac at ≤ 10 kHz)<!--EndFragment--></li><li>A Time Base Sweep Speeds:&nbsp;<!--StartFragment-->0.5 s/div to 20 ns/div in 1-2-5 sequence.<!--EndFragment--></li><li>B Time Base Sweep Speeds:&nbsp;<!--StartFragment--> 5 ms/div to 20 ns/div in 1-2-5 sequence, with ×10 magnifier extending to 2 ns/div.<!--EndFragment--></li><li>Time Base Accuracy:&nbsp;<!--StartFragment-->±0.75%<!--EndFragment--></li></ul><p></p>
