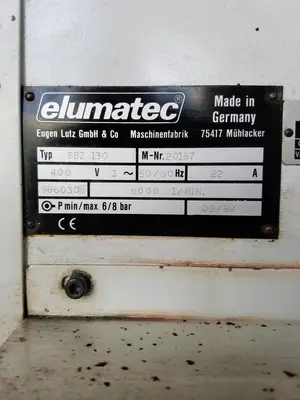

<p>Make: Elumatec<br/>Model: SBZ 130 /01<br/>Serial No: 20187<br/>Condition: Used, Overall in Excellent shape</p>

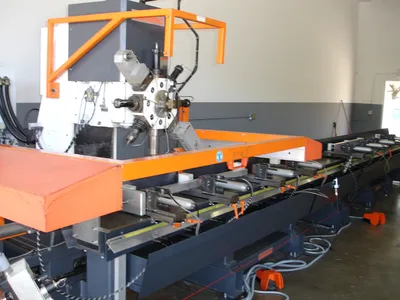

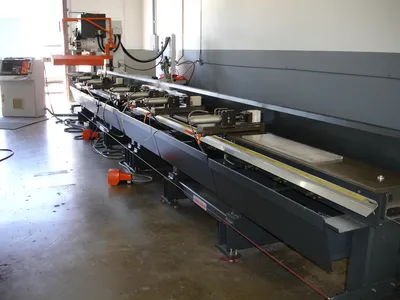

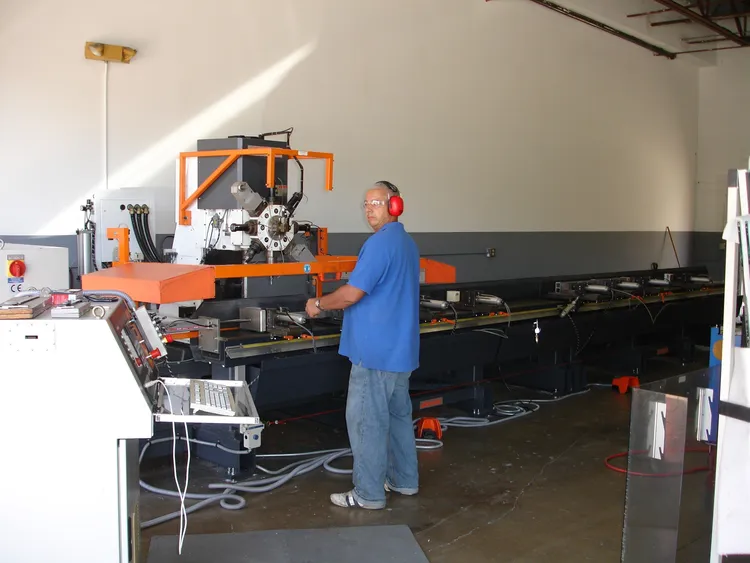

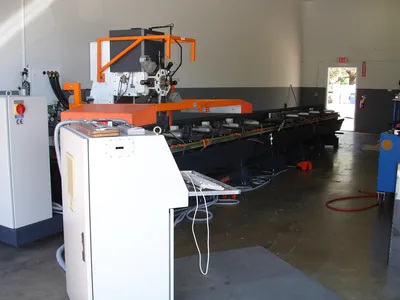

<p>Aluminum 3 Axis Machining Center. Perfect machine for automatic door manufacturing with single or multiple locks or other industrial applications.</p>
<p>Will need a rigger to load a flat bed upon sale. Please reach out.</p><br/><br/><p><b>Specifications: </b></p>
<ul><li><!--StartFragment-->Standard Table Area: 291.3”(7400) <!--EndFragment--></li><li><!--StartFragment-->Table Capacity, X Axis: Routing Capacity Face Side: 253.9” (6450mm) <!--EndFragment--></li><li><!--StartFragment-->Table Capacity, Y Axis: 11.81” (300mm) <!--EndFragment--></li><li><!--StartFragment-->Routing Capacity Top: 9” <!--EndFragment--></li><li><!--StartFragment-->Routing Capacity Front 7” <!--EndFragment--></li><li><!--StartFragment-->Table Capacity, Z Axis: 11.8” (380mm) <!--EndFragment--></li><li><!--StartFragment-->Routing Capacity Top: 11” <!--EndFragment--></li><li><!--StartFragment-->Step Over Capacity 7.3” <!--EndFragment--></li><li><!--StartFragment-->Maximum Spindle Speed:15,000 RPM <!--EndFragment--></li><li><!--StartFragment-->Power Output, Router Spindle: 8.1 HP, 400/480 volt, 3 phase <!--EndFragment--></li><li><!--StartFragment-->Maximum Profile Height/Step Over: Max 11”, Software Forced Front/Rear Machining-No
Step Over From Front to Rear of Profile. Head Runs Around Zero Point to Address</li></ul>
<p><b>Machine Operations: </b></p>
<ul><li><!--StartFragment-->Maximum Diameter of Tooling: 2.4”
<!--EndFragment--></li><li>Maximum Diameter of Disk Cutter: Manual - 7.87” <!--StartFragment-->Automatic – 3.62”

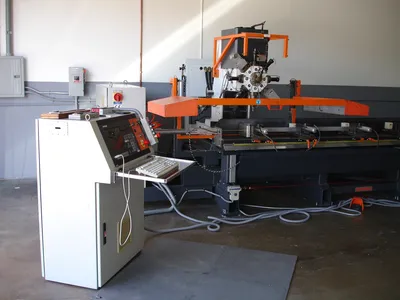

<!--EndFragment--></li><li><!--StartFragment-->Max Air Pressure: 102 PSI <!--EndFragment--></li><li><!--StartFragment-->Max Length of Tooling (Top): 7.9” <!--EndFragment--></li><li><!--StartFragment-->Max Dia. Shaft for ER-32 Collet: .78” <!--EndFragment--></li><li><!--StartFragment-->Max Dia. Shaft for ER-16 Collet: .511” Angle Head Capacity Collet <!--EndFragment--></li><li><!--StartFragment-->Max Dia. Shaft for 077 Collet: .394” <!--EndFragment--></li><li><!--StartFragment-->Tapping Capacity: Up to 0.375” @ 65% Thread (With Float Collet – ER32 Collet Size) <!--EndFragment--></li><li><!--StartFragment-->Tool Chuck: HSK F63 <!--EndFragment--></li><li><!--StartFragment-->Tool Holder for Auto Tool Change: 8</li></ul><p><b>Equipped With: </b></p><ul><li><!--StartFragment-->•Software </li><li>•PC Based Control </li><li>•Machining 3 Sides of Profile </li><li>•Linear Guides for X Y Z Travel </li><li>•Profile is Held by Adjustable Pneumatic Clamps </li><li>•Automatic Tool Changer with 6 Top Tool Holders & 2 Angle Head </li><li>•Horizontal Pneumatic Clamps </li><li> •Pulse Spray Mist Coolant System</li><li>•Tool Height Gauge</li><li>•Misc Tooling<!--EndFragment--></li></ul>
