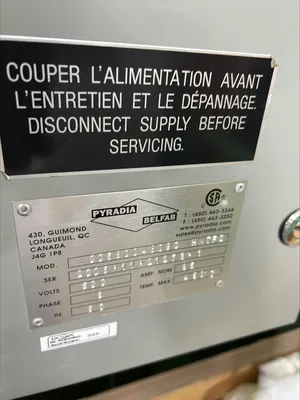

<p>Make: Pyradia Belfab<br>Model: W00580048090 HMTFD<br>Serial No: 2006.11.21273.F<br>Condition: used, overall in Excellent shape Operates perfectly, has not been used in 10 years.<br>Loading not included. Needs to be rigged off sellers shop floor and onto a flatbed trailer- Price to load is $1350</p>

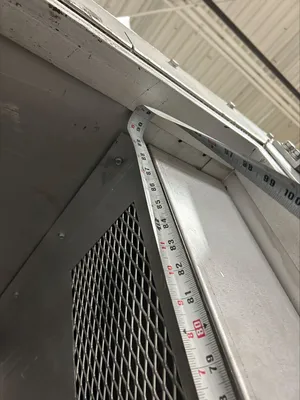

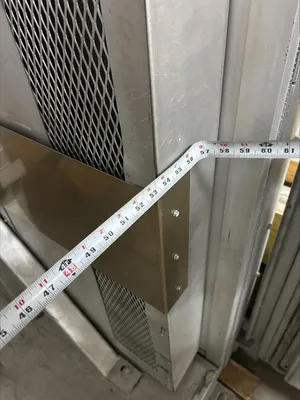

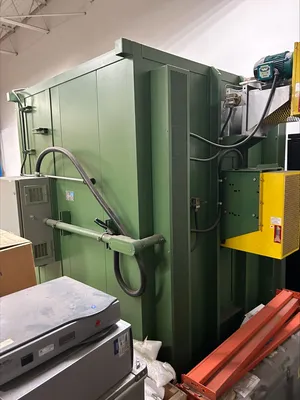

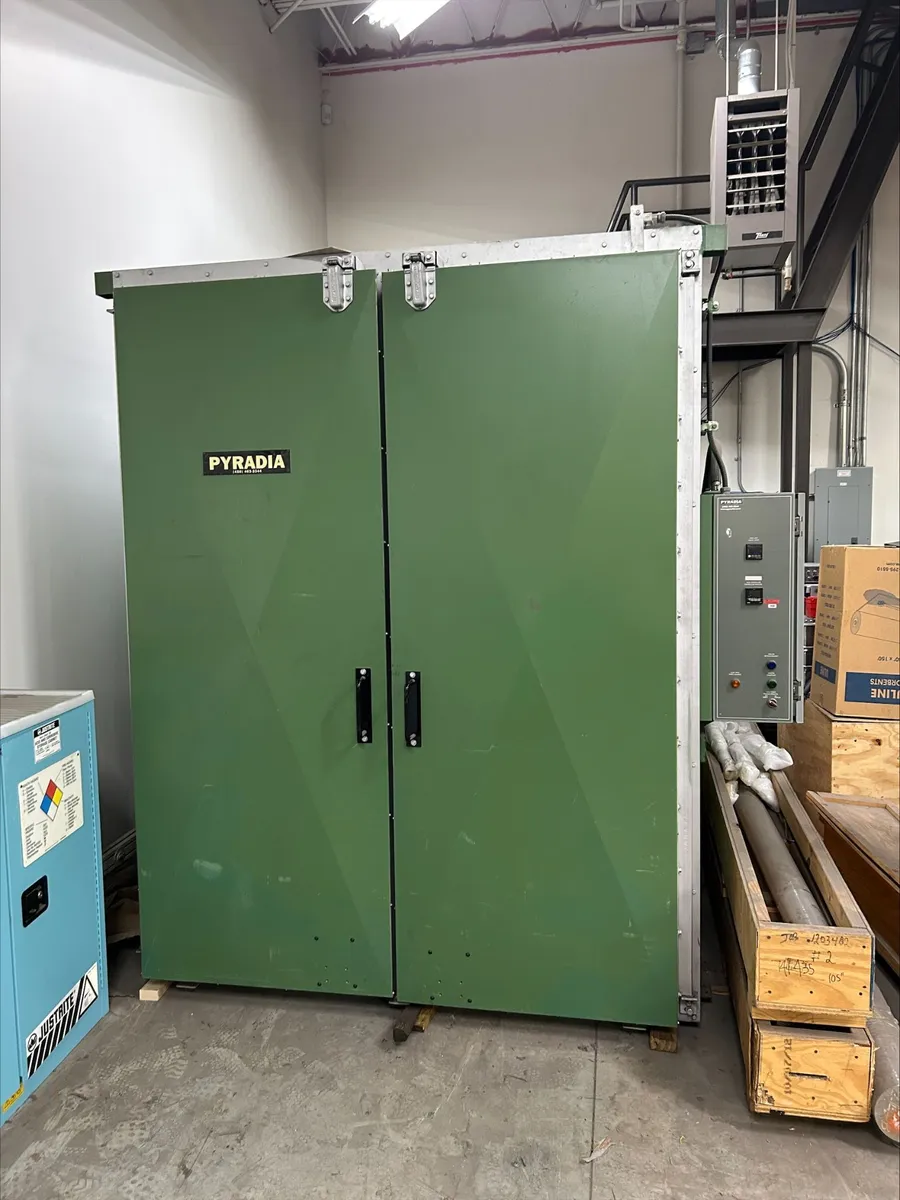

<p>Walk in Industrial oven<br>Interior Dimensions: 54"wide x 54"deep x 90" Tall<br>Outside dimensions: 7'11"wide x 9'3" Deep x 9'5" Tall x 5200 lbs</p>
<p><br><br></p>

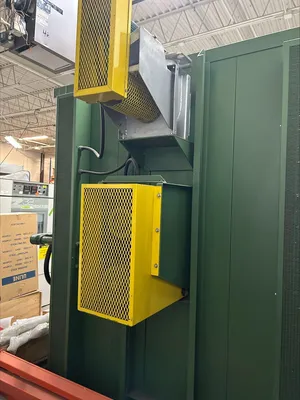

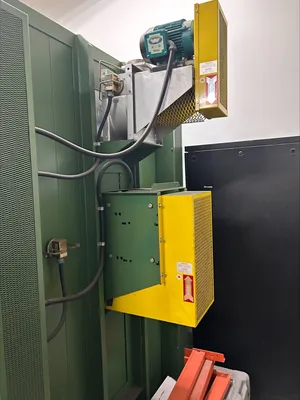

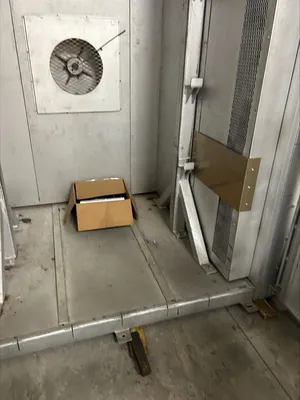

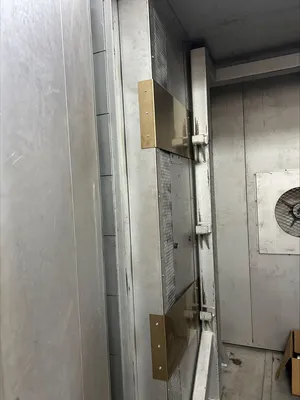

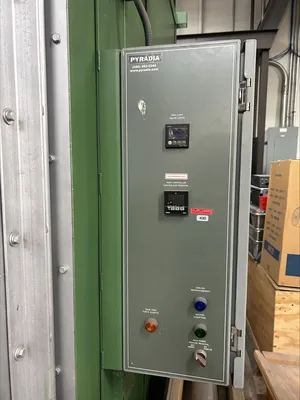

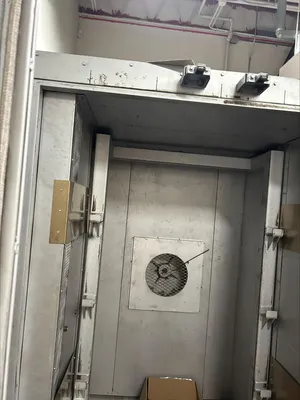

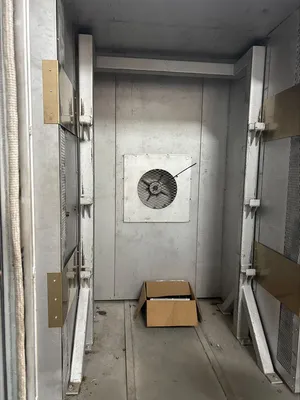

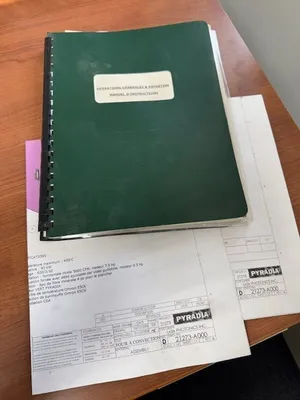

<ul><li>Coil Carry Rack Inside can be removed </li><li>Omron E5CK Programmable digital temperature controller with omron high limit E5CN Controller </li><li>All Stainless Steel inside construction! Super Clean!</li><li>2 HP Main Blower Air Circulation </li><li>1/2HP Exhaust Blower </li><li>Double 33" wide swing out hinged doors with Honeywell micro switch safety shut off </li><li>Volts: 600</li><li>Amps: 95 Nominal </li><li>Max Temp: 450C or 842F</li><li>Includes operation manual and electrical drawings</li></ul>
<div><br></div>

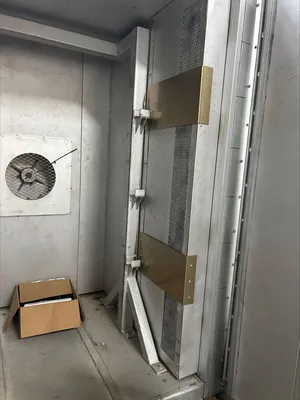

<p>From Pyradia Website:</p>
<p>Unique Mixed-Horizontal <!--StartFragment--><!--StartFragment-->pattern propels the air transversely across the door opening, acting as an air curtain<!--EndFragment--><!--EndFragment-->. <!--StartFragment--><!--StartFragment-->The air is then forced horizontally from the front of the oven to the back, fully and evenly surrounding the load<!--EndFragment--><!--EndFragment--></p>
<p><!--StartFragment--><!--StartFragment-->Oven can be adjusted to meet or exceed the tightest military and aeronautic specifications to +/- 5°F (3°C) when required.<!--EndFragment--><!--EndFragment--></p>
<p><!--StartFragment--><!--StartFragment-->The outer casing is a fully welded, 1/4’’ angle iron structure lined with16 gauge HRS.<!--EndFragment--><!--EndFragment--></p>
<p><!--StartFragment--><!--StartFragment-->The inner structurally reinforced cage is free floating to prevent distortion and minimize heat transfer to outer casing. All exposed parts are fully protected by aluminized steel. Doors are equipped with industrial explosion relief latches.<!--EndFragment--><!--EndFragment--></p>
<!--StartFragment-->
<p>Different grades of industrial mineral fiber panels are staggered to minimize heat loss and eliminate risk of collapsing.</p>
<!--StartFragment-->
<p>The industrial, belt-driven, recirculating fans are driven by high-efficiency TEFC motors. The shaft cooling mechanism fully protects the heavy-duty expansion bearings. Fan is disactivated when door is opened.</p>
