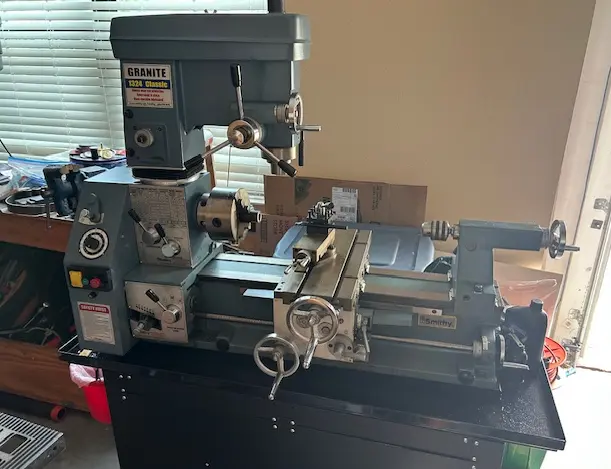

Smithy Granite Classic 1324 Combo Lathe 3 in 1 Benchtop Lathe 110v

<p><b>General Specifications:</b></p><ul><li>General Dimensions(Not including Bench): 39"T x 46"L x 22.5" w&nbsp; 665Lbs</li><li>T-slot size: 7/16"</li><li>Powered X,Y Feed</li><li>Table Size: 6-3/4" x 17-3/4"</li><li>Threading Dial</li></ul><p><b>Lathe Specifications:&nbsp;</b></p><ul><li>Distance Between Centers: 24"</li><li>Swing over bed: 13"</li><li>Swing Over Work Table: 7.5"</li><li>Tool Post Travel: 3-3/16"</li><li>Head Stock Taper: MT4</li><li>Lathe Chuck: 3 Jaw&nbsp;6" Diameter (D1-4 Camlock Mount)</li><li>Lathe Chuck Bore: 1.6"</li><li>Spindle Bore: 1.125"</li><li>Spindle Speeds: Variable (0-2800 RPM)</li><li>X Axis Travel (w/ tailstock): 20"&nbsp;</li><li>Y Axis Travel: 7-5/8"</li><li>X&nbsp;Feed Rate: 0.003" - 0.020"</li><li>Y Feed Rate: 0.001" - 0.006"</li><li>TailStock offset: 19/32"</li><li>Tailstock Barrel Travel: 3"</li><li>Tailstock Taper: MT3</li></ul><p><b>Mill Specifications:&nbsp;</b></p><ul><li>Column Diameter: 3-3/16</li><li>Drawbar Size: 7/16"</li><li>Drill Chuck Size: 5/8"</li><li>Drill Chuck Arbor Size: R8 / JT3</li><li>Head Rotation: 360 deg.</li><li>Quill Diameter: 2-3/4"</li><li>Quill Travel: 4-7/8"</li><li>Spindle Taper: R-8</li><li>Spindle to Table Distance: 4" - 13-3/8"</li><li>Tool size limits: 1"</li><li>X axis Travel: 9.5"</li><li>Y Axis Travel: 7-5/8"</li><li>Head Travel(Z): 4-3/8"</li><li>Feed Rate Y&nbsp;axis:&nbsp;0.001" - 0.006"</li><li>Feed Rate X axis: 0.003" - 0.020"</li><li>Spindle speeds: Variable 0 - 2800 RPM</li><li>Spindle to front of chuck: 4-5/8"&nbsp;</li><li>Spindle Center to lathe spindle Flange: 7-1/4"</li><li>Spindle Center: to support Column: 9.5"</li></ul><p></p>
