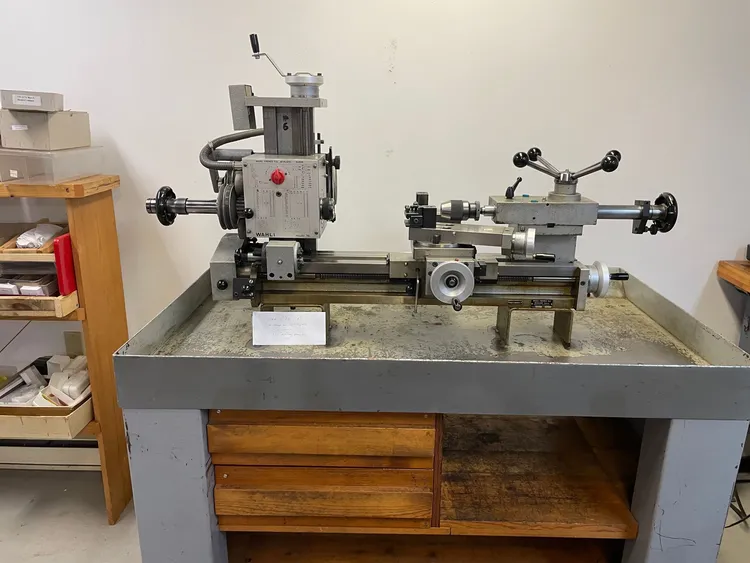

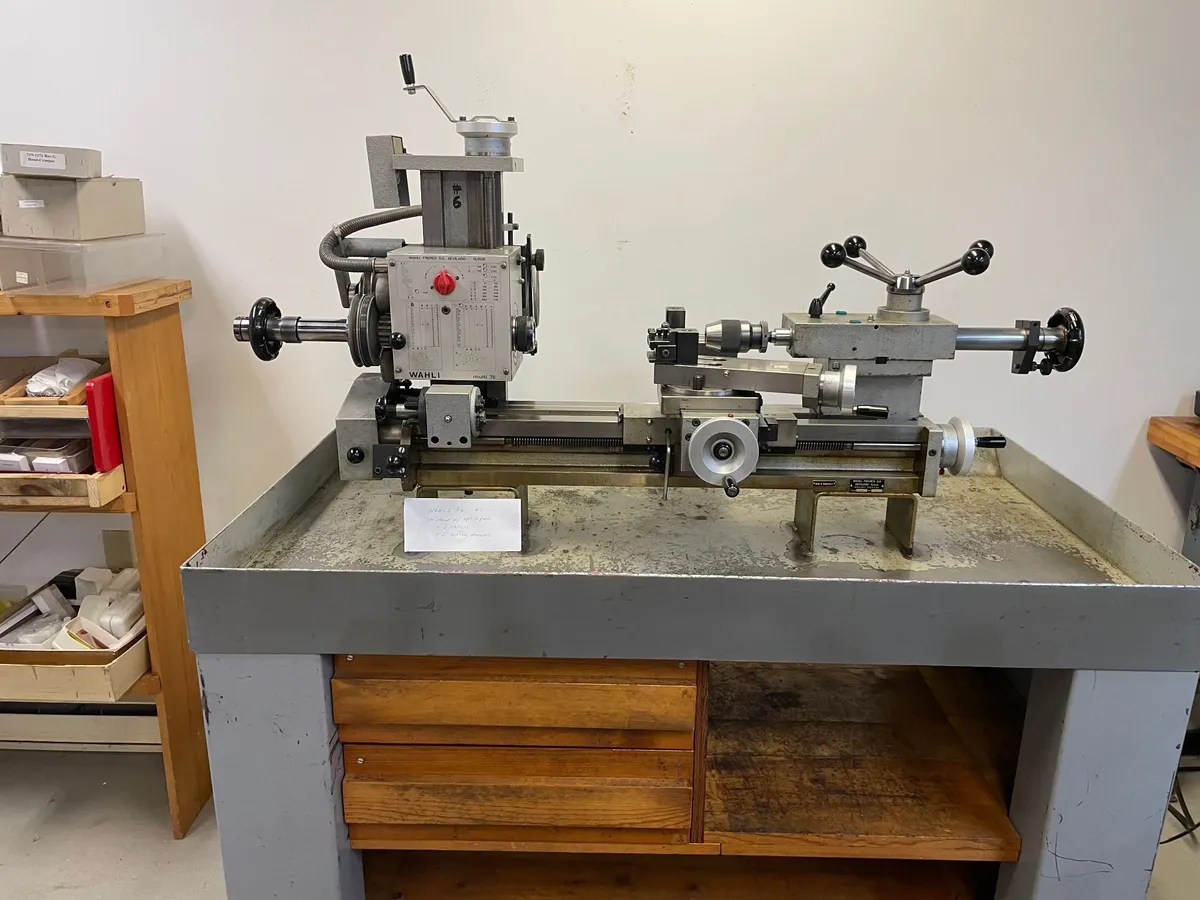

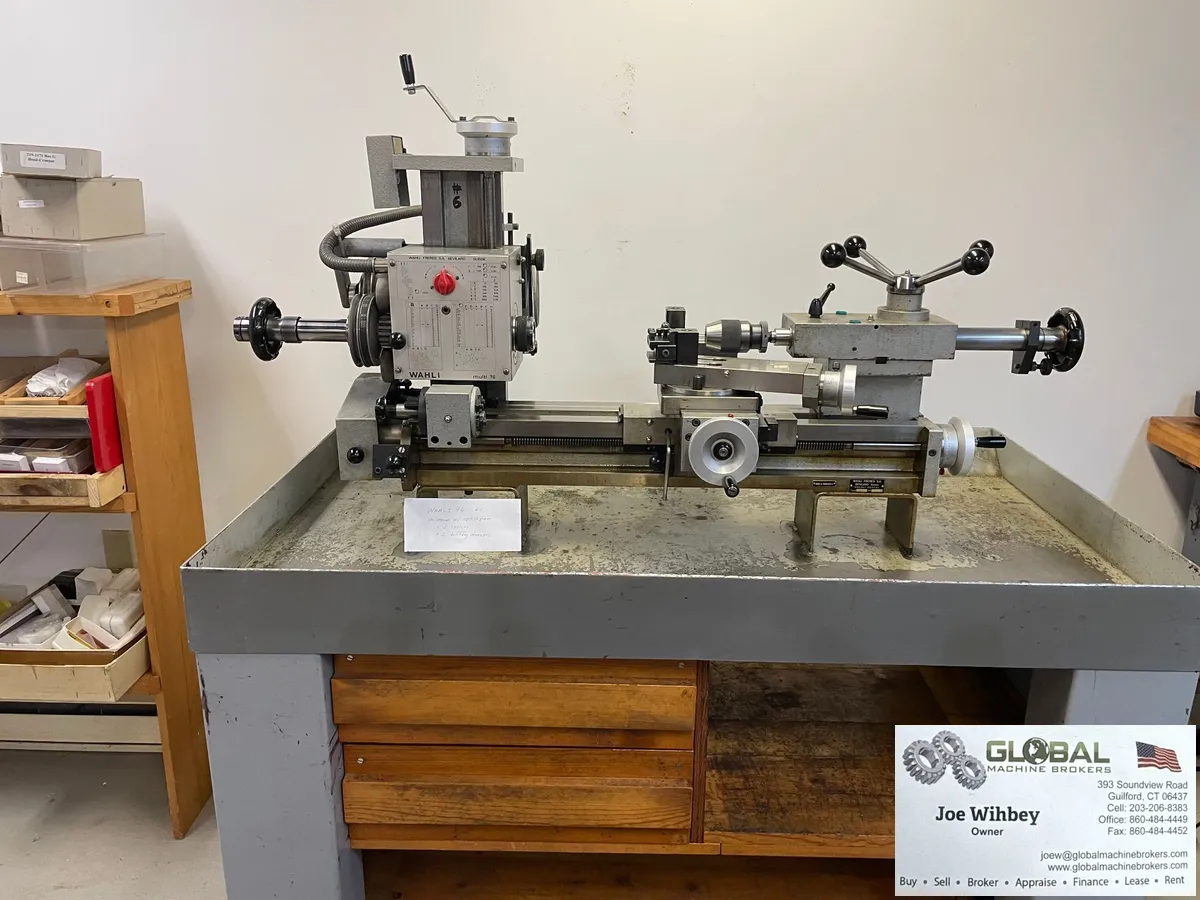

<p>Make: Wahli Freres S.A<br/>Type: 76<br/>Model: Multi 76<br/>Condition: Used, Overall in EXCELLENT SHAPE - Made in Switzerland<br/>Perfect for a prototype shop that is experienced with very small parts.<br/>Serial Numbers: 132 and 98</p>
<p>One lathe will come with all the tooling priced at $13,500<br/>One lathe will come with no tooling priced at $11,500<br/>FOR BOTH LATHES and TOOLING - $25,000</p><br/><br/><p>Tooling And Accessories Included with one lathe (Also see Pictures):<br></p>
<ul><li>Change Gears for Metric & Inch Threading</li><li>110V Motor for Grinding Attachment</li><li>Face Plate for W20 Spindle</li><li>Tool Holders</li><li>Rotating Drill Chuck for Wahli Spingle Horizontal</li><li>W20 Metric Boring Head</li><li>Steady Rest</li><li>Face Place for W20 Spindle\</li><li>Lever Control Cross Slide</li><li>Swivel Base Qty. 2<br></li><li>Tail Stock w/Morse Taper #2<br></li><li>5 inch 3 Jaw Chuck with one set of machinable jaws and on set of outside/inside jaws<br></li><li>4 Jaw Chuck with Key<br></li><li>5 inch 3 Jaw Chuck with inside/outside Jaws with key<br></li><li>Surface Table Qty. 2<br></li><li>W20 Collets<br></li><li>W20 Boring Head<br></li><li>Misc. Spare parts</li></ul><p>Lathe Specifications: <br></p><ul><li>Height of Center: 4.27"</li><li>Distance Between Centers: 13.78"</li><li>Vertical Displacement: 6.30"</li><li>Transversal Displacement of cross slide: 7.09"</li><li>Displacement of counter headstock spindle (on screw): 2.36"</li><li>Insider taper of counter headstock spindle: Morse 2</li><li>Height of spindle over the bench: 2.75" - 9.06"</li><li>Automatic feeds: 0.002 - 0.049"</li><li>Threading from pitch: 0.008" - 0.197"</li><li>2 Speed Motor: .25kw / .4 kw</li><li>Low Spindle Speeds: 75 - 100 - 260 - 340 - 800 - 1060 RPM </li><li>High Spindle Speeds: 150 - 200 -520 - 680 - 1600 - 2120 RPM</li></ul>
