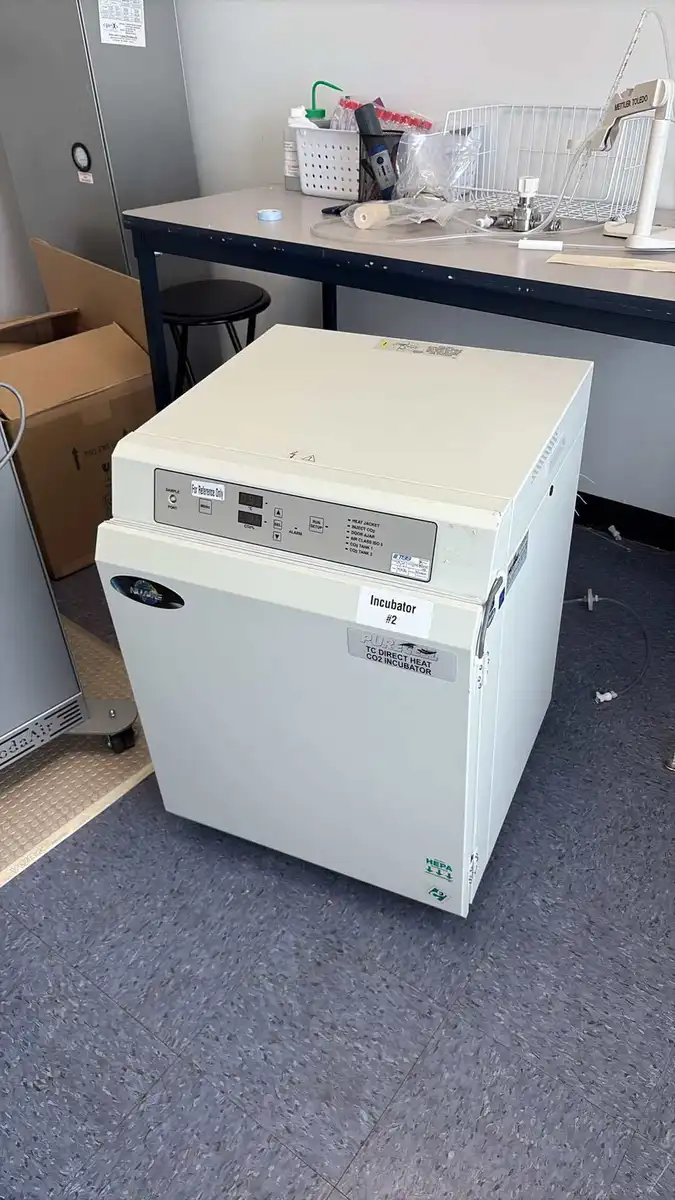

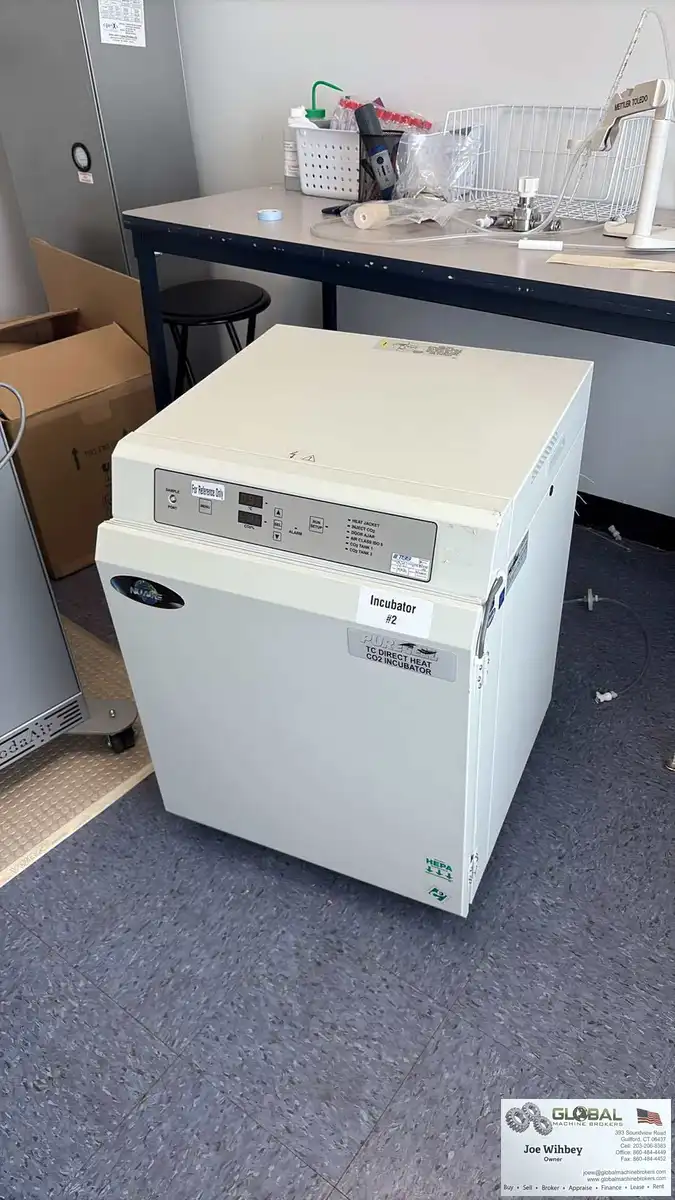

<p>Make: NUAIRE<br/>Model: NU-5100<br/>Series: 2<br/>Serial No: 141861122110<br/>Condition: Used, overall in EXCELLENT SHAPE</p>
<p>CO2 Direct Heat Air Jacketed Incubator</p>
<p>Overall Exterior Dimensions:<br/>-30" Tall<br/>-23" Wide<br/>-23.5" Deep</p>
<p>Inner Chamber: Dimensions:<br/>-22" Tall<br/>-18" Wide<br/>-19" Deep</p>
<p>Water pans Dimensions:<br/>-1" Tall<br/>-17" wide<br/>-12" deep</p>
<p>Shelf Dimensions:<br/>16.25" wide<br/>18" deep</p><br/><br/><p>Features And Specifications: <br></p><ul><!--StartFragment--><li>Foil heating elements on all sides (top, bottom, back, and sides) directly heat the chamber walls.<br>
<br>
</li><li>
High-density insulation (R5.0 rated) fully covers the outer surface of the inner chamber.<br>
<br>
</li><li>
A continuously running fan system circulates air evenly and gently through ducts in the upper plenum and sidewalls.<br>
<br>
</li><li>
A 99.99% efficient HEPA filter continuously cleans the circulating air inside the chamber.</li><!--StartFragment--><li>A microcomputer-based control system ensures precise environmental regulation.<br>
<br>
</li><li>
The system includes ROM (for software), RAM (for temporary data), and EEPROM (for storing control settings even during power loss). Built-in diagnostics help detect component failures.<br>
<br>
</li><li>
A digital microprocessor and thermal conductivity sensor provide stable, low-drift performance, reducing calibration needs.<br>
<br>
</li><li>
Certified by UL and CE, meeting North American and international safety standards (IEC 61010A-1).<br>
<br>
</li><li>
Outer shell: cold-rolled steel with a durable powder-coated finish.<br>
<br>
</li><li>
Inner chamber: 16-gauge polished type 304 stainless steel with seamless construction for easy cleaning.<br>
<br>
</li><li>
All interior stainless steel components (shelves, supports, rails, and air plenum) are removable for cleaning.<br>
<br>
</li><li>
Front door and frame heaters are microprocessor-controlled to minimize condensation and prevent overheating based on room temperature.<br>
<br>
</li><li>
Humidity up to ~85% is maintained using a water pan placed at the bottom of the chamber.<br>
<br>
</li><li>
Programmable settings allow control over system functions, CO₂ sensor calibration, alarms, and lab-specific adaptations.<br>
<br>
</li><li>
Includes 3 stainless steel shelves, 8 ft (2.5 m) power cord, side access port, and heavy-duty leveling legs.<br>
<br>
</li><li>
Units are stackable using the provided rear angle bracket.<br>
<br>
</li><li>
Door hinges are field reversible for flexible installation</li></ul><!--StartFragment--><li><strong>Temperature Control</strong><p>
</p><p><strong>Range:</strong> 5°C above ambient to 55°C
</p><p><strong>Accuracy:</strong> ±0.25°C
</p><p><strong>Uniformity:</strong> ±0.5°C at 37°C
</p><p><strong>Sensitivity:</strong> ±0.125°C
</p><p><strong>Recovery Rate:</strong> 0.15°C per minute
</p><p><strong>Display Resolution:</strong> 0.1°C</p>
<p></p>
<ul>
</ul>
<p><br></p></li>
<li><p></p>
<p><strong>CO₂ Control<br></strong>
</p><p><strong>Range:</strong> 0.1% to 20%</p><p></p></li><li><p></p><p><strong>Accuracy:</strong> ±0.25<strong>%</strong></p><p></p></li><li><p><strong>Uniformity:</strong> ±0.1%
</p><p>
</p><p><strong>Recovery:</strong> Returns to setpoint</p>
<p></p><p>
</p><p><strong>Display Resolution:</strong> 0.1%</p>
<p></p><p>
</p><p><strong>Sensor Type:</strong> Thermal Conductivity</p>
<p></p><p>
</p><p><strong>Control Logic:</strong> Fixed algorithm/manual</p>
<p></p>
</li><p></p>
<p></p><li><p></p>
<p><strong>Heating System</strong></p>
<p>
</p><p><strong>Door & Perimeter Heater Control:</strong> Proportional, adjustable from 0–100%</p>
<p></p><p>
</p><p><strong>Temperature Sensor:</strong> Precision integrated circuit</p>
<p></p><ul>
</ul>
<p></p></li><p></p>
<p></p><li><p></p>
<p><strong>Additional Features</strong></p>
<p>
</p><p><strong>Environmental Adaptability</strong></p>
<p></p><p>
</p><p><strong>Remote Alarm Connection:</strong> RJ-11 jack on rear panel</p><p></p><ul>
</ul>
<p></p></li><!--EndFragment--><p></p>
