Make: Clausing
Model: #2286
Serial No: 506475
Condition: Used Overall in Great Shape. Can be Ran Upon Request
Comes with Transformer
Foot pedal operated

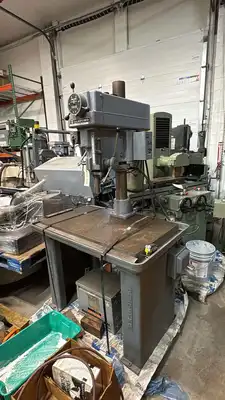

See Pictures
Specifications: <ul><li>Swing Of Drill: 20"</li><li>Spindle Center to Column: 10"</li><li>Table Size: 24" x 40"</li><li>Spindle Nose to Table: 33"</li><li>Spindle Travel: 6.5"</li><li>Spindle Taper: #3mt</li><li>Spindle Speeds: 150-2000 RPM Variable</li><li>Quill Stroke: 6-1/2"</li></ul>
<p>Motor: </p>
<ul><li>220v </li><li>1.5/.75 HP </li><li>3 Phase</li></ul>
<p>Transformer: </p>
<ul><li>3 KVA </li><li>3 Phase</li><li>Primary Voltage: 230 Delta</li><li>Secondary Voltage: 460Y</li></ul>
Swing
20"
508 mm
Power
1.5 hp
1.1 kW
RPM
2,000 RPM
2,000 RPM
