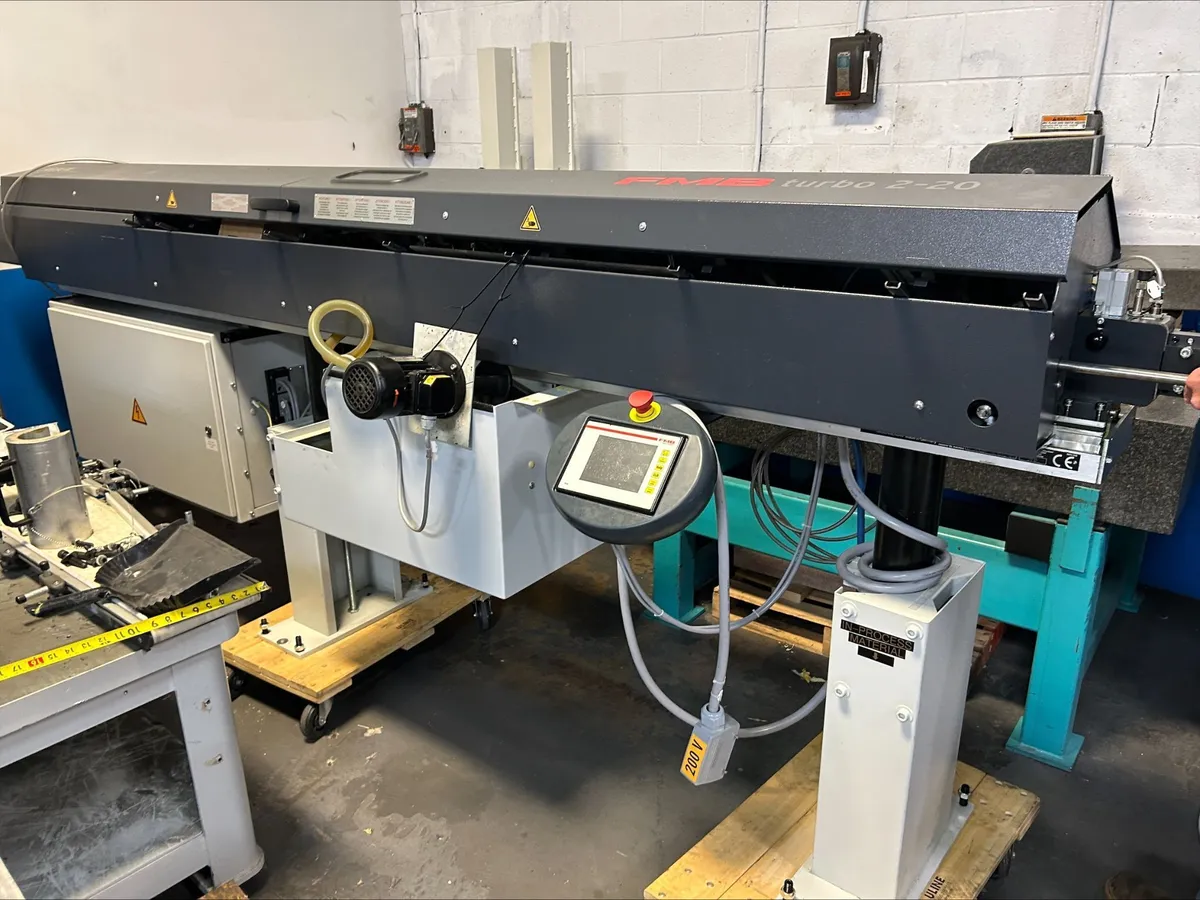

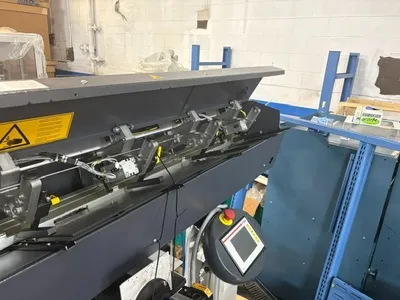

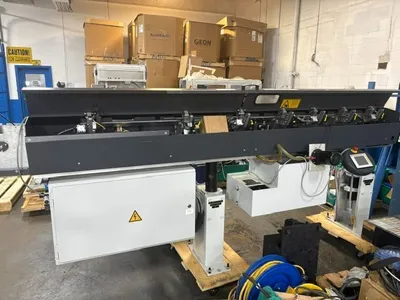

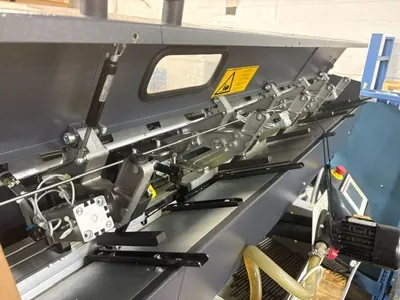

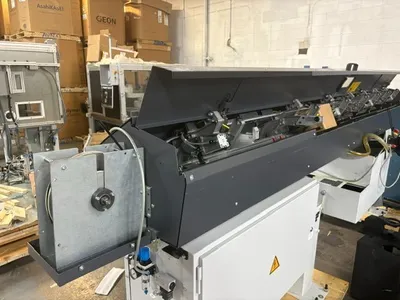

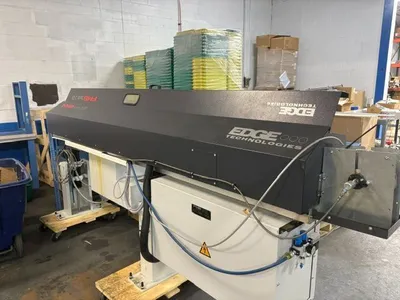

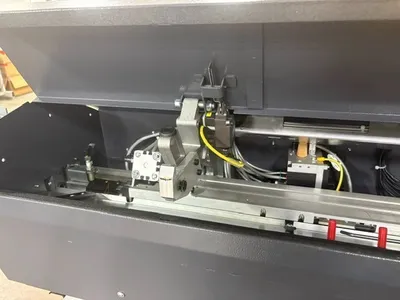

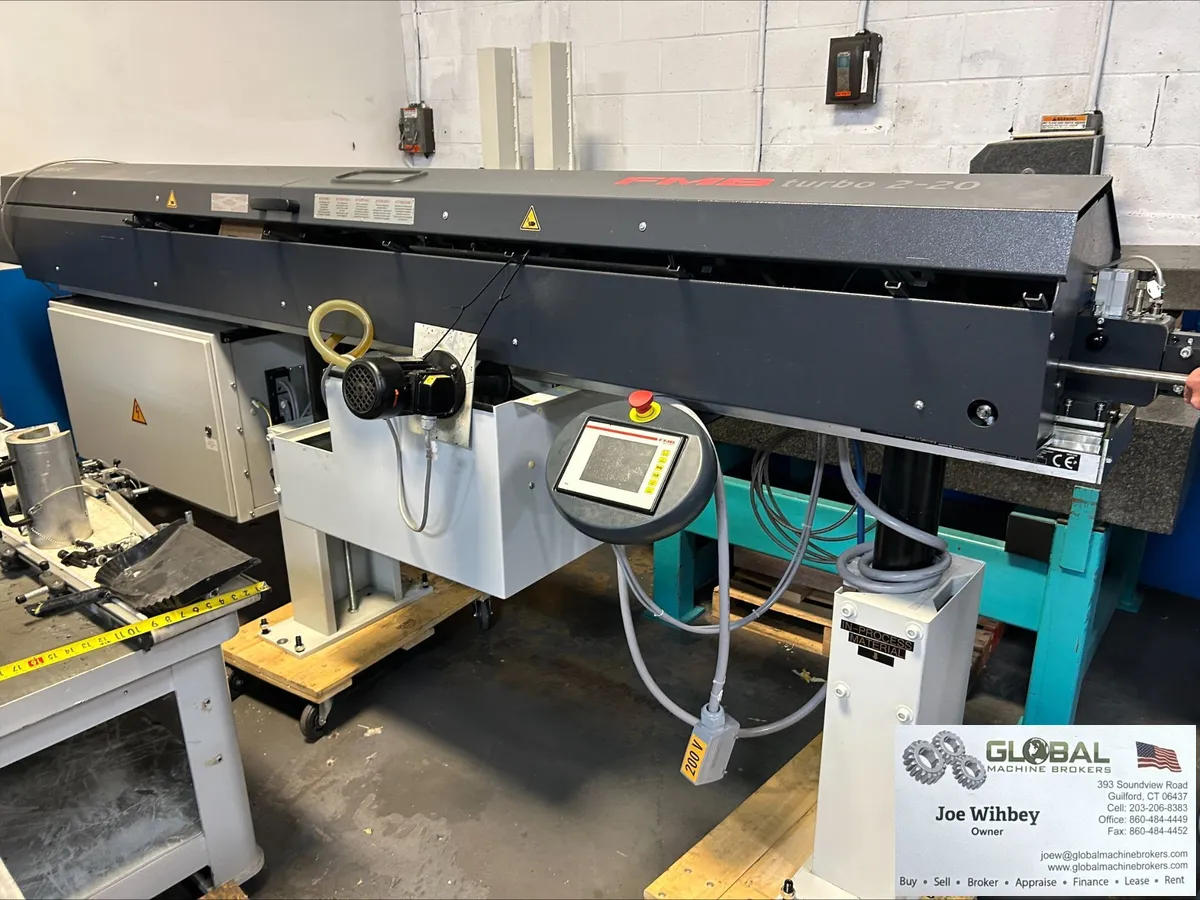

<p>Make: FMB Edge Technologies<br/>Model: 2-20<br/>Machine No: 18-301261 R:1572765<br/>Year New: 2018<br/>Condition: Used, Overall in Great Shape, Works.<br/>Bar Feeder was purchased new for $22k by seller. They put it on a machine in an R&D project and ran it for about 100 hours and removed it from the machine. Bar feeder is in like new condition.</p>
<p>This looks like a 12' bar feeder but it has the guts of a 6' feeder inside only. It will only feed 6' bars. Make an offer. It's brand new.</p>
<p>Automatic Magazine Style Servo Bar Feeder For CNC Lathes<br/>Designed to automatically feed round, square or hexagonal bars into CNC lathes.</p>
<p>Equipped with a Swiss type headstock synchronization device, peck drilling and threading on small diameter bars is simple and done with high-tolerances.</p><br/><br/><p><b>Features: <br></b></p>
<!--StartFragment-->
<ul>
<li>Bar diameter capacity: 2 mm to 20 mm (.078” to .787”) </li>
<li>Automatic loading magazine — 7 linear inches of rack capacity</li>
<li>Double pusher, space saving design </li>
<li>Quick-change polyurethane guide channel system – noise & vibration dampening</li>
<li>Hydrodynamic support via high volume oil flow into channels</li>
<li>Omron motion control — dependable and user friendly, allows easy bar feeder parameter changes</li>
<li>Bearing block steady rest. Super rigid design is mounted to
base of the machine to provide maximum support of bar stock and pusher</li>
<li>Separate floor mounted electric cabinet isolates electronics from vibration</li>
</ul>
<ul>
<li>(1) Guide channel set to be chosen by customer. Several
sizes to choose from, each handling a specific stock range. See chart on
next page. (spindle liner required if channel set is not lathe’s max
capacity)
</li>
<li>(1) Universal telescoping front nose and (1) nose I.D. liner specific to pusher</li>
<li>(1) O.D. bar stock collet (to be chosen by customer, specific collet needed for each stock diameter)</li>
<li>Swiss headstock synchronization device</li>
<li>Automatic remnant retraction, self centering gripper</li>
<li>Custom lathe cable and interface plugs</li>
<li>Polyurethane bushing blocks (2 pieces)</li>
</ul>
<!--EndFragment-->
<p><b>Specifications: </b>
</p><p><strong>Bar diameter capacity (no bar preparation):</strong> 2 mm to 20 mm (.078” to .787”)</p>
<p></p>
<ul></ul><ul>
<li><strong>Bar diameter capacity (with bar preparation):</strong> 2 mm to 23 mm (.078” to .905”)
</li>
<li><strong>Maximum bar length:</strong> 3800 mm (12 feet 5 inches)
</li>
<li><strong>Minimum bar length:</strong> 1000 mm (39.400”)
</li>
<li><strong>Maximum remnant length:</strong> 420 mm (16.540”)
</li>
<li><strong>Magazine rack capacity:</strong> 7”
</li>
<li><strong>Bar loading cycle time:</strong> 30 seconds for 12 foot bar
</li>
<li><strong>Material straightness specification:</strong> .007” TIR/foot of material (V blocks, 3 points equidistant)
</li>
<li><strong>Feed force (pusher torque):</strong> max 300 N, adjustable
</li>
<li><strong>Forward feed rate:</strong> 710 inches/minute max, adjustable
</li>
<li><strong>Return feed rate:</strong> 1420 inches/minute max, adjustable
</li>
<li><strong>Power consumption:</strong> 1.5 kW – (2 kVA)
</li>
<li><strong>Operating voltage:</strong> 230V/60Hz 3-phase
</li>
<li><strong>Control voltage:</strong> 24V DC
</li>
<li><strong>Oil capacity:</strong> 50 liters (13.2 gallons)
</li>
<li><strong>Oil viscosity:</strong> ISO 100 cST
</li>
<li><strong>Compressed air supply:</strong> 6 bar (90 psi)
</li>
<li><strong>Compressed air consumption:</strong> approx. 3 liters per loading cycle
</li>
<li><strong>Machine weight (without oil):</strong> 1,650 lbs
</li>
</ul>
