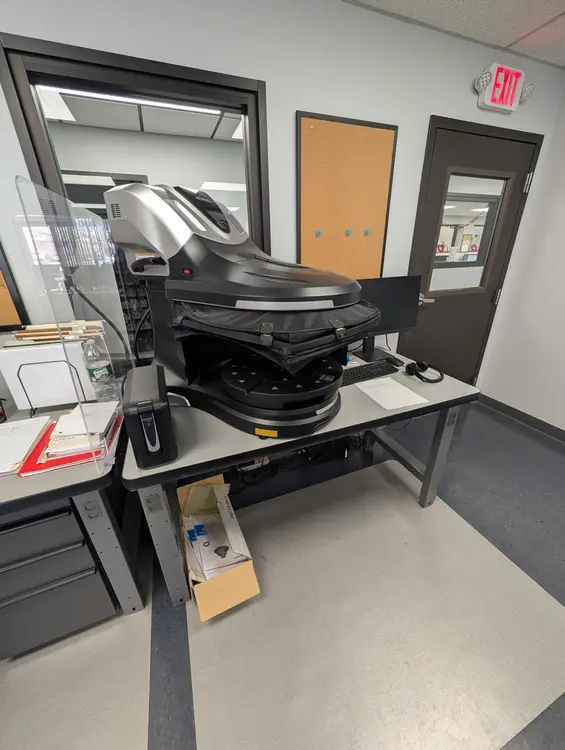

Keyence VL-350 3D Scanner System CMM Stage

<p><span style="font-size: 20px;">Specifications: <br></span></p> <!--StartFragment--><!--EndFragment--><!--StartFragment--> <!--EndFragment--> <!--StartFragment--> <h3><strong>Optical Transmitter System:</strong></h3> <ul><li><strong>High-brightness dual projector module</strong> for projecting measurement light.</li></ul> <h3><strong>Optical Receiver System:</strong></h3> <ul><li><strong>Low/high magnification offset dual optical module</strong> with wide dynamic range.</li></ul> <h3><strong>Light Sources:</strong></h3> <ul><li><strong>Measurement light source:</strong> Blue LED.</li><li><strong>Color texture light source:</strong> LEDs in 3 colors (Red, Green, Blue).</li></ul> <h3><strong>Captured Data Format:</strong></h3> <ul><li><strong>Full-color textured 3D mesh data.</strong></li></ul> <h3><strong>Measurement Performance:</strong></h3> <ul><li><strong>Repeatability (σ):</strong> 2 μm.</li><li><strong>Measurement accuracy:</strong> ±10 μm.</li><li><strong>Measurement resolution:</strong> 9 million points.</li></ul> <h3><strong>Measurement Modes:</strong></h3> <ul><li><strong>Low Magnification:</strong><ul><li>High speed, Normal, Fine (wide field).</li></ul></li><li><strong>High Magnification:</strong><ul><li>Normal, Fine (High resolution).</li></ul></li></ul> <h3><strong>Measurement Range:</strong></h3> <ul><li><strong>Low Magnification:</strong><ul><li>Ø300 × H200 mm (Wide field) → Ø11.81" × H7.87".</li></ul></li><li><strong>High Magnification:</strong><ul><li>Ø70 × H50 mm (High resolution) → Ø2.76" × H1.97".</li></ul></li></ul> <h3><strong>Extended Measurement:</strong></h3> <ul><li><strong>Automatic rotation combined measurements.</strong></li><li><strong>Automatic XY combined measurements.</strong></li></ul> <h3><strong>Automatic XY Combined Measurement Range:</strong></h3> <ul><li><strong>Low Magnification (2 × 2 composition):</strong> Ø500 × H200 mm → Ø19.69" × H7.87".</li><li><strong>Low Magnification (3 × 1 composition):</strong> W580 × D300 × H200 mm → W22.83" × D11.81" × H7.87".</li><li><strong>High Magnification (2 × 2 composition):</strong> Ø110 × H50 mm → Ø4.33" × H1.97".</li><li><strong>High Magnification (3 × 1 composition):</strong> W150 × D70 × H50 mm → W5.91" × D2.76" × H1.97".</li></ul> <h3><strong>Stage:</strong></h3> <ul><li><strong>Stage configuration:</strong> Motorized XYθ stage mechanism.</li><li><strong>Stage top panel size:</strong> Ø500 mm → Ø19.69".</li><li><strong>Stage rotation:</strong> 360° (infinite rotation).</li><li><strong>Stage movement range:</strong> Ø200 mm → Ø7.87".</li><li><strong>Tilt mechanism:</strong> Up to 45°.</li><li><strong>Load capacity:</strong> 50 kg → 110.23 lb.</li></ul> <h3><strong>Control PC:</strong></h3> <ul><li><strong>Dedicated PC specified by KEYENCE.</strong></li></ul> <h3><strong>Power Supply:</strong></h3> <ul><li><strong>Power voltage:</strong> 100 to 240 VAC ±10%, 50/60 Hz.</li><li><strong>Power consumption:</strong><ul><li>Controller/Measurement unit: 320 VA.</li><li>Stage: 80 VA.</li></ul></li></ul> <h3><strong>Environmental Resistance:</strong></h3> <ul><li><strong>Ambient temperature range:</strong> +15 to +30°C → 59.0 to 86.0°F.</li><li><strong>Ambient humidity range:</strong> 20 to 80% RH (no condensation).</li></ul> <h3><strong>Weight:</strong></h3> <ul><li><strong>Controller:</strong> 3.7 kg → 8.16 lb.</li><li><strong>Stage:</strong> 26 kg → 57.32 lb.</li><li><strong>Light-blocking cover:</strong> 5.5 kg → 12.13 lb.</li><li><strong>Measurement unit:</strong> 19.6 kg → 43.21 lb.</li></ul> <!--EndFragment--> <ul></ul> <p></p> <p>Included in Sale: </p> <ul><li>VL-700 Controller&nbsp;</li><li>VL-770 Measurement Unit&nbsp;</li><li>VL-A3E</li><li>VL Support Package </li><li>VL-750</li><li>VL-C35</li><li>972363</li><li>972358L</li><li>VL-B1</li><li>VL-H3G</li><li>OP-88145</li></ul>
