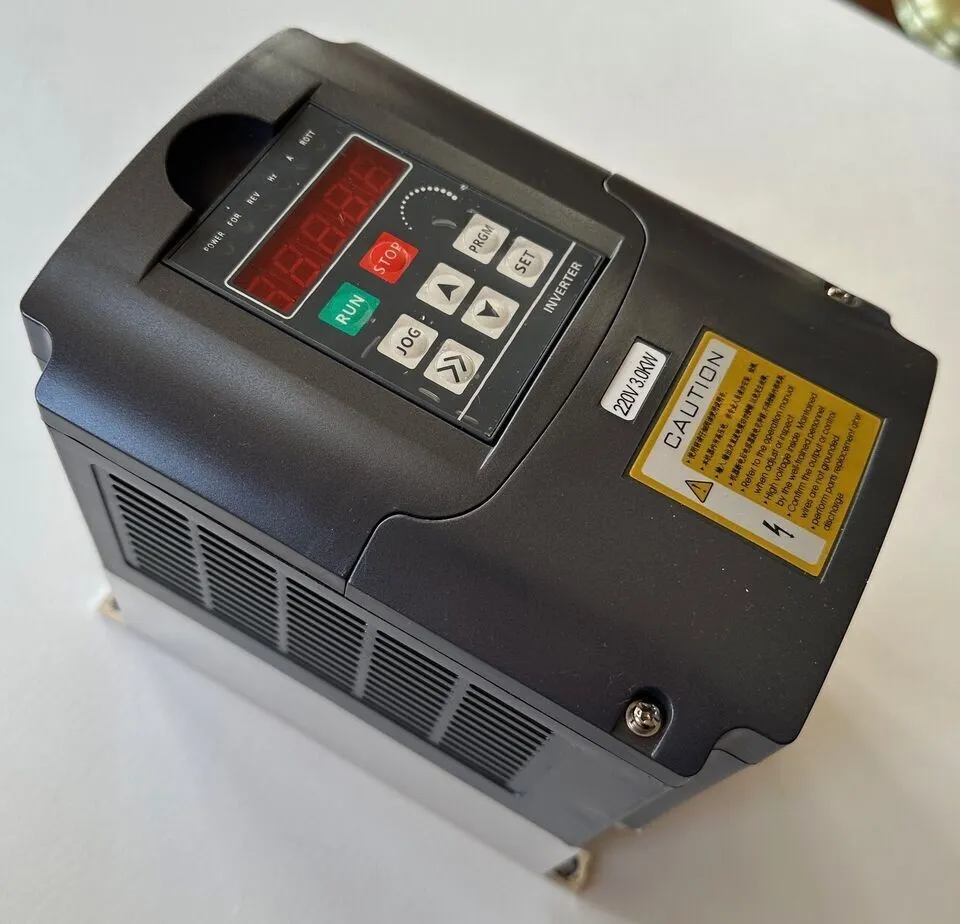

Huanyang HY03D023B VFD Inverter - 220v 3.0Kw 13A Single to 3phase

Description

Make: Huanyang
Model: HY03D023B
Condition: used Overall in great Shape, Like new

AC drive frequency converter spindle inverter

Variable Frequency
220V
3.0kw

Input Voltage: 220V, Single Phase or Three Phase
Input Frequency: 47-63Hz
Output Voltage: 220V, Three Phase
Output Frequency: 0-50Hz / 0-400Hz

Main Control Function:
Control Mode: V/F, Torque control
Overload Capacity: 60s with 150% of rated current, 10s with 180% of rated current
Speed Adjusting Range: 1:100 (SVC)
Carrier Frequency: 1kHz – 15.0kHz
Frequency Reference Source: Keypad, analog input, HDI, serial communication, multi-stage speed, simple PLC, and PID setting

I/O Features:
Programmable Digital Input: 7 terminals supporting ON-OFF inputs, 1 terminal for high-speed pulse input (PNP, NPN)
Programmable Analog Input: AI1 (-10V-10V), AI2 (0-10V or 0-20mA)
Programmable Open Collector Output: 1 output terminal (open collector or high-speed pulse)
Relay Output: 1 output terminal
Analog Output: 2 output terminals, selectable output range of 0/4-20mA or 0-10V
