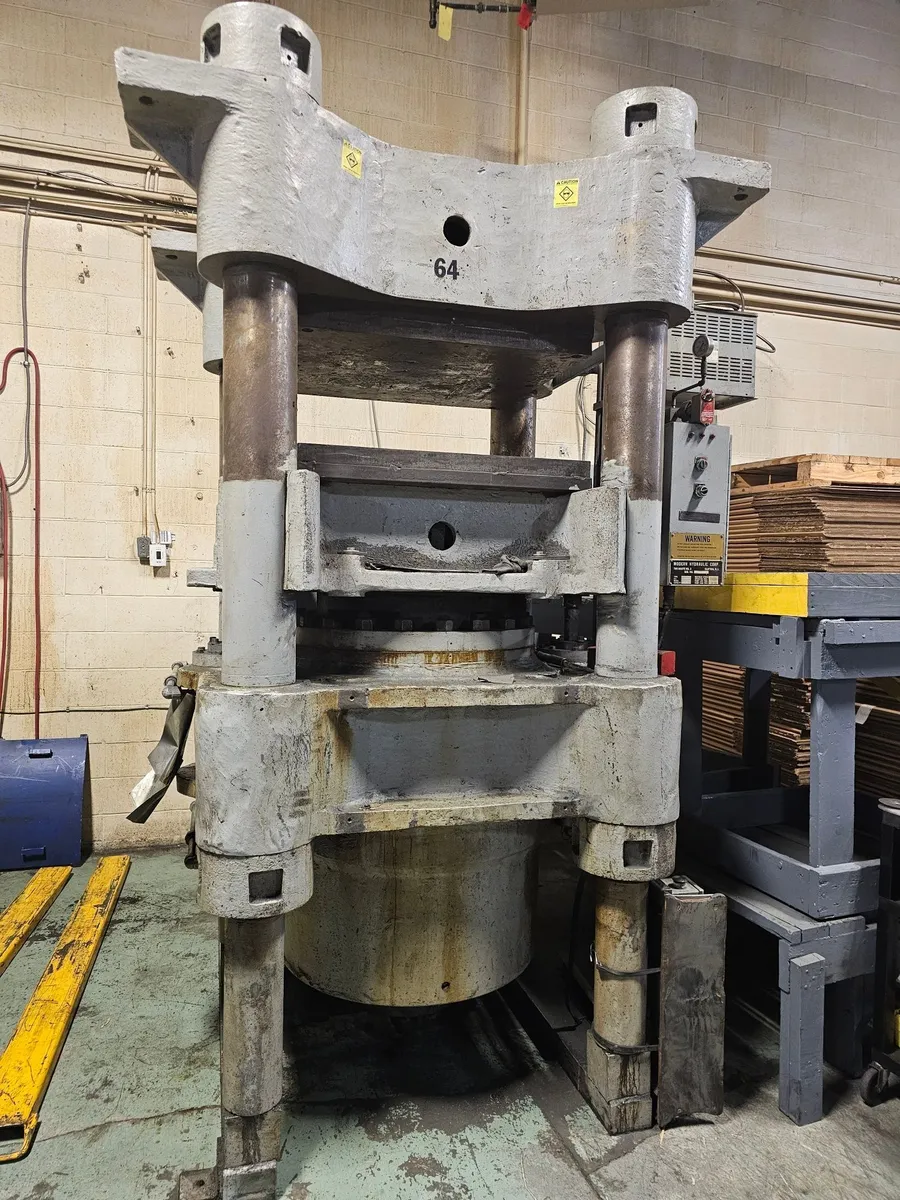

Modern Hydraulics 0419 - 600Ton Hydraulic Up Acting Press 36x40 Platens

Description

Make: Modern Hydraulic Corp
Model: 0419
Serial: 2312
Condition: used, Overall in Good Shape. Is under power and working.
Leaks few drips here and three - nothing big. As you may know all hydraulic systems leak. Unless brand new.

Spacing between tie bars: 33" side to side and 30" front to back
Type: Up Acting
O.H. : 16"
Capacity: 600 Ton
Maximum Stroke: 12"
Operating Pressure: 2700 PSI
Pump Low - High Pressure: 0-6 GPM
HP: 7.5
230/460v - 3ph
Strokes per minute would be between 8-10 strokes per Minute
-36x40 Platens

-4 tiebolts. 7 inches diameter 9 ft long; 4x1200………………….. 4800 pounds

-Crown. 36 inches x 40 inches x 15 inches………………………… 6125 pounds

-Base. 36 inches x 40 inches x 15 inches………………………….. 6125 pounds

-Platen/die 36 inches x 40 inches x 12 inches……………………. 4900 pounds

-Ram and housing 24 inch diameter 24 inches tall………….…. 3078 pounds

-Tank and frame…………………………………………………………… 2500 pounds (?)

Total……….. 27,528 pounds
Thr press measures 112" overall height, the width is about 70", length is about 90". It is estimated to be 25,000-30,000 pounds.
