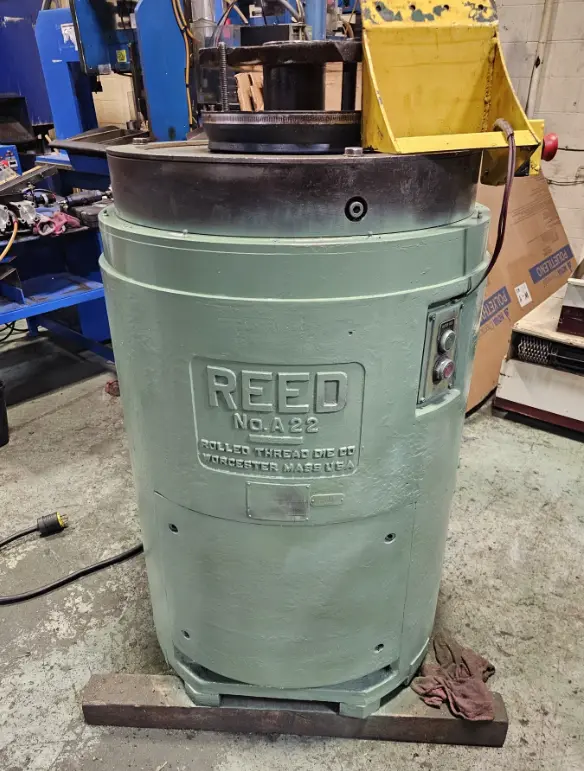

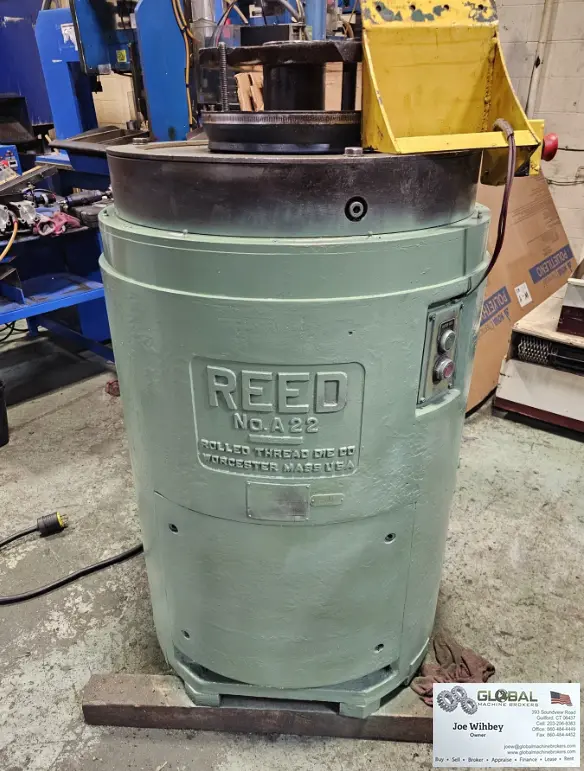

REED Model A22 Vertical Cylindrical Die Thread Roller w/ Tooling

Description

Make: Reed
Model: A22
Condition: Used, Overall In Great Shape

Comes with 3 or 4 Sets of Dies

Vertical Cylindrical Die Thread Roller

Specifications From Web:
-Thread Diameter Infeed: 1/4" x 3-3/4"
-Thread Diameter Thru Feed: 1/4" - 1"
-Thread Length Infeed: Up To 2-3/8"
-Thread Length Thru Feed: up to 11"
-Spindle Diameter: Up to 1-9/16"
-Max. Die Diameter: 4"
-Max. Die Width: 2 -3/8"
-Die Speeds: 110-720 RPM
-Cam Speeds: 6-26 PPM
-Maximum Automated: 100 PPM
-Main Drive Motor: 10 HP
-Radial Die Load, Max.: 15 Ton
-Loading Height: 42"
-Floor Space: 46"W x 36"L
