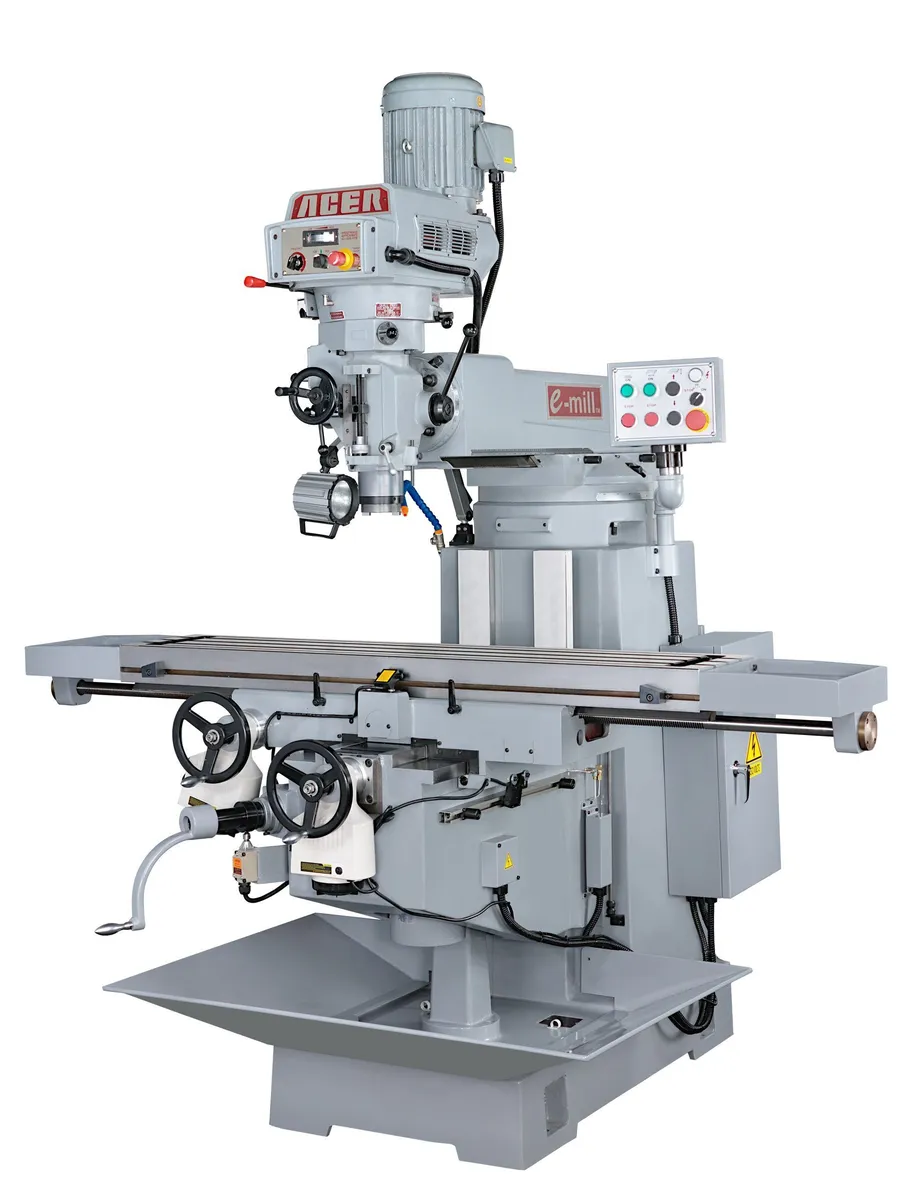

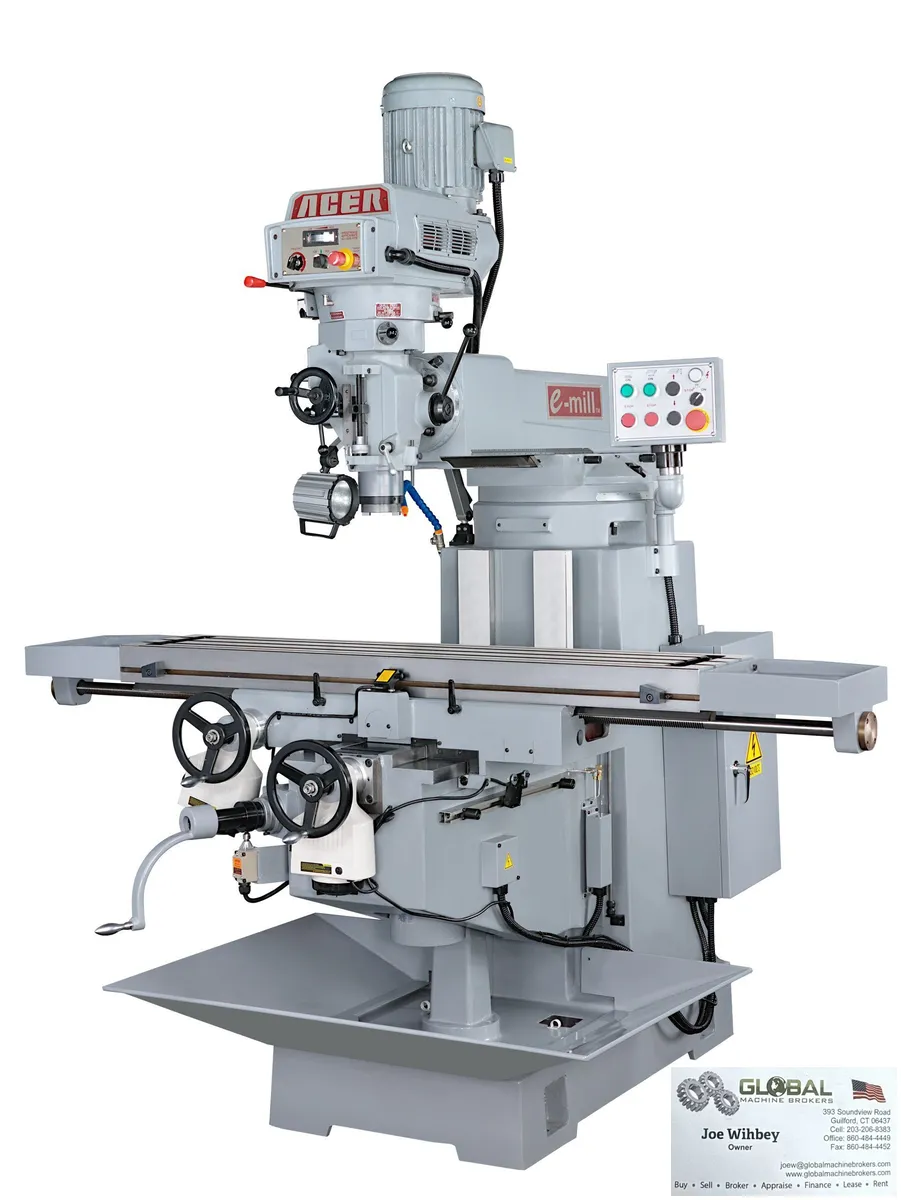

Precision Vertical Milling Machine with Standard Accessories
See Photos For Specifications
<!--StartFragment-->
<p>FEATURES:</p>
<ul><li>5 HP Spindle Inverter Motor & Frequency Inverter Drive</li><li>0 ~ 4,500 RPM Infinite Spindle Speed</li><li>Large Digital Spindle RPM Display</li><li>Spindle is designed to stay inactive after power is restored from power failure</li><li>Precision Ground Head Housing & Rigid Meehanite GA-50 Casting</li><li>Precision N.S.T. 40 Spindle and ABEC-7 Bearings</li><li>Power Feeds on X & Y Axes & Elevating Motor on the Knee</li><li>Precision X, Y Axes & Knee by Hardened & Ground Square Ways to HRC 52°</li><li>2-Step Electric Brake</li><li>One Shot Lube Pump & Chip Pan</li></ul><!--StartFragment-->
<p><br></p><p>OPTIONAL ACCESSORIES (Please Call or Email To Add):</p>
<p>1. “NEWALL” 2-Axis DRO (15” x 47-1/4” Travel, 0.0002” Res. Scale)…… $ P.O.R.</p>
<p>2. Installation Fee on 2-Axis DRO…………………………………… Net $ 350.00</p>
<p>3. 12” Rotary Table (Vertical & Horizontal)…………………………………. $ 935.00</p>
<p>4. Clamping Kits - 52 pieces………………………………………………….. $ 175.00</p>
<p>5. 6” Angle Lock Milling Vise……………………………………………….. $ 550.00</p>
<p>6. Horizontal Milling Attachment……………………………………………..$ 1,520.00</p>
<p>7. “MAXI-TORQUE” RITE Power Drawbar & Safety Ring………………....$ 935.00</p>
<p>8. Installation Fee on Power Drawbar & Safety Ring……………....... Net $ 100.00</p>
<p>9. Upgrade Frequency Inverter 440V / 3-PH………...………………. Net $ 480.00</p>
<p>10. Upgrade to UL Conformity Electric Cabinet (special order)……… Net $ 800.00</p>
<p>11. Installation Fee on UL Conformity Electric Cabinet……………… Net $ 200.00</p><p></p><p>Note: The Manufacture Reserves the right to modify the design, specification, mechanisms, etc.. to improve the performance of the machine without prior notice. All Specifications Shown are for reference only.</p>
<!--EndFragment-->
<!--EndFragment-->
Table-W
11"
279.4 mm
Table-L
59"
1,498.6 mm
Travel-Long
47.25"
1,200.1 mm
Travel-Cross
15"
381 mm
Power
5 hp
3.7 kW
RPM
3,750 RPM
3,750 RPM
Taper
NT #40
NT #40
