FOSHAN HUIBAISHENG HCS 12-720-300 Continuous Gas Shielded Sintering Furnace

Description

Make: FOSHAN HUIBAISHENG
Model: HCS 12-720-300
Condition: NEW! Never Used! Was bought but wasn't needed by owner. Has been stored indoors since bought.
Complete Set up ready to go.
MSRP: $70,245
We Have Complete quotation PDF From Original purchase with all the information that is needed.

Machine is located in Maastricht, Netherlands and will fit into 1 - 40ft container closed container.

-Purpose: Designed for sintering steel, copper, and brass powders; prevents oxidation and ensures bright surfaces.

-Design: Modern, efficient, and energy-saving with high heat efficiency and environmentally friendly operation.

-Temperature Control: Advanced system with intelligent thermostat, silicon controlled rectifier, and electrical switches; precise temperature control within ±1℃.

-Feeding Mechanism: Continuous feeding ensures uniform heating and proper dwell time for each piece on the mesh belt.

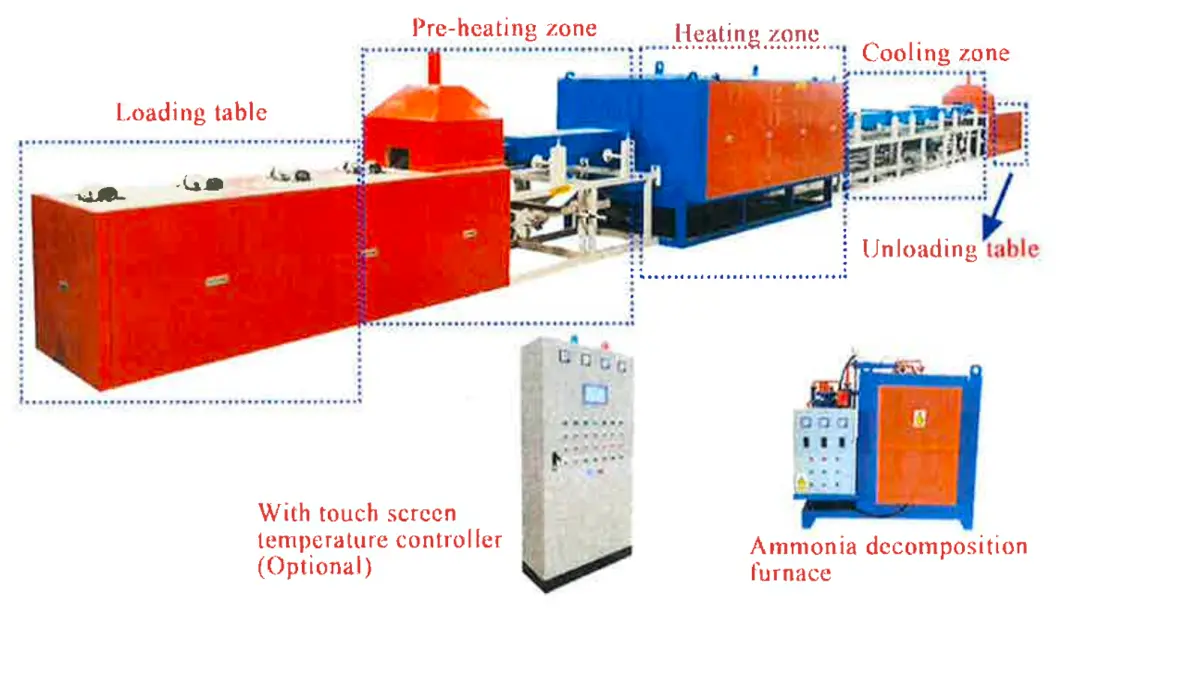

-Structure: Comprises feeding zone, two preheating zones, two heating zones, water cooling zone, and discharging zone for gradual and segmented heating.

-Materials: Key sections made from stainless steel for corrosion and high-temperature resistance.

-Heating Elements: Removable and replaceable electric heating elements without affecting production.

-Conveyor Belt: Mesh belt enhances service life compared to sheet steel belts.

-Control System: HMI touch screen for real-time monitoring and control

Total heating Power: 140 KW/hour 380v 3 phase, 50Hz (Power Adjustable )
Power in production: 50-120 KW/hour adjustable
Rated Working Temperature: 700℃
Heating Method: Electric Resistance Heating
Mesh Belt Width: 670mm (314 high temperature resistant stainless steel)
Mesh Belt Convey Speed: 80-500mm ( Continuous Adjustable)
Muffle Section View: （W）720mm×（H）300mm

Furnace Size:
Loading table length: 1100mm
Preheating zone①: 300×720×300 (L x W x H)mm
200℃ heating zone: 600×720×300（L×W×H）mm
Preheating zone②：2300×720×300 (L x W x H)mm
500℃ heating zone : 5000×720×300 (L x W x H)mm
Cooling zone：1500×720×300 (L x W x H)mm
Discharging length: 1000mm
Overall Size: ~11800×2250×2600 (L x W x H)MM

Protective Gas: Nitrogen Gas
