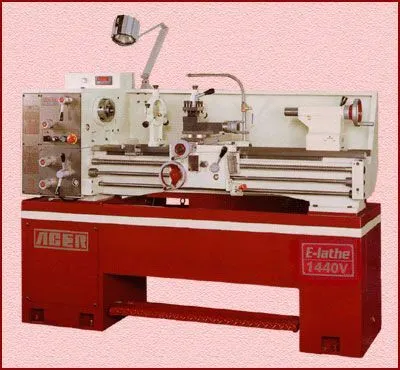

ACER E-Lathe 1440V High Speed Inverter Drive Engine Lathe

Description

HEADSTOCK: All gears are made with chromium molydenum steel and are hardened & ground to its accuracy. A forced lubrication system lubricates all running gears and bearings within the headstock.

GEAR BOX: Unique two lever universal gear box offers a wide range of cutting capacity. All ranges can be reached by moving two levers and two dials.

SPINDLE: 1-1/2″ bored spindle is made from medium carbon steel and is induction hardened & ground to its final accuracy. It also has a two-point support with both bearings being taper roller.

APRON: Automatic feeding and threading in apron are fully interlocked to prevent simultaneous engagement of both functions.

TAILSTOCK: Keyed 1-7/16″ diametered quill is hardened to Rockwell C 55° & ground to its inspection accuracy.

-Infinite variable speeds.
-Oil level indicator.
-24 volts safety control circuit with Allen Bradley switches.
-Weigh in at 1,580 lbs.
-Safety overload device.
-Standard foot brake.
-Forward/stop/reverse lever.
-Half-nut engagement handle.
-9″ wide bed way with FC-30 casting iron.
-Hexagonal bed web.
-Oil lubricated leadscrew.
-Two-tone automotive paint.

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
