Microcentric MBS/L 150 Air Operated Diaphragm 6 Jaw Chucks SEE PICS & DESC.

Description

Make: Microcenter
Model: MBS/L 150
Condition: Used, Overall in great Shape Was used in a clean Professional Machine Shop
Came off a Mori Seiki VL 200 CNC Lathe
SOLD AS LOT LIST PRICE IS FOR ALL

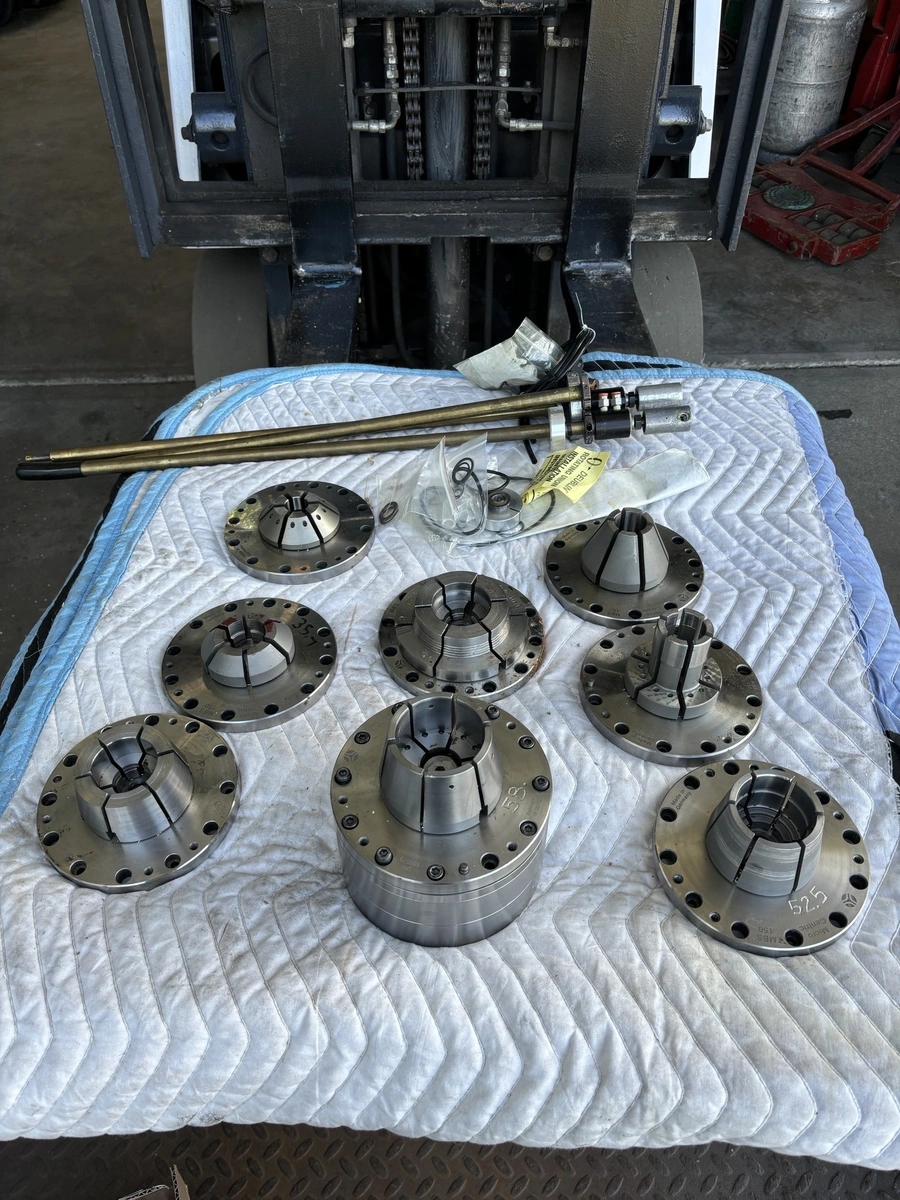

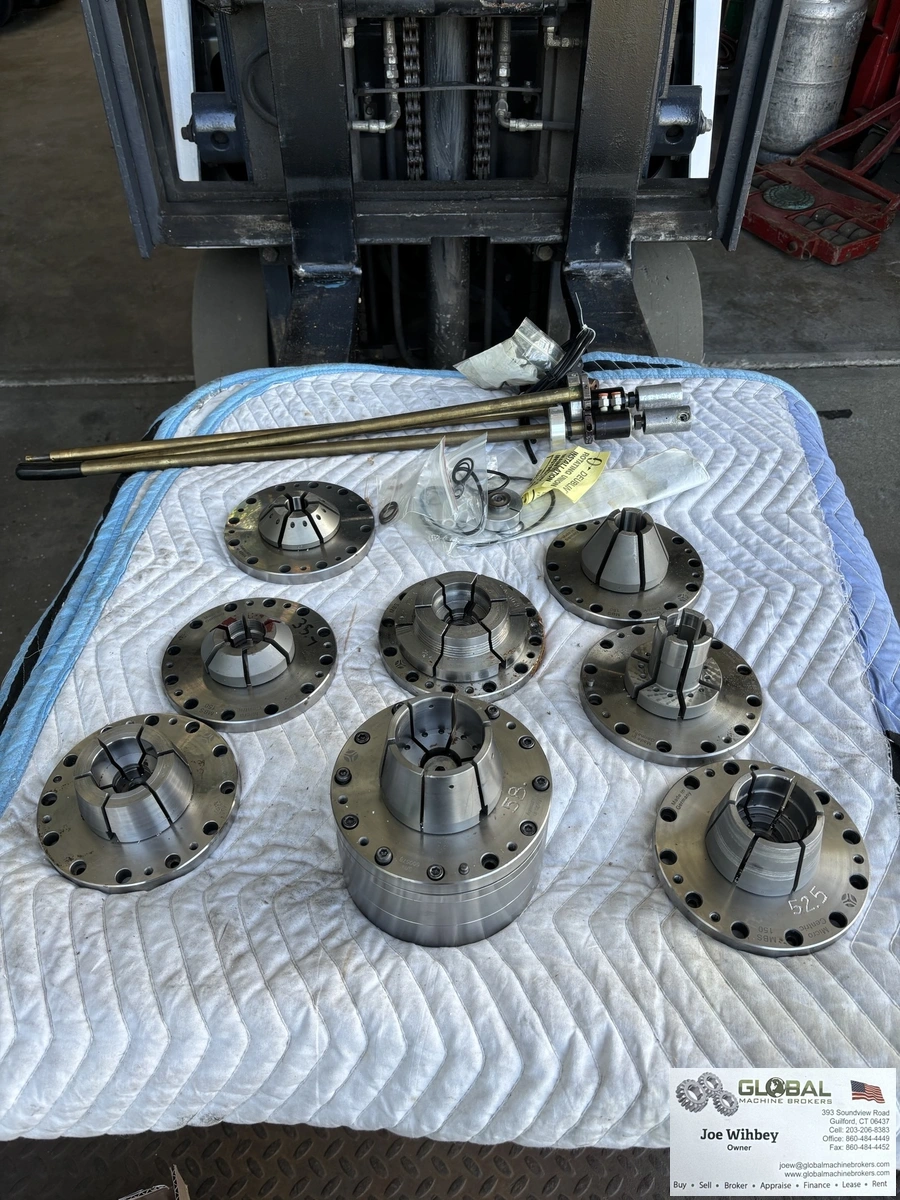

Air operated Diaphragm Chuck Complete Set Up See Pictures for best Information

Included in Sale:
1 Chuck diaphragm
8 face plates (Collets) Interchangeable
3 Air Tubes (620mm Model 50) With Hardware
Multiple O-Rings For Assembly
Some paperwork For Reference

Self-contained design with built-in air cylinder. Air is supplied to the
chuck by a multi passage air tube assembly with a rotary coupling.
Coolant through the spindle capability

OD and ID chucking for cylindrical grinding, turning, and hard turning.
Ideal for workpieces requiring high concentricity, and/or close round-
ness. Ideal for fragile parts which are easily distorted, and applications
requiring high spindle speeds

Chuck Size: 5.98 (152mm)
Number Of Chuck: 6
Jaw Stroke: .060" (1.5mm)
Max Jaw Force: 6,090 lbf
Max Air Pressure: 100 PSI
Max RPM: 6000

(Jaw stroke on diameter with 1.50" high top jaws)
(Max. rpm is influenced by air pressure applied and weight of top jaws)
