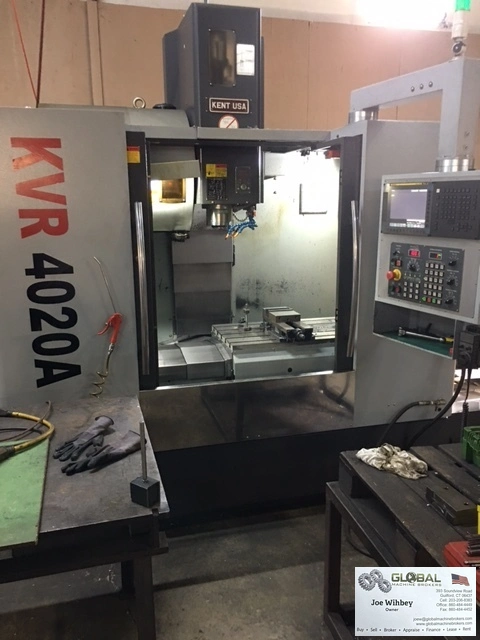

KENT KVR-4020A Vertical Machining Center 7764 Hours w/ Tooling

Description

Make: KENT
Model: KVR-4020A
Power On Hours: 7764 (not all Run Time)
Year New: 2021 (Seller Bought New For 78k!)
Condition: Used, Overall In Excellent Shape, Runs Great and is Under Power. Come Check It Out!
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
OUTSTANDING FEATURES:
• Large working capacity with 39.4” x 19.7” x 20.5” travels and 43” x 20” table

• Powerful 15HP servo spindle motor – 10,000 rpm with spindle chiller system

• Heavy duty “Roller” type Linear guide ways outperform ball-type linear ways

• 4th Axis Ready pre-wired with cables and connectors for servo and air

• Coolant wash-down and Air hose connections up front for operator convenience

• High flow, high capacity coolant system with built-in chip flush and chip auger conveyor

• Automatic coolant tank oil skimmer with adjustable timer

• Through spindle coolant ready-prep, with 1000 psi capable union and hoses

• Certified Meehanite® FC-25 grade machine casting for superior dampening and stability

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

STANDARD EQUIPMENT:
• Fanuc 0i-MF CNC control with 10.4” color LCD

• 10,000 rpm spindle with powerful 15 hp servo spindle motor

• Chilled spindle jacket housing and chilled spindle motor mount with refrigeration system

• Fanuc Tool Length Measurement, Background Editing Function

• Fanuc Custom Macro B (user definable), High Speed Skip Function

• Fanuc AICC-II (200 BLA) High-Speed Contour Control Machining

• Fanuc USB, PCMCIA (CF-card), Ethernet, and RS-232 ports

• Fanuc Manual Guide-i (Computer Assisted “Conversational” Programming)

• Fanuc 400 Registered Part Program Numbers and 1280m Part Program Memory

• Fanuc Data Server with 2 GB Expanded Memory card and Fast Ethernet Interface

• Fanuc Instant Power Failure Detection System, Self-Diagnostic Functions

• 400 Tool Offsets, 48 Work Coordinate Offsets, Tool Path Graphics

• Rigid Tapping, Spindle Orientation (M19)

• Helical Interpolation, Coordinate Rotation and Scaling

• Individual selector knobs for Spindle, Rapid and Feed overrides on operator console

• Program and Data Protection Key Switch

• Automatic Power Off (M30), 8 Spare M-codes

• Programmable work piece Air Blast (M21)

• Full enclosure splash guard with safety lockable front door, removable sliding side doors

• Portable MPG jog hand wheel with convenient magnetic back-mount

• High flow high capacity flood coolant system with large roll-out coolant tank

• Through spindle ready-prep with 1000 psi union and high pressure hoses

• Coolant tank oil skimmer with adjustable timer

• Chip flush system and auger-type chip conveyor

• Dual heat exchanger cooling for electrical cabinet

• Durable metal telescopic sliding way covers on X/Y/Z axis

• C-3 grade high precision double pre-tensioned ball screws

• Certified Meehanite® FC-25 grade casting base, saddle and column
