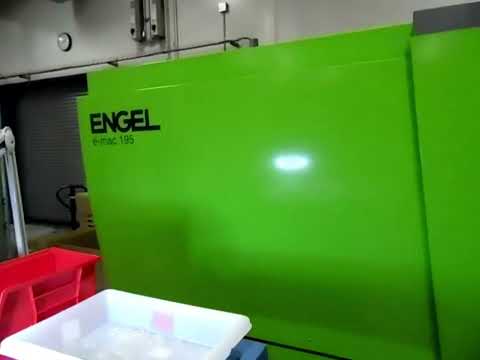

Engel E-MAC 195 Horizontal Injection Molding Machine 5.93Oz/35mm Shot
Have one to sell?
$64,900.00 USD
ConditionUsed
1 available
Make: Engel
Model: E-MAC 195
New 2014
Condition: Used, Overall In EXCELLENT Shape!
Hours: 7,004
Don't Sleep On this Deal! These Machines are 200k+ brand new. This Machine has low hours and has a lot more left Ready to Go!!
Was Maintained and taken care since new.
Equipped with:
CC200 Control Package with 15" TFT Screen
English / Spanish
Increased injection speed/hi Executio
Card Access System
EcoGraph
Minicam
Program Virt Mold
Ejector Back Confirmation
Single Pneumatic Core Pull (Moving Platen)
Single Pneumatic Core Pull (Stationary Platen)
Air Blow
(1) Pneumatic Valve Gate Control
Swiveling Injection Unit
Auto Shutdown / Purging Program
Auto Protect - Injection Monitoring
Advanced Materila Package
M3 Barrel
S8 Screw
Corrosion Resistant Barrel Head
Water Manifold
Auto Grease Lubrication System
Robot Interface
Interface for Freely Programmable Dry Contacts
Machine is Located in Canaan CT 06031
Drive:
Horizontal
Injection Unit:
465
Screw Diameter:
40mm
Maximum injection Capacity:
220 cm³
Clamping Force:
195 Tons / 1800 kN
Shot Size:
5.93 Oz/35 mm
Platen Size:
29.92" x 29.92"
Tie Bar Spacing:
20.47" x 20.47"
Min/Max Mold Height:
9.84" - 23.62"
Clamp Stroke:
18.11"
Ejector Stroke:
5.12""
Voltage:
460v
