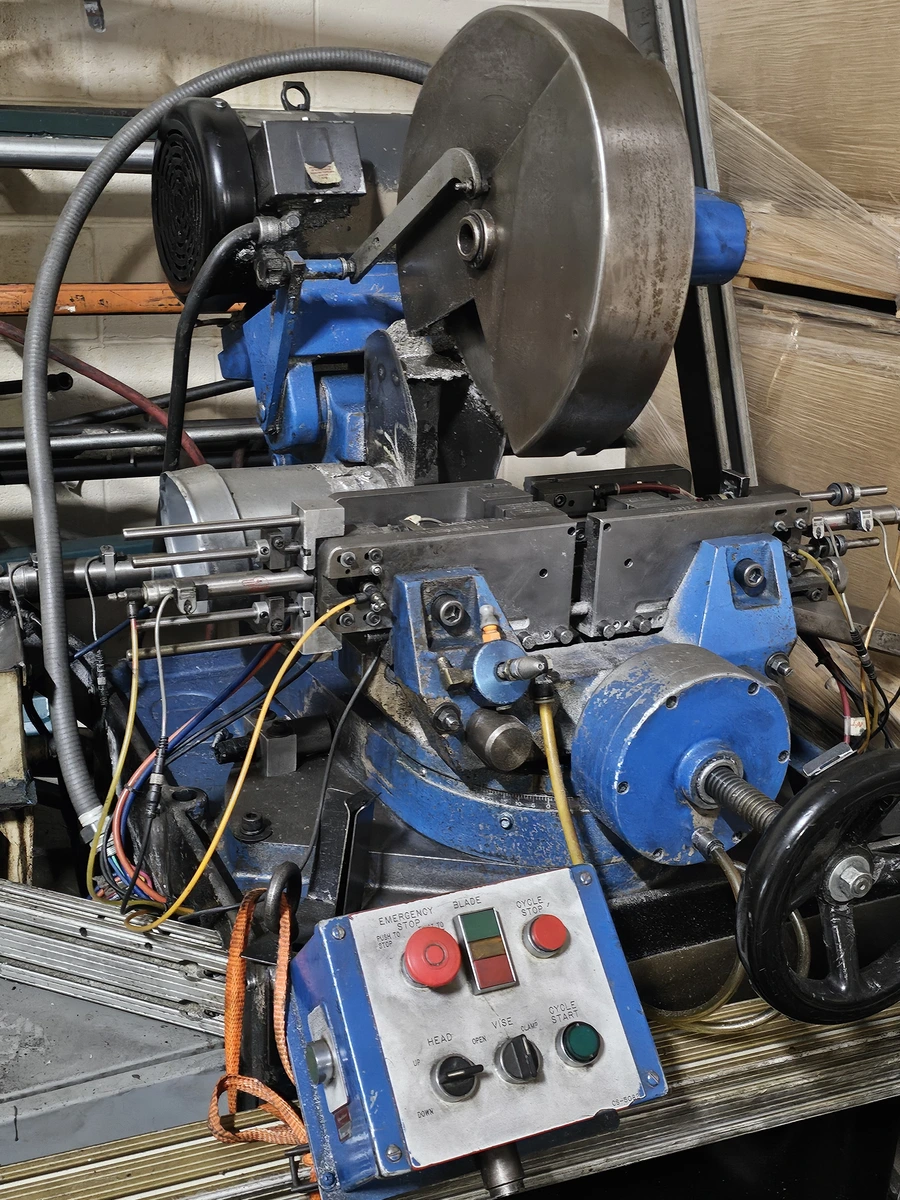

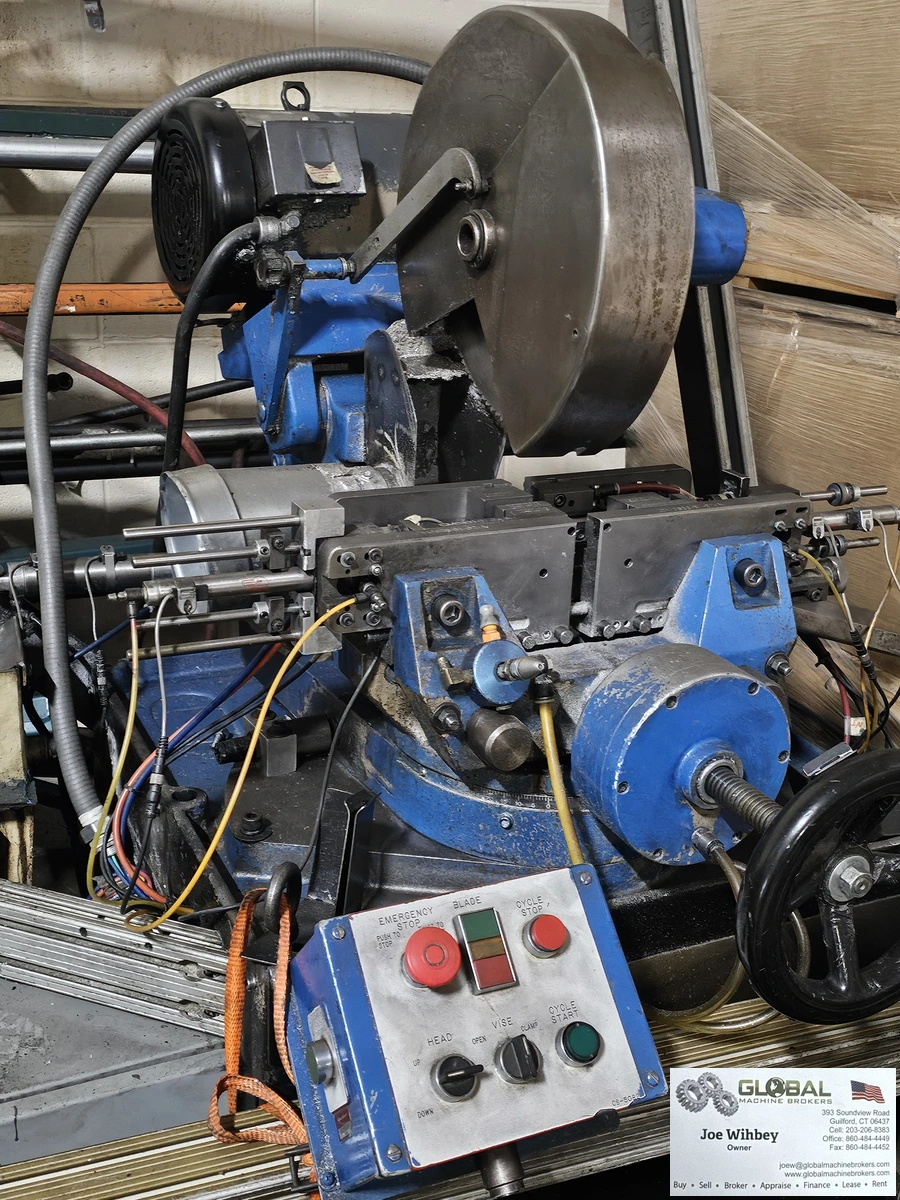

Kalamazoo FA350SA Electric control Metal Mitor Saw 5hp 14" Max Blade

Description

Make: Kalamazoo
Model: FA350SA
Serial No: Q1073
Condition: Used, Overall In Great Shape, Has been used for cutting metal

Circular Cold Saw or Mitor saw with auto clamping vise Controls and Auto Cutting Controls
Safe and easy to use minimal manual control
Air Powered with optional adjustable clamping pressure.
Automatic operation during the cutting cycle. Self centering with replaceable wear plates.
Spray mist Coolant with 1 Gallon reservoir, adjustable air and coolant flow
Cast Iron Construction

(350mm blade) Cutting Capacities for 90 deg angle:
Round Tubing: 5"
Round Solids: 5"
Rectangular Tubing: 4.5" x 6"
Rectangular Solids: 4.5" x 6"
Square Solids: 4.5"

(350mm Blade) Cutting Capacities For 45 deg angle:
Round Tubing: 4.5"
Round Solids: 4.5"
Rectangular Tubing: 4" x 4.5"
Rectangular Solids: 4" x 4.5"
Square Solids: 4"

Motor: 5hp - 1740RPM - 208/230/460 Volt - 3 phase - 60hz
Spindle Speeds: 3480 RPM standard, 1740 Optional

Blade Arbor: 32mm (1.2598" Diameter)
Spindle Flange Diameter: 73mm (2.874")
Maximum Blade diameter: 350mm (13.77")

Maximum Vise opening: 6-1/4"
Air Requirements: 50-100psi
