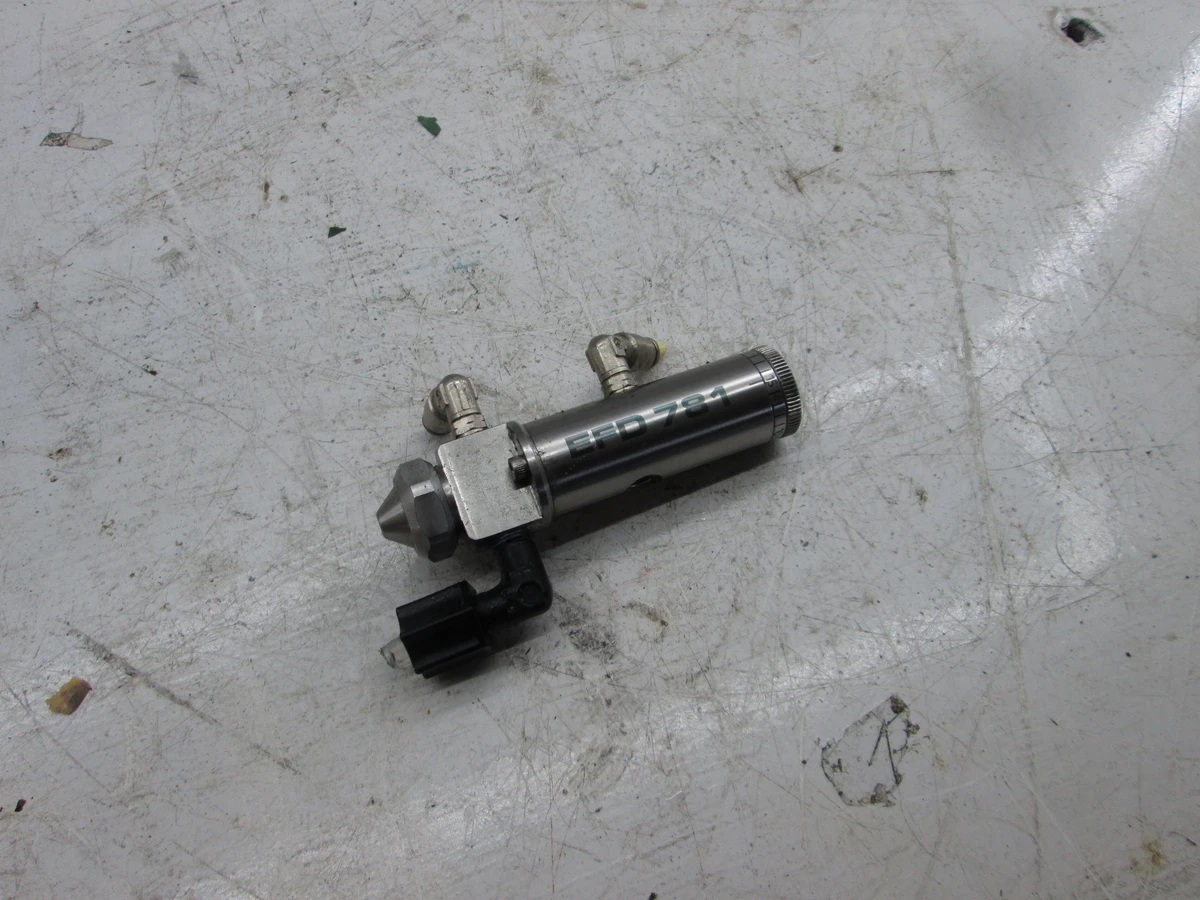

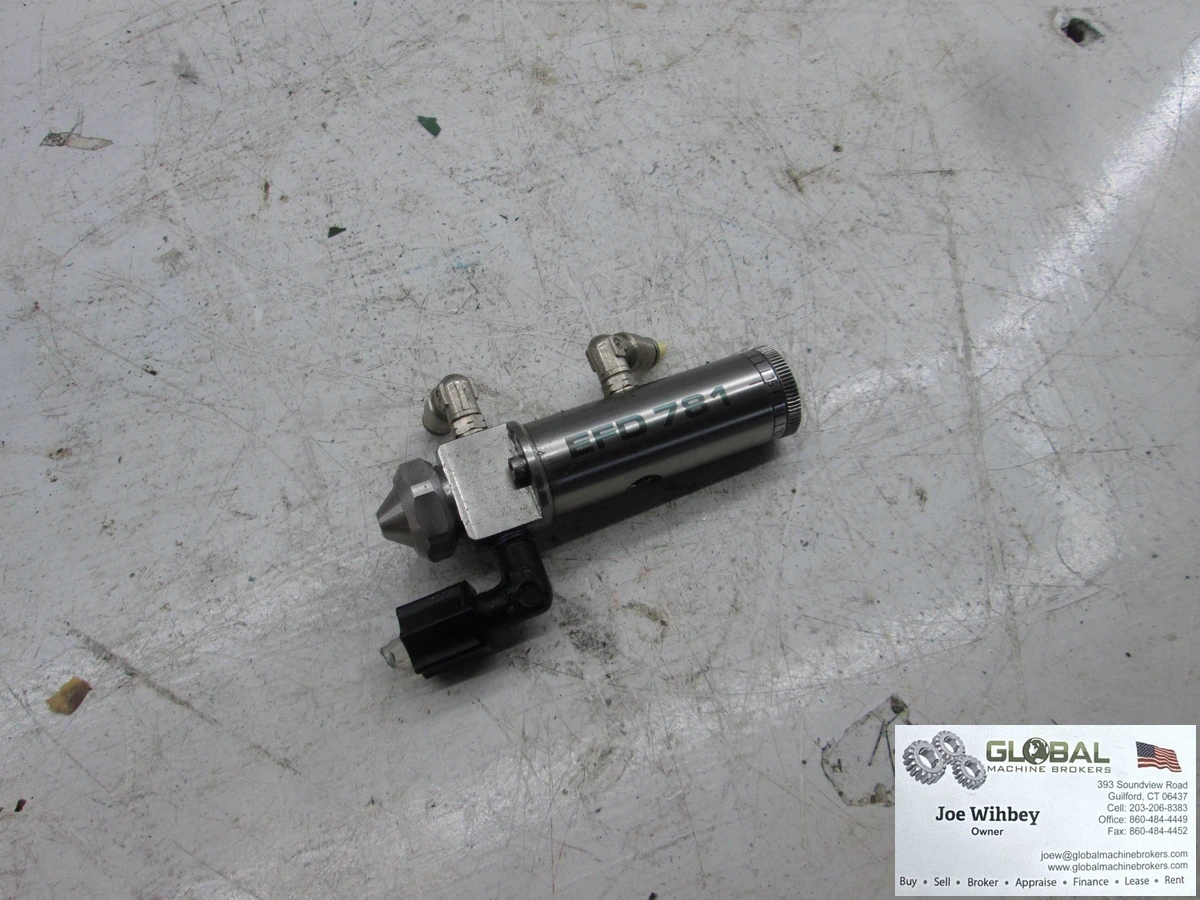

Size: 104.6L x 26.9DIA mm (4.12L x 1.06DIA")
Weight: 781S: 235.3 g (8.2 oz)
Actuating air pressure required: 4.8–6.2 bar (70–90 psi)
Maximum fluid pressure: 20.7 bar (300 psi)
Fluid inlet: 1/8 NPT female
Mounting: (1) 1/4-28 UNF tapped hole
Cycle rate: Exceeds 400 per minute
Air cylinder body: 781S: 303 stainless steel
Fluid body 781S: Hard-coated anodized aluminum
Air cap: 303 stainless steel
Piston 303: stainless steel
Needle and nozzle: 303 stainless steel
Maximum operating temperature: 102º C (215º F)
