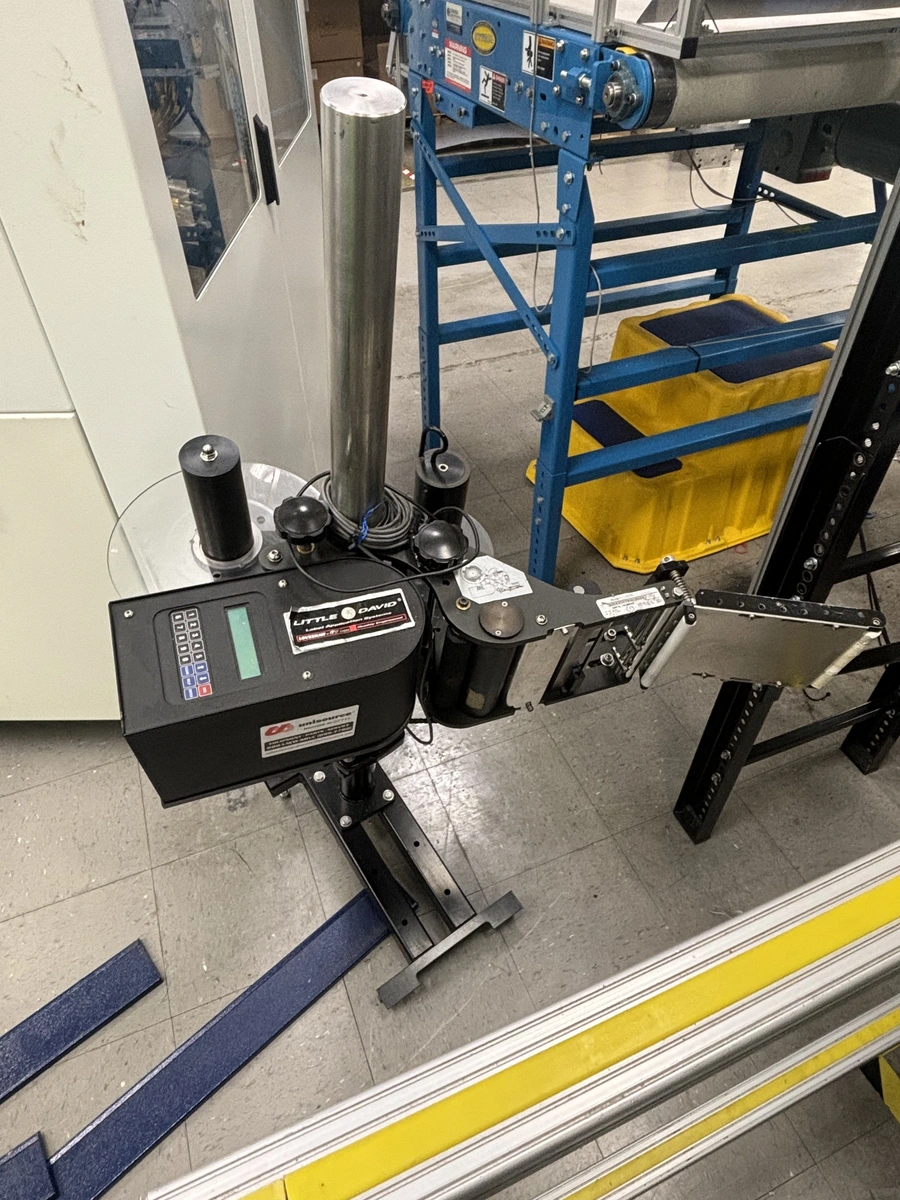

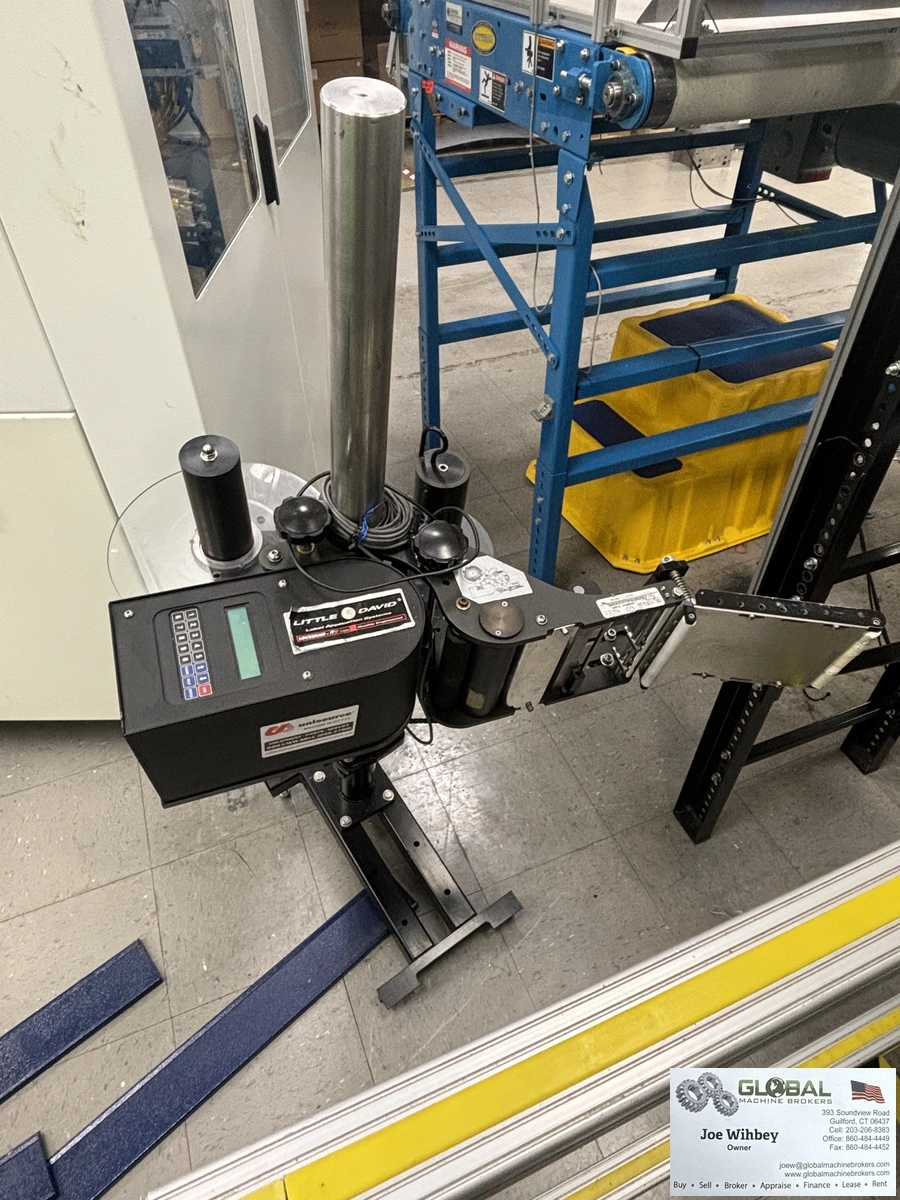

Loveshaw Little David LS500 Carton Label Application Machine

Description

Make: Loveshaw
Series: Little David
Model: LS500
Serial No: 5RPSL10UN080
Condition: Used, Overall In Great Shape Ready For Work
Carton Label Application Machine

-Label Requirement: 1/4" - 5-3/8" Wide, 3/4" - 6" Long. (12" outside diameter / 3" core diameter)
-Power Requirements: 115v 50/60 Cycle / 5 amp
-Label Speed: 1200" / Minute

Microprocessor controller integrated with a user-friendly keypad and LCD display for convenient adjustment of label application parameters such as product time delay and label dispensing speed.

Machine Dimensions:

Length: 32-15/16" (837mm)
Width: 12-1/16" (306mm)
Height: 19-9/16" (497mm)
Weight: 60 lbs (27 kg)

No air requirement for operation.

Label Dimensions:

Width: 1/4" - 5" (6.35mm - 127mm)
Length: 3/4" - 6" (19.05mm - 152.4mm)

Maximum label dispense speed up to 1200" per minute, depending on label size, weight, and dispensing orientation.

Label Roll Requirements:

Finish: pressure sensitive die cut with 1/8" (3.17mm) gap.
Balanced feed design ensures consistent label tension and reduces web breakage.
Outside diameter: 12" (304.8mm)
Core diameter: 3" (76.2mm), Optional 4" (101.6mm) and 6" (152.4mm).

Features low label sensor and a non-cantilevered dual-frame design that eliminates web drift.

Operates on electric power, compatible with 115 - 230 Volt, 50/60 Cycle, 5 Amps.
