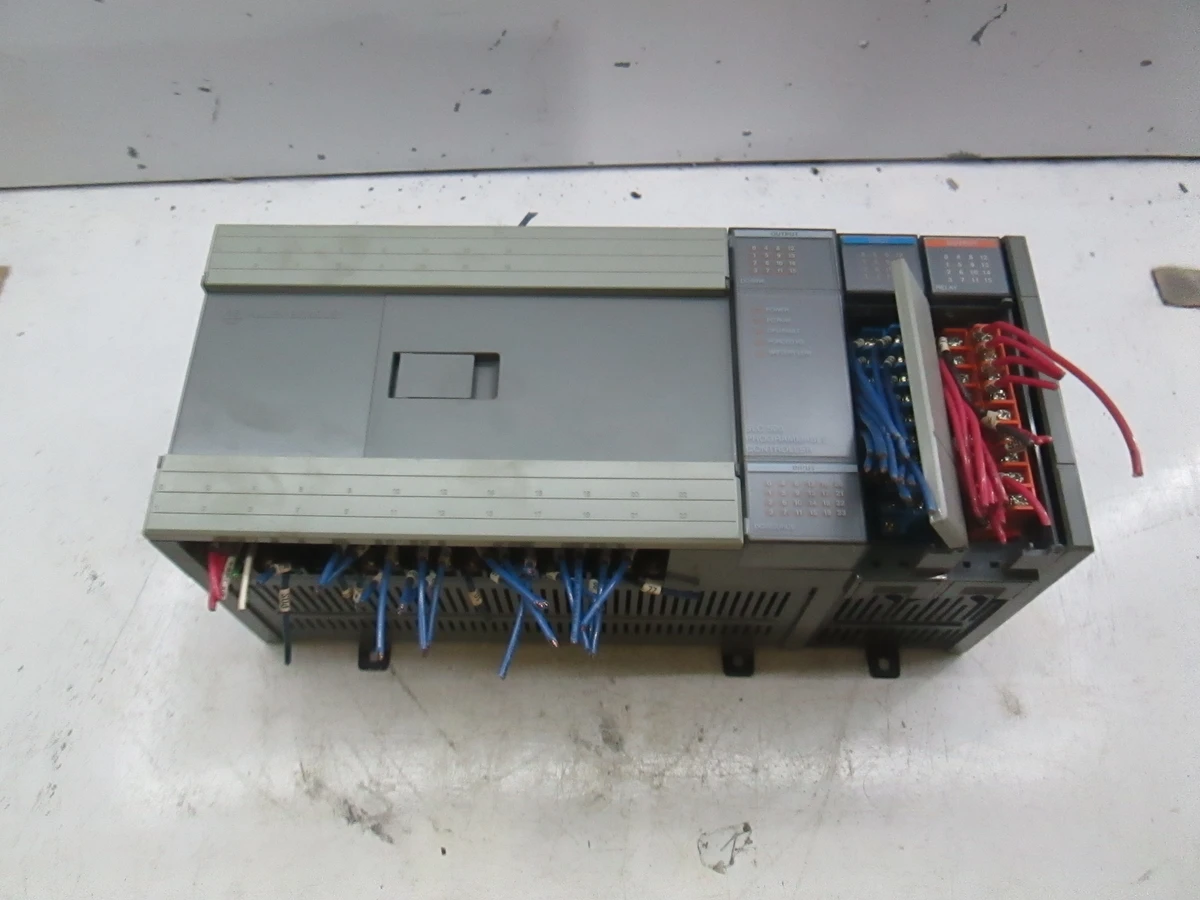

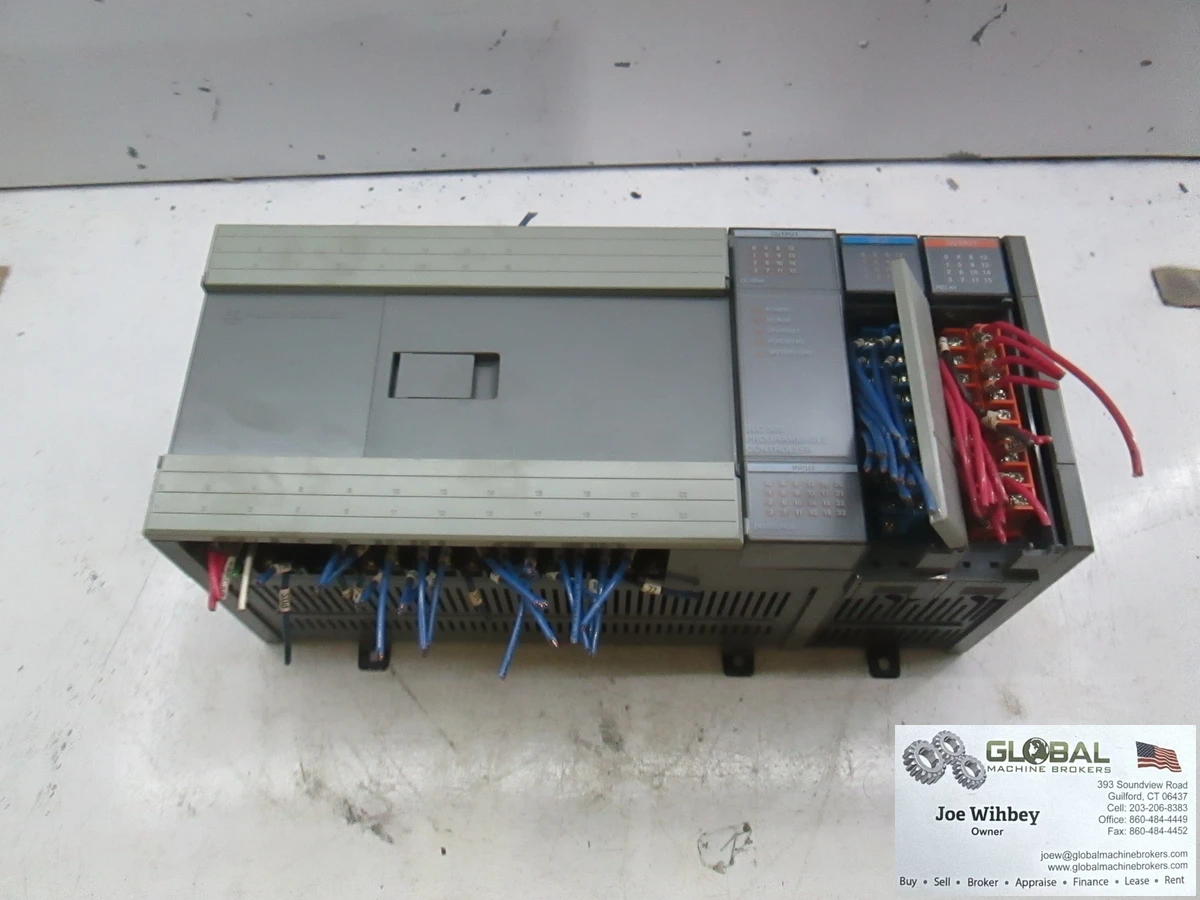

ALLEN BRADLEY SLC-500 1747-L40L Processor Unit
Have one to sell?
$450.00 USD
ConditionUsed
1 available
Make: Allen Bradley
Model: 1747-L40L
Series: SLC-500
Condition: Used, Overall In Great Shape
Processor Unit Information:
Manufacturer: Allen-Bradley/Rockwell Automation
Catalog Number: 1747-L40L
Series: SLC 500
Design and Features:
Control Systems Hardware
Uses #14 AWG wire
LED Indicators for Fault States, Battery Status, and PC Connection
Tolerates Moderate Vibration (Complies with Industrial Standards)
Noise Immunity: NEMA ICS 2-230 Standards
Electrical Specifications:
Isolation Voltage: 1500 Volts AC (1 minute)
Certification: UL and CSA Standards
Controller Inputs:
24 DC Sink Inputs
On-state Voltage: 10-30 Volts DC
Off-state Voltage: 5 Volts DC (Except Input 0: 4 Volts DC)
Nominal Input Current: 20mA at 24 Volts DC (Input 0), 8mA at 24 Volts DC (Other Inputs)
Switching Time: 8 milliseconds (On/Off)
Maximum Off-state Current: 1mA
Controller Outputs:
16 AC/DC Relay Outputs
Turn-on/Turn-off Times: 10 milliseconds
Maximum Load per Chassis: 1440 Volt-Amps
Maximum Off-state Leakage Current: 0mA
Minimum Load Current: 10mA at 5 Volts DC
Power Requirements:
Line Power Rating: 120/240 Volts AC
Memory Capacity:
Program Memory Capacity: 1K Instructions
Memory:
Type: Capacitor-backed RAM
Backup Options: EEPROM or UVPROM
Program Memory:
Capacity: 1K Instructions
Typical Scan Time: 8 milliseconds per 1K instructions
Power Information:
Watts per Point: 0.2 Watts
Minimum Watts: 19.9 Watts
Maximum Watts: 27 Watts
Line Power: 120/240 Volts AC
Power Supply Inrush Current Rating: 30 Amps maximum
Inputs:
(24) 24 Volts DC Sink Inputs
Outputs:
16 AC/DC Relay Outputs
