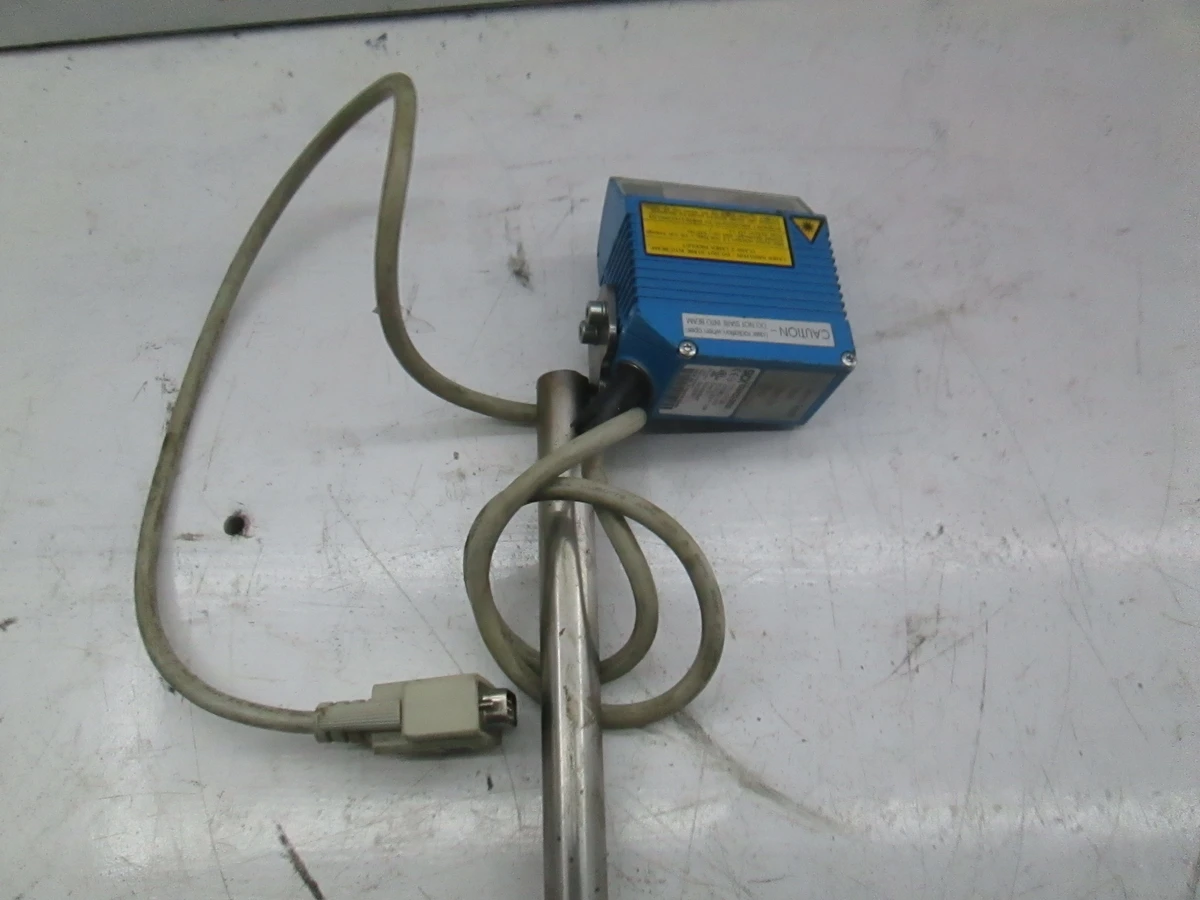

SICK CLV422-2010 Bar Code Scanner, High Density
Have one to sell?
$180.00 USD
ConditionUsed
1 available
Make: SICK
Model: CLV422-2010
Serial No: 0813 0003
P/N: 1 022 620
Condition: Used, Overall In Great Shape
Made In Germany
High Density Bar Code Line Scanner, Fixed Mount barcode
Mounting Rod Does Not Come with it
FEATURES-
Version: High Density
Connection Type: Standard
Reading Field: Slide (105°)
Scanner Design: Line Scanner
Focus: Fixed Focus
Light Source: Visible Red Light
MTBF: 20,000 h
Laser Class 2
Aperture angle: ≤ 50°
Scanning Frequency: 400hz ... 1200 hz
Code Resolution: 0.15mm ... 0.5mm
Reading distance: 55mm .. 200mm
PERFORMANCE-
Bar Code: All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode
Print Ratio: 2:1 ... 3:1
No. of Codes Per Scan: 1 ... 3
No. of Codes Per Reading interval: 1...10 (auto-discriminating)
No. of Characters Per Reading Interval: 100
No. Of Multiple Readings: 1 ... 99
Asset In Stock And Available immediately
Interfaces:
Serial: RS-232, RS-422/-485 (300 Baud to 57,600 Baud)
AUX: RS-232 (9,600 baud)
Ethernet: Optional via external module
CAN Bus: 20 kbit/s to 1 Mbit/s (CANopen, CSN)
PROFIBUS DP: Optional via external module
DeviceNet: Optional via external module
Functions:
Host & AUX functions
SICK CAN sensor network: Master/Slave, Multiplexer
Switching inputs: 2 ("Sensor 1", "Sensor 2")
Switching outputs: 2 ("Result 1", "Result 2")
Mechanics/Electronics:
Electrical:
15-pin D-Sub HD male connector (0.9 m)
Voltage: 10 V DC to 30 V DC
Power: 3.5 W
Housing: Die-cast zinc, paint-wetting-impairment-free
Enclosure: IP 65
Protection: Class III (VDE 0106, IEC 1010-1)
Weight & Dimensions: 320 g, 72 mm x 62.7 mm x 35.2 mm
UL Certification: Class 2 mains supply (UL 1310)
More Infor Here: https://www.sick.com/us/en/p/p96261
