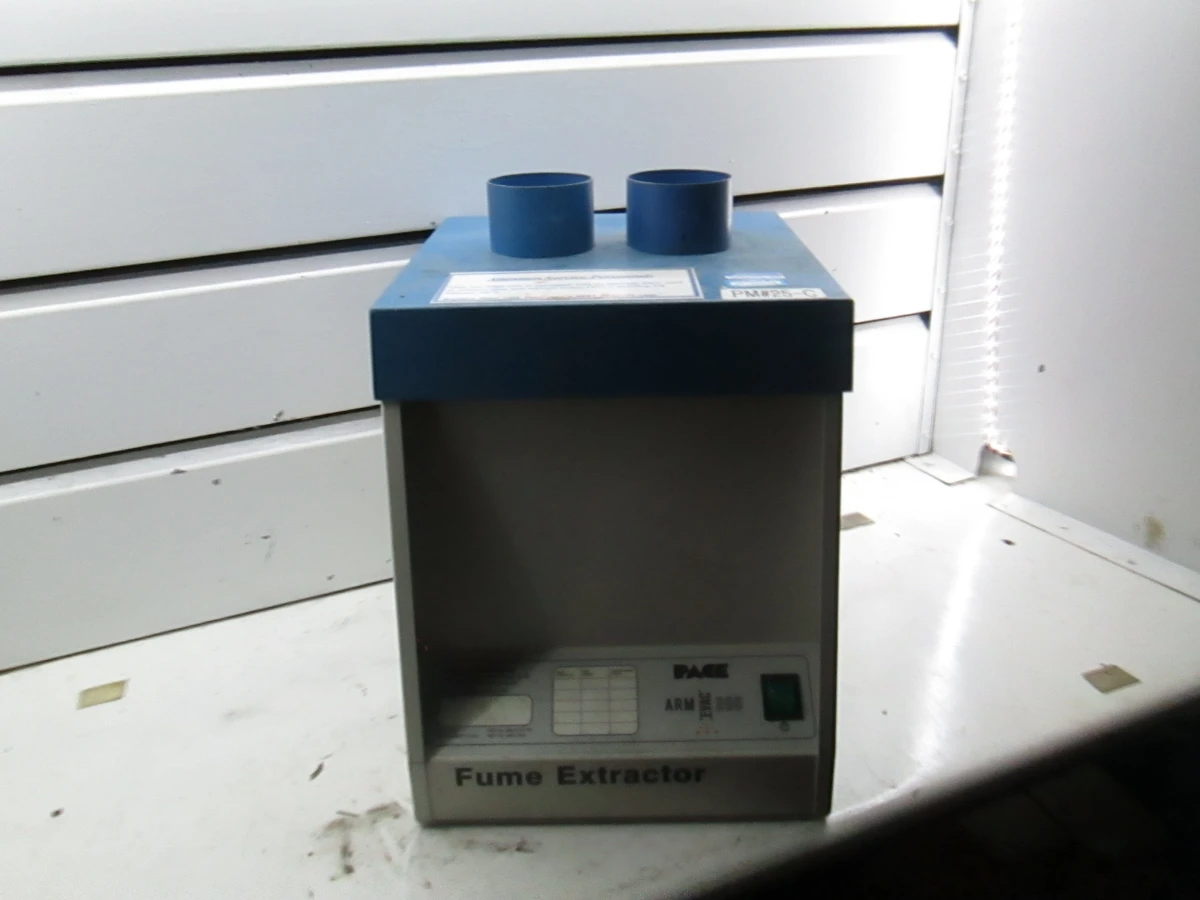

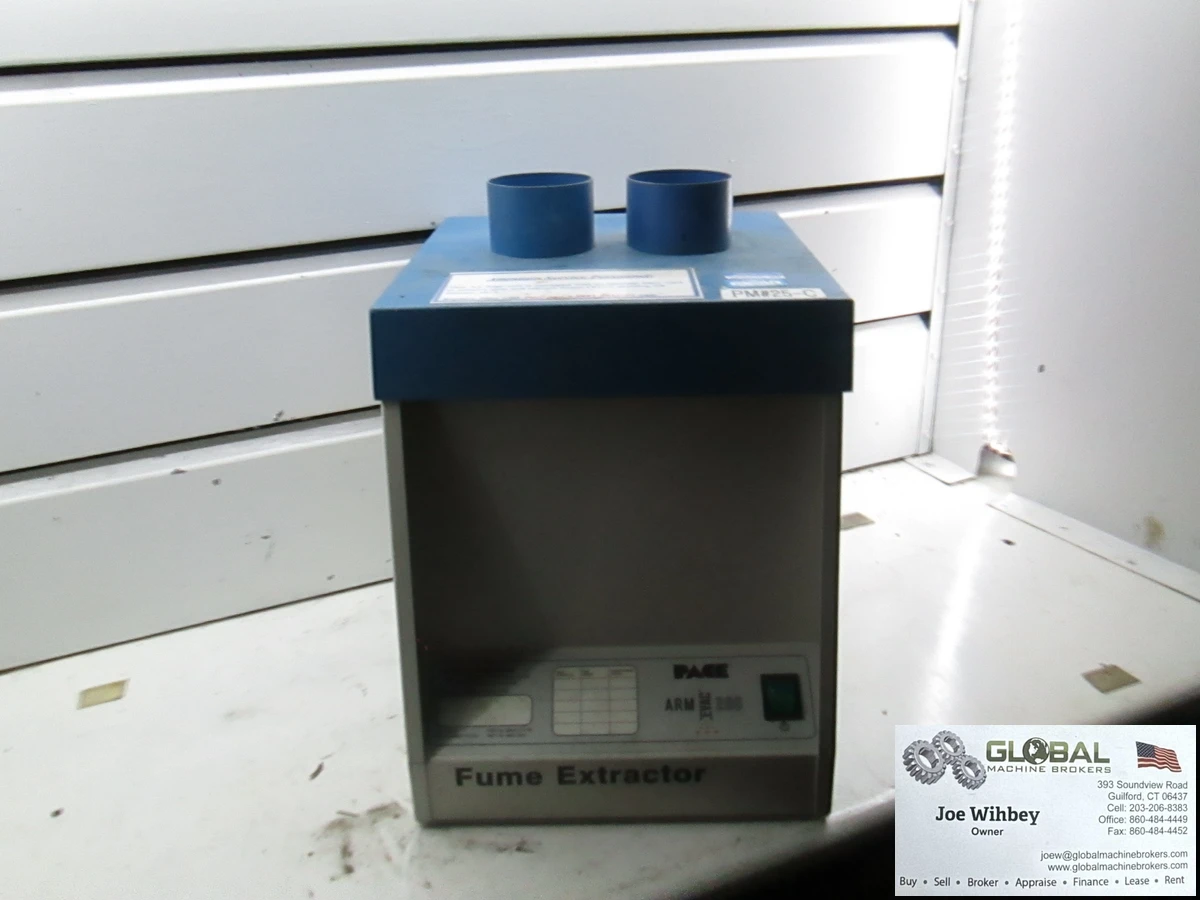

Pace Arm-Evac 200 Heavy Duty Dual Inlet Fume Extractor
Have one to sell?
$875.00 USD
ConditionUsed
1 available
Make: Pace
Model: Arm-Evac 200
Serial No: 8889-0205
Condition: Used, Overall in Great Shape, Filters Look Clean
Power button is stuck on, you have to plug /unplug to turn on and off
-Dual Inlet Fume Extractor
-Designed to Extract Fumes from one or two work stations
-Flow Rate With Standard filter - 170 CFM when using one inlet, 100 CFM when using both
-Flow Rate with clean room filter - 150 CFM when using one inlet, 80 CFM when using both
-Includes pre-filter, general purpose combo filter and power cord.
Fume Extraction System:
The Arm-Evac 200 is designed to meet the needs of light-duty production as well as rework and repair operations. Lightweight and compact, the Arm-Evac 200 installs in minutes.
Why is fume extraction needed?:
Where manual soldering is being performed or where solder-pots/fountains are utilized, hazardous fumes are produced and workers need to be protected from them.
PDF Manual: https://res.cloudinary.com/iwh/image/upload/q_auto,g_center/assets/1/26/Pace_Arm-Evac_200_250_Manual.pdf
Asset In Stock And Available Immediately
Power Requirements: 115 VAC, 60 Hz
Dimensions: 393mm (15.4") H x 282mm (11.1") W x 365mm (14.3") D
Weight: 13.75 Kg (30.25 lbs)
Noise Level: 58 dBA
Number of Inlets: Two 75mm (3")
Flow Rate: General Purpose Filter Single Inlet: 288m3/h (170 cfm); Dual Inlet: 170m3/h (100 cfm) per inlet
Flow Rate: Cleanroom Filter Single Inlet: 255m3/h (150 cfm); Dual Inlet: 135m3/h (80 cfm) per inlet
Number of Collection Accessories: Up to four 45mm (1.75"), Up to four 75mm (3")
Maximum Duct Run: 5m (16') per inlet
